Breakout Cable, MTP® Elite/APC to LC Duplex, OS2 Singlemode 9/125 Micron, 8 Fiber, 2.5 Meter

Sale
click to zoom in

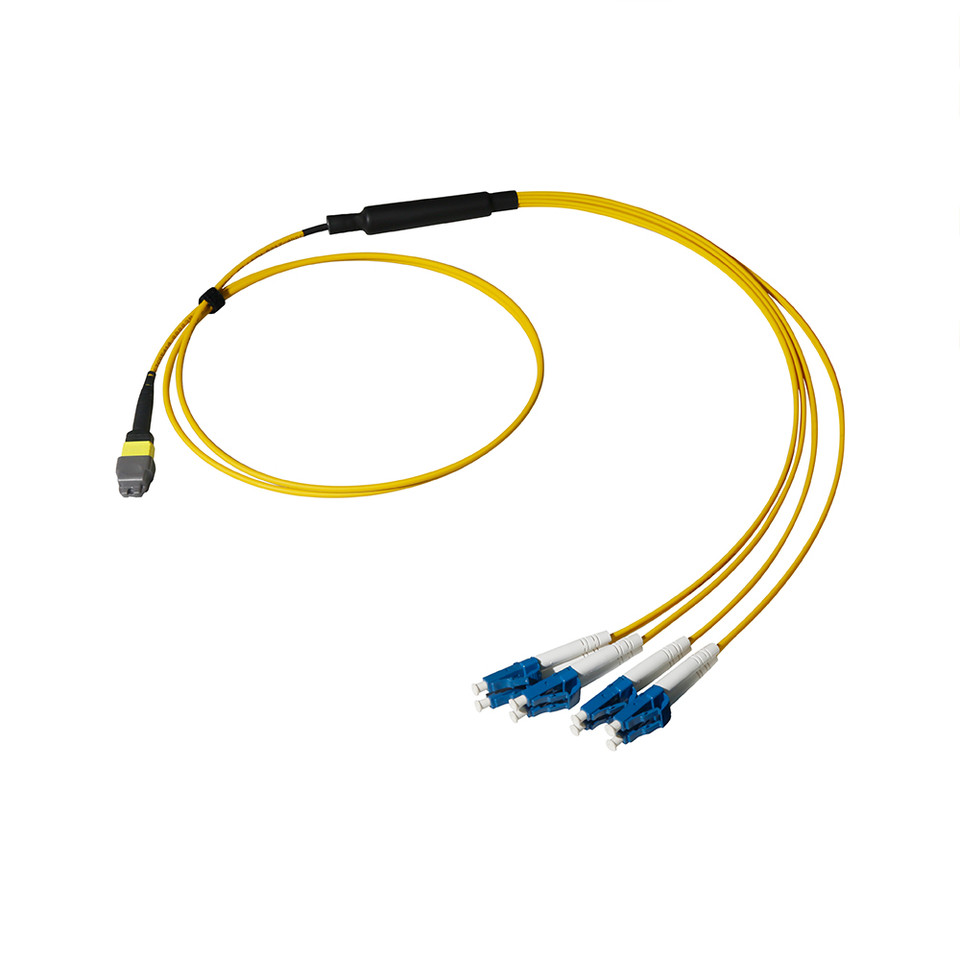

MTP® Elite/APC to LC Duplex, OS2 Singlemode 9/125 Micron, 8 Fiber

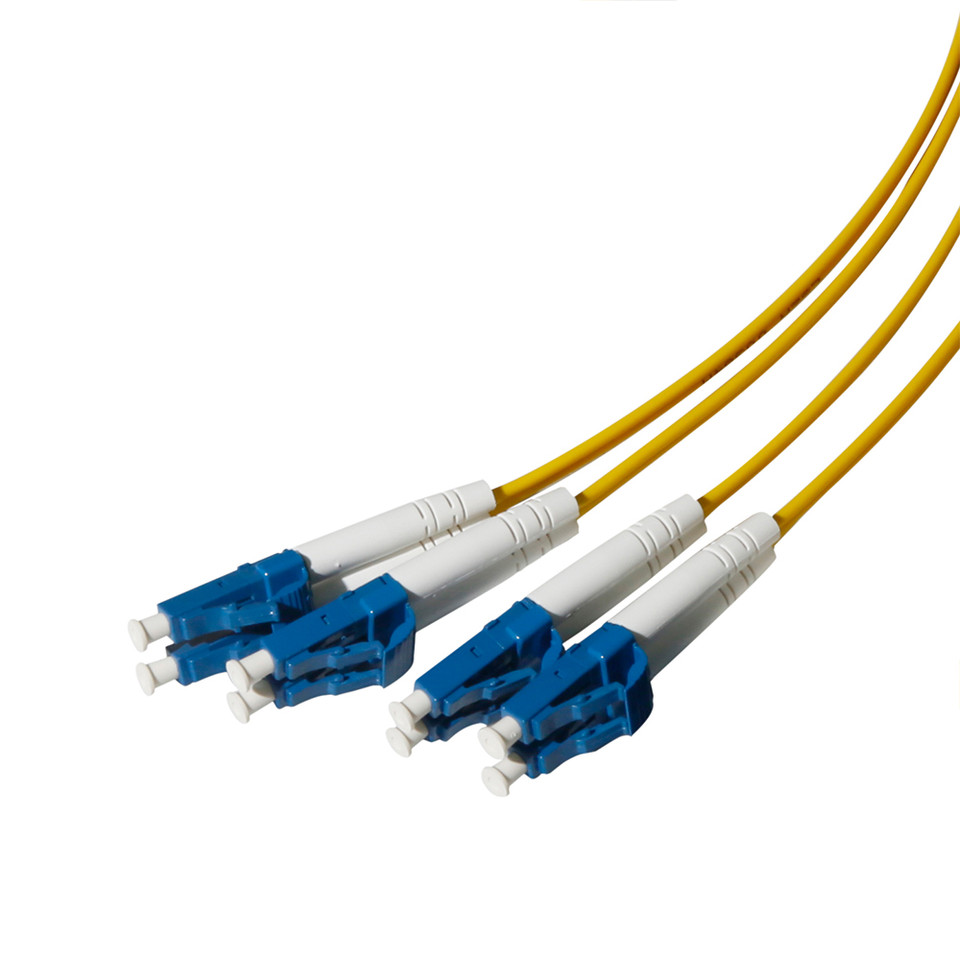

MTP® Elite/APC to LC Duplex, OS2 Singlemode 9/125 Micron, 8 Fiber, view 4

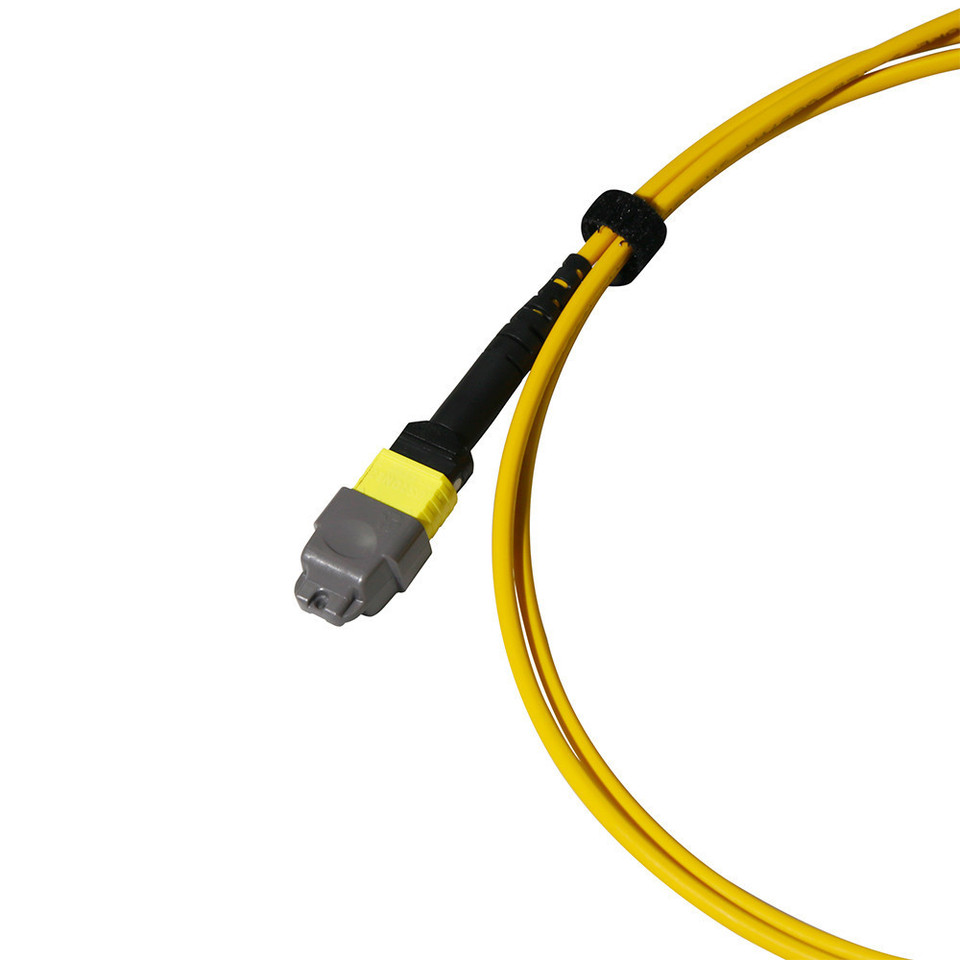

MTP® Elite/APC to LC Duplex, OS2 Singlemode 9/125 Micron, 8 Fiber, view 4
Breakout Cable, MTP® Elite/APC to LC Duplex, OS2 Singlemode 9/125 Micron, 8 Fiber, view 3
Breakout Cable, MTP® Elite/APC to LC Duplex, OS2 Singlemode 9/125 Micron, 8 Fiber, spectrum
Breakout Cable, MTP® Elite/APC to LC Duplex, OS2 Singlemode 9/125 Micron, 8 Fiber, RoHS logo

Breakout Cable, MTP® Elite/APC to LC Duplex, OS2 Singlemode 9/125 Micron, 8 Fiber, 2.5 Meter

Item#:
MTF-LCD-08-OS2-2.5MB
List Price: $37.07
$33.50
$33.25
(You save $3.82 )
Condition:
New
Availability:
Currently In Stock
Weight:
0.25 LBS
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 5 - 9 and get 3% off
  • Buy 10 - 24 and get 5% off
  • Buy 25 - 49 and get 7% off
  • Buy 50 - 99 and get 10% off
  • Buy 100 - 199 and get 12% off
  • Buy 200 or above and get 15% off
Customer Service

Need Help?

Speak to one of our experts.

Phone Icon

804-716-9007

MTP® Elite/APC to LC Duplex, OS2 Singlemode 9/125 Micron, 8 Fiber

Breakout Cable, MTP® Elite/APC to LC Duplex, OS2 Singlemode 9/125 Micron, 8 Fiber, 2.5 Meter

List Price: $37.07
$33.50
$33.25
(You save $3.82 )
Description

Fiber Cable, MTP Elite®/APC (Female) - LC/UPC Duplex, 8 Fiber, Single Mode G657A1 Corning Glass, ONFP Plenum Rated Jacket, Yellow, Type B, 2.5 Meters, 24 in B/O

MTP® Connectors

US Conec offers a full suite of MTP Elite® brand MPO connectors and solutions for a variety of applications and operating environments. The MTP Elite® connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.

LC/UPC Duplex Connector

LC Duplex connector in a connector for duplex applications.

Precision Optical Components

At the heart of every fiber to fiber and fiber to device interconnect is a precision optical interconnect component.  US Conec is dedicated to driving the next generation of optical links from source to detector by utilizing state of the art precision component design, metrology and manufacturing to produce low loss, cost effective ferrules and optical components optimized with the entire link in mind.  Sub-micron component modeling, design, production, measurement and testing are at the heart of US Conec’s engineering focused approach to solving real world communication problems every day.

Precision optical interconnect solutions include:

  • Low-loss, MT Elite® multi-fiber ferrules
  • LC Uniboot ferrules
  • FTTx hardened connector cabling infrastructure
  • MTP® brand MPO cable assemblies
  • Optical backplane connectivity for OBO architectures
  • Standards Compliance IEC 61754-5
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5

Specifications

  • Simplex 3.0mm cable
  • 9/125um OS2 Corning G657A1 Glass
  • Plenum-Rated OFNP Yellow Jacket
  • 8-Fiber count
  • Nominal Diameter: 3.0mm
  • 40G DR4 (4X10G) 8 Fiber
  • 40G FR4 2-10 Kilometer (4X10G) 8 Fiber
  • 40G LR4 10-20 Kilometer (4X10G) 8 Fiber
  • 40G ER4 40 Kilometer (4X10G) 8 Fiber
  • 100G DR4 (4X25G) 8 Fiber
  • 100G FR4 2-10 Kilometer (4X25G) 8 Fiber
  • 100G LR4 10-20 Kilometer (4X25G) 8 Fiber
  • 100G ER4 40 Kilometer (4X25G) 8 Fiber
  • 200G DR4 500 Meter (4X100G) 8 Fiber
  • 200G FR4 2-10 Kilometer (4X100G) 8 Fiber
  • 200G LR4 10-20 Kilometer (4X100G) 8 Fiber
  • 200G ER4 40 Kilometer (4X100G) 8 Fiber
  • 400G DR4 (4X100G) 8 Fiber
  • 400G FR4 2-10 Kilometer (4X100G) 8 Fiber
  • 400G LR4 10-20 Kilometer (4X100G) 8 Fiber
  • 400G ER4 40 Kilometer (4X100G) 8 Fiber
  • Bend Radius: 1.8in (Installation), 1.2in (Long-term)

Connector Side A
 MTP/APC Elite Low Loss 8 Fiber Connector Side B

(4) LC Duplex
Ferrule Type Side A

Ferrule Type Side B

Insertion Loss Maximum Side A
 ≤0.35dB Insertion Loss Maximum Side B
 ≤0.20dB
Insertion Loss Typical
 0.10dB Insertion Loss Typical
 0.08dB
Return Loss ≥60dB Return Loss ≥60dB
===============
 ==================== ==================
 ==================
Cable Type
 OS2 9/125μm Wavelength 1310/1550nm
Fiber Count 8 Fiber Grade G.657.A1 (Compatible with G.652.D)
Polarity Type A, B & C available Cable Outer Diameter 3.0mm
Cable Jacket OFNP Plenum Sub Unit Outer Diameter N/A
Bend Radius, No Load
 10x cable overall diameter Bend Radius, Load
 15x cable overall diameter
===============
 ==================== ==================
 ==================
Wavelength
 1 Gb Distance Max.
 Wavelength
 10 Gb Distance Max.
1310nm > 25,000 Meters 1310nm 10,000 - 25,000 Meters
1550nm > 40,000 Meters 1550nm 40,000 Meters
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)
