Why MIL-DTL-38999 Series III is the Standard for Mission-Critical Fiber Applications

The MIL-DTL-38999 Series III specification governs the design, performance, and testing criteria for the D38999 family of circular connectors. From tactical military to naval shipboard and modern aerospace systems, D38999 connectors serve as the benchmark interface for mission-critical fiber applications. Let’s find out why.

What is MIL-DTL-38999?

MIL-DTL-38999 is a connector specification dating back to the post-World War I era. During this period, the avionics industry required an enhanced circular connector that could handle power distribution and signal transmission while withstanding the rigors of emerging twin- and four-engine aircraft platforms built for commercial and military aviation. This requirement led to the development of the heavy-duty circular MIL-DTL-5015 connector, which served as the standard interface for tactical defense and aerospace applications through the 1950s and 60s.

As defense and aerospace systems advanced, modern avionics demanded smaller, lighter, higher-density, and more durable connectors than the 5015 platform could provide. In response, the MIL-DTL-38999 specification was established. Compared to the D5015, D38999 connectors are 30 to 50% lighter and smaller, deliver significantly higher density, feature more advanced keying to prevent accidental disconnects and mismating, and provide better ingress protection and resistance to electromagnetic interference (EMI).

Between the late 1960s and the late 1980s, the MIL-DTL-38999 specification standardized four distinct series to solve specific mechanical, density, and environmental challenges.

• Series I: Standard bayonet connectors featuring a quick 1/3-turn coupling and a “scoop-proof” shell design, where the outer shell extends past the internal pins to prevent contact damage during blind or rapid mating.
• Series II: Compact bayonet connector engineered as a lighter, lower-profile alternative to Series I. They omit the scoop-proof design to save weight and space in tight environments where size takes precedence over pin protection.
• Series III: Regarded as the industry standard, Series III connectors use a rapid self-locking, 360-degree triple-start (tri-start) threaded coupling alongside a scoop-proof shell design, providing maximum resistance to vibration, shock, and environmental conditions.
• Series IV: Developed for specialized blind-mating scenarios where connectors cannot be visually inspected, Series IV incorporates a quick, secure ¼-turn breech-lock coupling mechanism with positive locking confirmation.

Why is MIL-DTL-38999 Series III the Gold Standard?

Series III D38999 connectors represent the most widely used circular interface across military, defense, maritime, and aerospace systems. They merge the scoop-proof design of Series I with the compact profile of Series II, while significantly boosting resistance to vibration, EMI, and harsh environmental conditions through several key features:

• Tri-Start Thread: Unlike the quick-turn bayonet styles of Series I and II that can loosen under sustained high vibration, Series III connectors feature three separate parallel entry points (starts). This prevents cross-threading and achieves a fully secure locked engagement around the entire shell in a single 360-degree turn.
• EMI Resistance: Series III connectors incorporate a grounding spring and metal-to-metal shell bottoming, ensuring maximum 360-degree shielding against any external EMI.
• Superior Environmental Protection: Beyond the full scoop-proof design that prevents any bending or damage to pins during blind mating, Series III connectors operate reliably up to 200°C and feature an internal silicone seal with IP68-rated ingress protection to keep out dust, liquids, and moisture.

Series III D38999 connectors are manufactured in shell sizes ranging from 9 to 25, with more than 50 military-approved insert arrangements. They are available in wall-mount receptacles, jam nut receptacles, and plugs. Shell materials include aluminum, stainless steel composite, titanium, and marine bronze, paired with finishes such as cadmium/olive drab, nickel, and zinc-nickel.

Why is Series III the Preferred Choice for Fiber Optics?

Although the MIL-DTL-38999 platform was originally conceived for copper contacts, its rugged mechanical architecture makes it an ideal enclosure for fiber optics. Fiber-optic variants combine the MIL-DTL-38999 Series III outer shell design with precision ferrule technology used in modern multi-fiber networking applications.

Series III is particularly well-suited for optical connections for several reasons. The Series III connector's exceptionally durable tri-start threading eliminates movement and applies constant force to maintain optical core-to-core alignment between fiber endfaces—even during extreme vibration. This prevents air gaps and misalignment that can cause insertion loss and signal interruption. The IP67/68-rated seal prevents moisture and airborne dust from contaminating fiber endfaces, while the scoop-proof shell prevents damage to optical endfaces and alignment pins during mating.

While glass fiber is inherently immune to EMI, fiber optic D38999 connectors frequently terminate at electro-optical transceivers that convert light pulses into electrical signals. The Series III design's 360-degree metal-to-metal coupling and grounding spring protect internal electronics from interference in these setups.

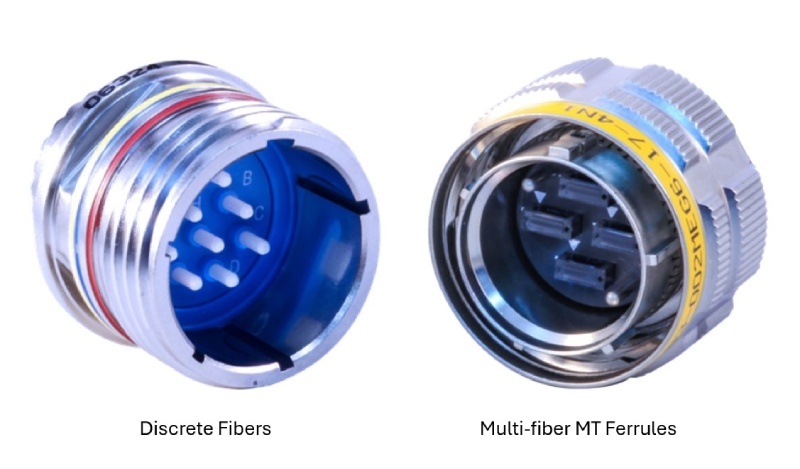

The various Series III shell sizes accommodate diverse fiber layouts, supporting up to 37 discrete singlemode or multimode fiber endfaces. Alternatively, shells can house up to four multi-fiber MT ferrules (containing 12, 24, or 48 fibers each) in MT38999 configurations, achieving fiber counts up to 192 to meet the demand for higher data transmission speeds via parallel optics. Multi-fiber MT38999 connectors deliver superior performance and alignment through shell-to-shell keying, insert-to-insert matching, and MT guide pins.

As tactical military, aerospace, radar, and electronic warfare systems demand unprecedented data speeds, MIL-DTL-38999 Series III fiber connectors deliver without compromise. By pairing precision optical alignment with battle-tested mechanical endurance, vibration resistance, and ingress protection, they bridge the gap between high-bandwidth optical performance and survivability in mission-critical harsh environments.

The good news is that Cables Plus USA builds custom D38999 fiber cable assemblies that meet strict MIL-DTL-38999 Series III specifications for mission-critical fiber optic applications. Contact our team today to source custom MIL-DTL-38999 Series III fiber assemblies for your next mission-critical deployment.
