CAT5e RJ45 Keystone Jack for HD Style

Description

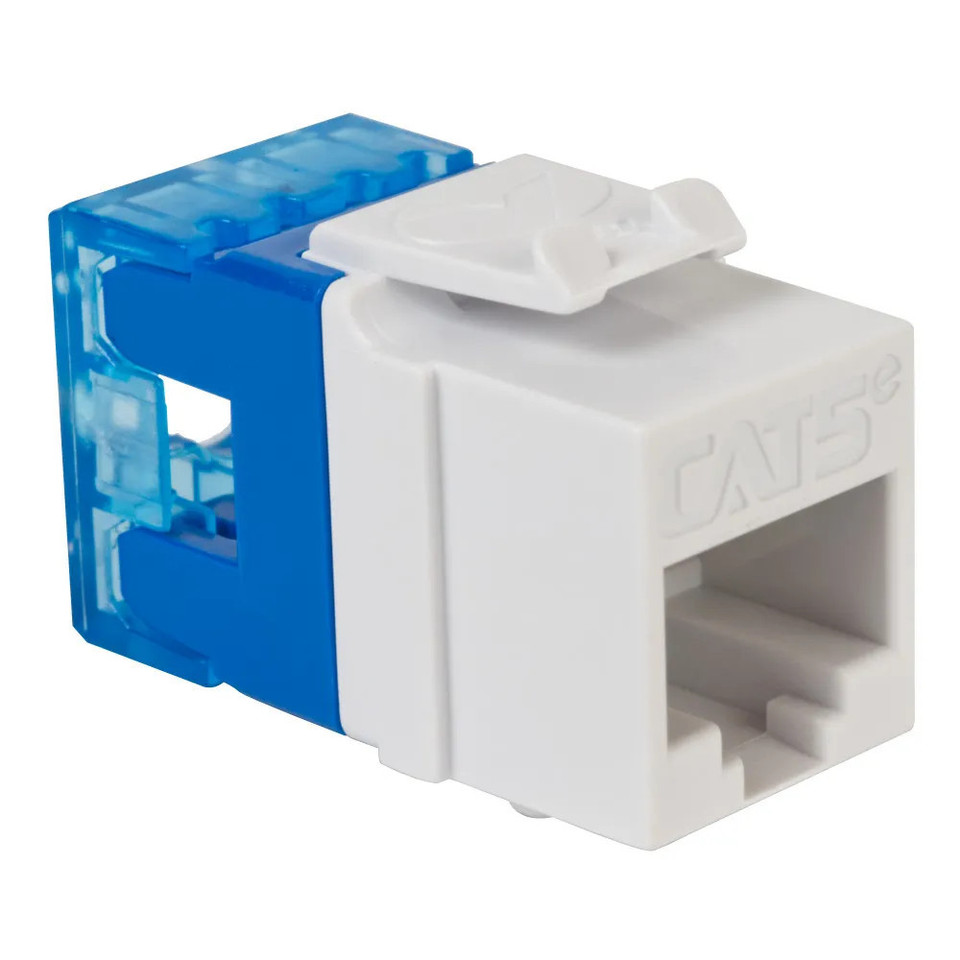

Category 5e High Density (HD) modular jacks, RJ-45 keystone jacks, is 8-position 8-conductor (8P8C) and is designed with a smaller rear footprint maximizing space utilization in confined work areas. It is engineered to provide superior performance and reliability, supporting up to Gigabit Ethernet applications. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA Category 5e performance standards.

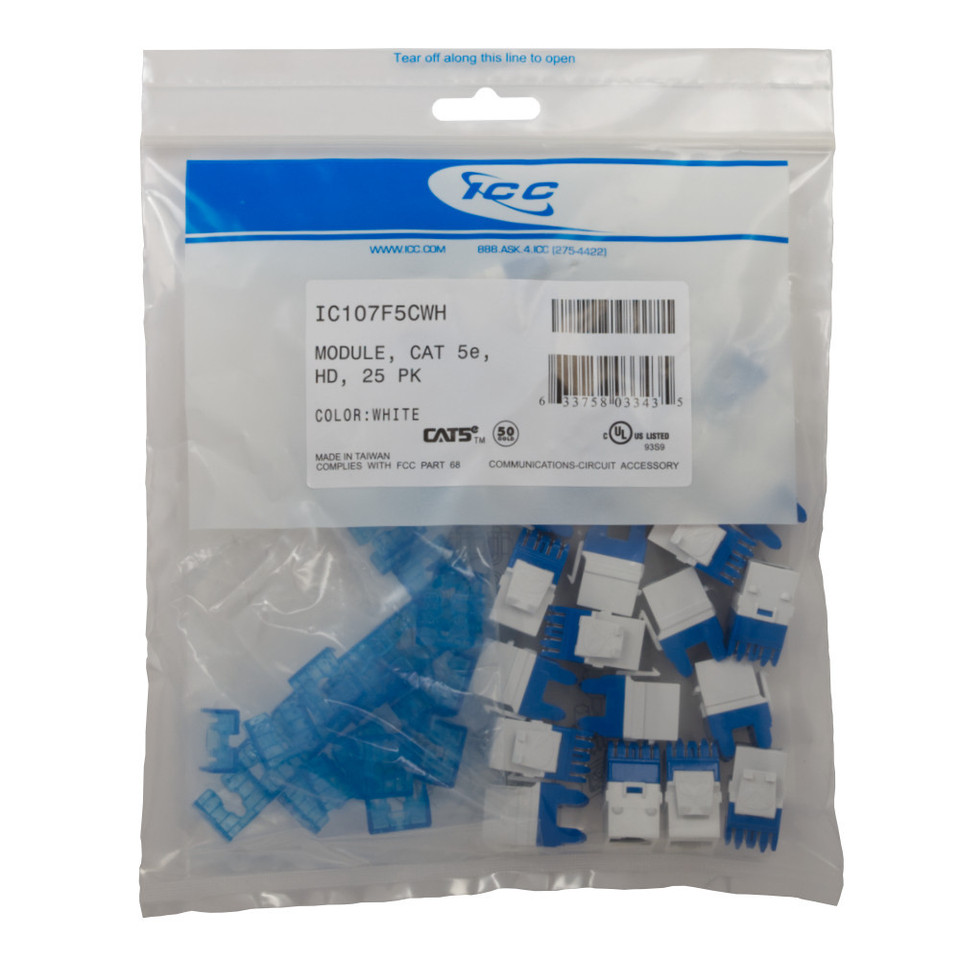

The 25-pack HD Category 5e modular connectors, RJ-45 keystone jacks are 8-position 8-conductor (8P8C) and are packaged in bags with a reseal able strip allowing the bags to be reused multiple times preventing loss or mixing of colors or types of connectors. The bags havea clear lower area allowing for easy part identification.

Product Features

• CAT 5e rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
• PCB technology provides maximum performance and superior signal quality
• Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
• Exceeds ANSI/TIA/EIA-568-B.2 Category 5e connecting hardware requirements
• Engineered to provide 110 IDC termination reducing installation time
• One piece termination cap allows for a quick and easy termination
• Includes an integrated TIA-568A/B color wiring diagram
• Backwards compatible to all lower rated category components
• Compatible with all IC107 faceplates, inserts, surface mount boxes and blank patch panels
• Compatible with all IC108 furniture faceplates, bezels and surface mount boxes
• Used with ICC Category 5e ICPCS5 and ICPCS9 series patch cords and 110 punch down tool ICACSPDT00
• Available in blue, ivory, orange, red and white
• 25 modules packaged in packaging bag with 25 termination caps packaged in a separated bag and included in packaging bag
• Installation instructions #MSR-0399-2 included in packaging bag

Specifications

Cat 5e Module:

• Electrical:
• Current Rating: 1.5 Amps
• Insulation Resistance: 500 Mohms Min
• Contact Resistance: 20 Mohms Max
• DC Resistance: 0.1 Ohm Max
• Transmission Performance Exceeds Category 5e
• Connecting Hardware Requirements Specified In Tia/Eia-568-b.2 When Used With Compatible Horizontal Cable

• Mechanical:
• Plug Insertion Life: 750 Cycles Min
• Plug Jack Contact Force: 100 Grams Min Using Fcc Approved Plug
• Plug Retention Force: 30 Lbs Min
• Temperature: -40° To 150° F (-40° To 68° C)
• Physicals:
• Housing: ABS, UL 94V-0
• Jack Wiring: 50 Micro Inches Of Gold Over 100 Inches Of Nickel
• Connector: Insulation Displacement Connector (IDC)
• Accepts 22~24 Awg Solid Wire
• Colors: XX: BK-Black, BL-Blue, IV-Ivory, OR-Orange, RD-Red and WH-White

Termination Cap:

• Material: PC, UL 94V-0
• Color: Light Blue
