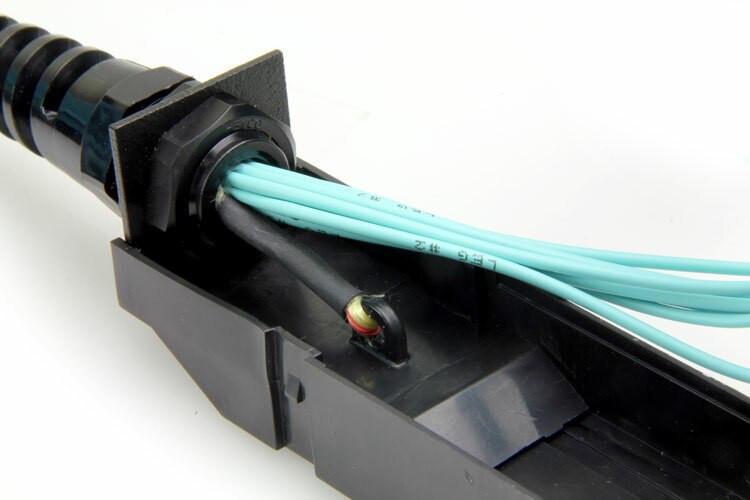

HD8² HDReadyLink®, 72 Strand, Multimode 50/125um OM3, Cassette to Cassette, 6-Port MTP®/UPC Elite 12 Fiber Male to 6-Port MTP®/UPC Elite 12 Fiber Male, Rollover (Type B), With integrated HDReadyPull® Pulling Eye

Our HD8² High Density Fiber Optic Patching system is specifically designed for ease of installation and economy of space. The smaller square cassette utilized in our design, versus the typical flat wide cassette, lends itself to a smaller profile. The cassettes come with a snap on pulling eye cap. The pulling eye cap snaps onto the front of the cassette and acts as both a pulling eye and a cover to protect the internal connectors. This design simplifies the installation process of pre-terminated trunked cassettes and as a result can reduce dB loss by reducing the number of termination points throughout the cabling design. Older style designs are cumbersome and either do not allow for pre-termination or, if they are pre-terminated cassettes, they are too large to pull through existing infrastructure.

BENEFITS

• Reduced installation time with integrated pulling eye - 75-85% time savings
• Space savings of up to 100% per cassette over traditional MTP/MPO cassettes

TRUNK CABLE FEATURES

• Made in USA and TAA compliant
• REACH & RoHS 2 compliant
• MM OM1, OM2, OM3, OM4, OM5 & SM OS2
• Bend-insensitive optical fibers
• 250 micron loose tube design allows for higher fiber strand counts in a smaller overall diameter cable
• Flexible and easy to handle Lightweight, flexible aramid yarns enhance strength
• When necessary, colorcoded binders separate fiber strands into bundles of 12
• 100% interferometry reports
• 100% visual inspection reports
• Total link test testing and labeling available at additional cost

TRUNK CABLE JACKET & GLASS OPTIONS

• Yellow: OS2
• Orange: *OM1 & *OM2 (*MOQ and not available in BIF glass)
• Aqua: OM3, OM4, OM5
• Note: Erika Violet for OM4 and Lime Green OM5 is available MOQ and leadtime may apply

TRUNK CABLE APPLICATIONS

• Applications include: 10G, 40G, 100G and 400G Ethernet, fiber channel, video, security and automation

TRUNK CABLE STANDARDS

• TIA/EIA-568-C.3
• ISO/IEC 11801, 2nd edition
• Telcordia GR-409-CORE
• OS2 glass is compliant to ITU-T G.657.A1
