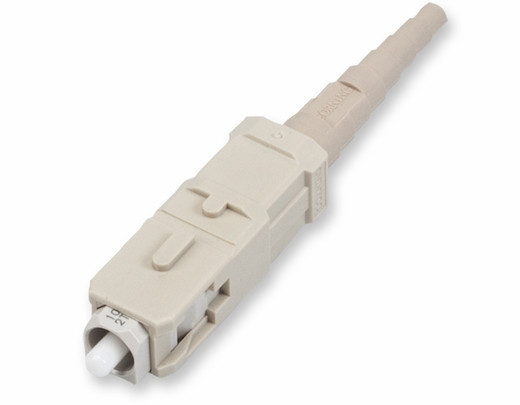

Corning UniCam® Fiber Optic Connector, SC Male, 62.5/125 Multimode, OM1, Ceramic Ferrule, High-Performance

The Corning UniCam® High-Performance Male SC Connector offers fast termination, high installation yields and no consumables means lowest installed cost. It has a factory-polished end-face for consistent optical performance and factory quality. This connector has been 100 percent factory tested for insertion loss, and boasts reliable, proven technology, with more than 40 million sold.

UniCam® High-Performance SC Connector Features:

• Installation of an SC Compatible Connector can be accomplished in about 45 seconds with the UniCam Pretium Tool Kit
• Installation is as easy as strip, clean, cleave, cam and crimp
• High-precision ceramic ferrule multimode connectors
• 0.1 dB typical/0.5 dB maximum insertion loss per connector pair for exceptional network performance

Specifications:

• Intermateability: FOCIS compliant with TIA/EIA 604-3 (SC);
• Qualification: Passed EIA/TIA 568-B.3
• Durability: 0.2 dB change, 500 rematings, FOTP-21
• Tensile Strength: 10 lb ≤ 0.2 dB change on jacketed cable; 0.5 lb ≤ 0.2 dB change on 900 μm cable; FOTP-6
• Operating Temperature: -40º to +75ºC, exceeding EIA/TIA 568-B.3
