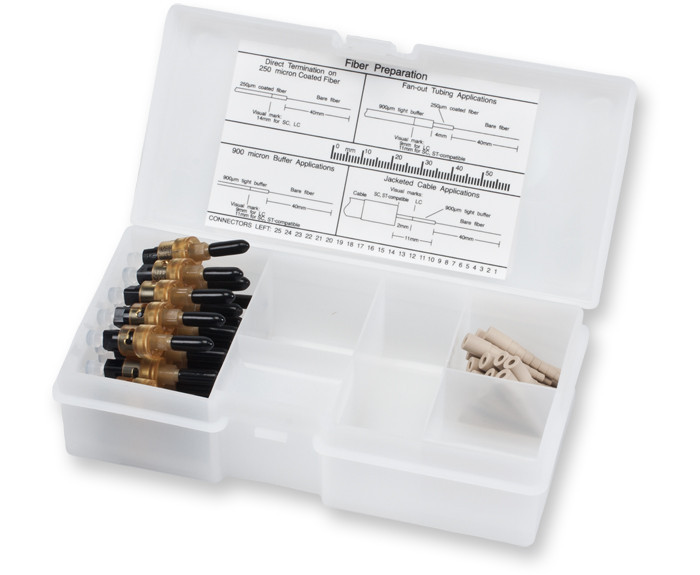

The Corning UniCam OM2 Multimode ST 25-piece Contractor Pack offers you a bulk option for when you need to terminate and install a multimode fiber optics system. A great low-loss option, this high-performance 25-pack will have your OM1 systems operating at full strength in almost no time at all.

The lightweight, hand-held installation tool and high-performance precision cleaver virtually eliminate human variability during installation, ensuring terminations are right the first time, every time. Every UniCam® Connector is assured to meet the published specification at the time of installation or Corning Cable Systems will replace it.

Organizer packs include 900 µm boots only.

UniCam® OM1 ST Contractor Pack Features:

• Amber housing with beige boot
• Field-installable for OM1 multimode systems
• Consistent optical performance
• Low installation cost
• 100 percent yield guarantee
• Factory-polished end face

Specifications:

• Approval and Listings: Passed EIA/TIA 568-B.3
• Intermateability: Connectors are FOCIS compliant with TIA/EIA 604-10A and IEC61754-20
• Technology: No-Epoxy/No-Polish
• Product Type: Field-Installable Connectors
• Packaging: Organizer Pack
• Fiber Category: 50 um MM (OM3/OM4 compatible)
• Operation: -40 deg C to 75 deg C exceeding EIA/TIA 568-B.3 (-40 deg F to 167 deg F exceeding EIA/TIA 568-B.3)
• Connector Type: LC
• Ferrule: Ceramic
• Housing Material: Composite
• Housing Color: Black
• Boot Color: Aqua
• Durability: ≤ 0.2 dB change by 500 rematings, FOTP-21
• Tensile Strength Jacketed Cable: 44 N, change ≤ 0.2 dB, FOTP-6 (10 lb, change ≤ 0.2 dB, FOTP-6)
• Tensile Strength 900u Cable: 2.2 N, change ≤ 0.2 dB, FOTP-6 (0.5 lb, change ≤ 0.2 dB, FOTP-6)
• Temperature Cycling: ≤ 0.3 dB IL, -40deg to +75deg C, 21 cycles
• Nominal Fiber Outer Diameter: 125 um
• Insertion Loss, Typical: 0.1 dB
• Insertion Loss, Max.: 0.5 dB
• Reflectance: ≤ -20 dB
• RoHS: Free of hazardous substances according to RoHS 2002/95/EG
