Corning’s UniCam high-performance connectors offer best-in-class optical performance in a fast, easy field-termination solution. These high-precision zirconia ceramic ferrule connectors provide an exceptional insertion loss - 0.2 dB typical/0.5 dB maxi mum per connector pair for multimode, 0.3 dB typical/0.5 dB maximum per connector pair for single-mode. Installation of an LC, SC or ST compatible connector can be accomplished in about 50 seconds to one minute with the UniCam high-performance tool kit .

The lightweight, hand-held installation tool and high-performance precision cleaver virtually eliminate human variability during installation, ensuring terminations are right the first time, every time. This kit was designed with consideration for ne twork installers from the intuitive, hand-held precision cleaver with dual-clamp arms, to the installation tool, with its immediate go/no-go feedback signal indicating proper mating of the field fiber to the fiber stub. Installation is as easy as strip , clean, cleave, cam and crimp with exceptional optical performance assured. Every UniCam connector is assured to meet the published specification at the time of installation or Corning will replace it.

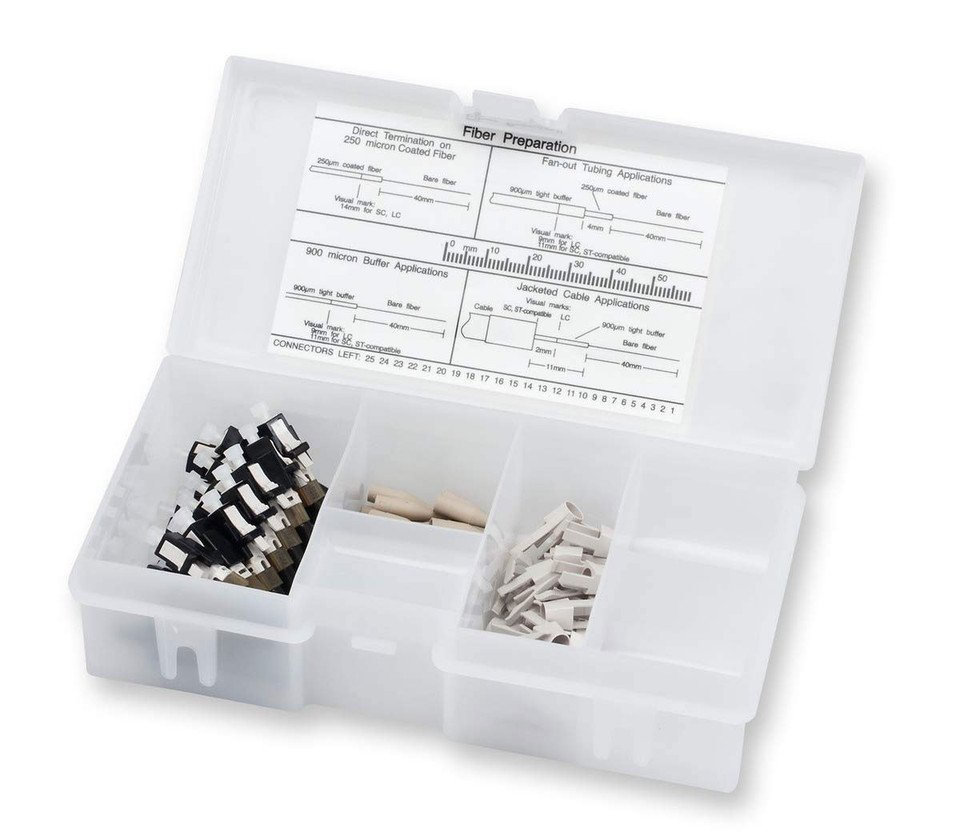

Organizer packs include 900 um boots only.

Features:

• Performance guaranteed
• 100 percent yield guarantee Broad operating temperature range (-40°C to +75°C)
• Utility and flexibility Factory-polished end face
• Consistent optical performance Fast termination and no consumables
• Low insta llation cost Minimum insertion loss
• Optimum optical performance

Specification Description
Passed EIA/TIA 568-B.3

Tech Info
Approval and Listings: Passed EIA/TIA 568-B.3; Intermateability: Connectors are FOCIS compliant with TIA/EIA 604-10A and IEC61754-20; Free of hazardous substances according to RoHS 2002/95/EG
