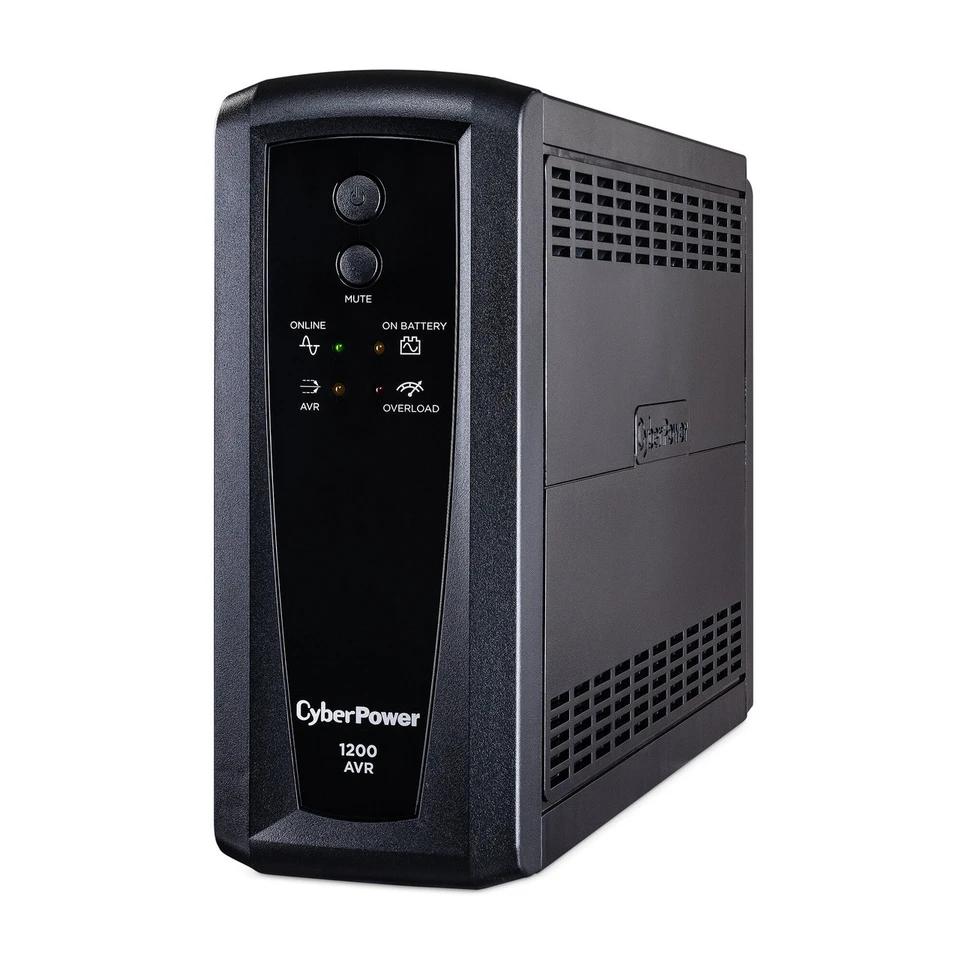

A mini-tower UPS with line interactive topology, the CyberPower AVR Series CP1200AVR provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP1200AVR delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to electronics. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1200AVR comes with a three-year warranty (including coverage of batteries) and a $375,000 Connected Equipment Guarantee.
UPS System, User Manual, USB A+B Type Cable
WARNING:
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm.
General | |
---|---|
Energy Saving | GreenPower UPS™ Bypass |
Energy Star Certified | Yes |
UPS Topology | Line Interactive |
Battery | |
Battery Quantity | 2 |
Battery Size | 12V/7Ah |
Battery Type | Sealed Lead-Acid |
Hot Swappable | Yes |
Replacement Battery Cartridge | RB1270X2C (for serial numbers that begin with "CT6" or "CDM") RB1280X2D (for serial numbers that begin with "CPD") |
Replacement Battery Cartridge Quantity | 1 |
Runtime at Full Load | 3 minutes |
Runtime at Half Load | 12 minutes |
Typical Recharge Time | 8 hours |
User Replaceable | Yes |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 34.8 x 24.89 x 9.91 (cm) |
Physical Dimensions – (WxHxD) (in) | 13.7 x 9.8 x 3.9 (in) |
Physical Dimensions – (WxHxD) (mm) | 348 x 249 x 99 (mm) |
Shipping Weight (lbs) | 23.6 |
Weight (kg) | 9.9 |
Weight (lb) | 21.83 |
Dimensions – Shipping | |
Shipping – Weight (kg) | 10.7 |
Shipping – Weight (lb) | 23.6 |
Shipping Dimensions – (WxHxD) (cm) | 18.42 x 34.29 x 43.69 (cm) |
Shipping Dimensions – (WxHxD) (in) | 7.25 x 13.5 x 17.2 (in) |
Shipping Dimensions – (WxHxD) (mm) | 184.15 x 342.9 x 436.88 (mm) |
Input | |
Cord Length (ft) | 6 ft |
Frequency Range | 60Hz ± 3 Hz |
Input Voltage Range | 88-144V |
Plug Style | Right Angle, 45° Offset Right |
Plug Type | NEMA 5-15P |
Output | |
Automatic Voltage Regulation | Yes |
On Battery Frequency | 60Hz ± 1% |
On Battery Voltage | 120 VAC ± 5% |
On Battery Waveform | Simulated Sine Wave |
Outlet Type | NEMA 5-15R |

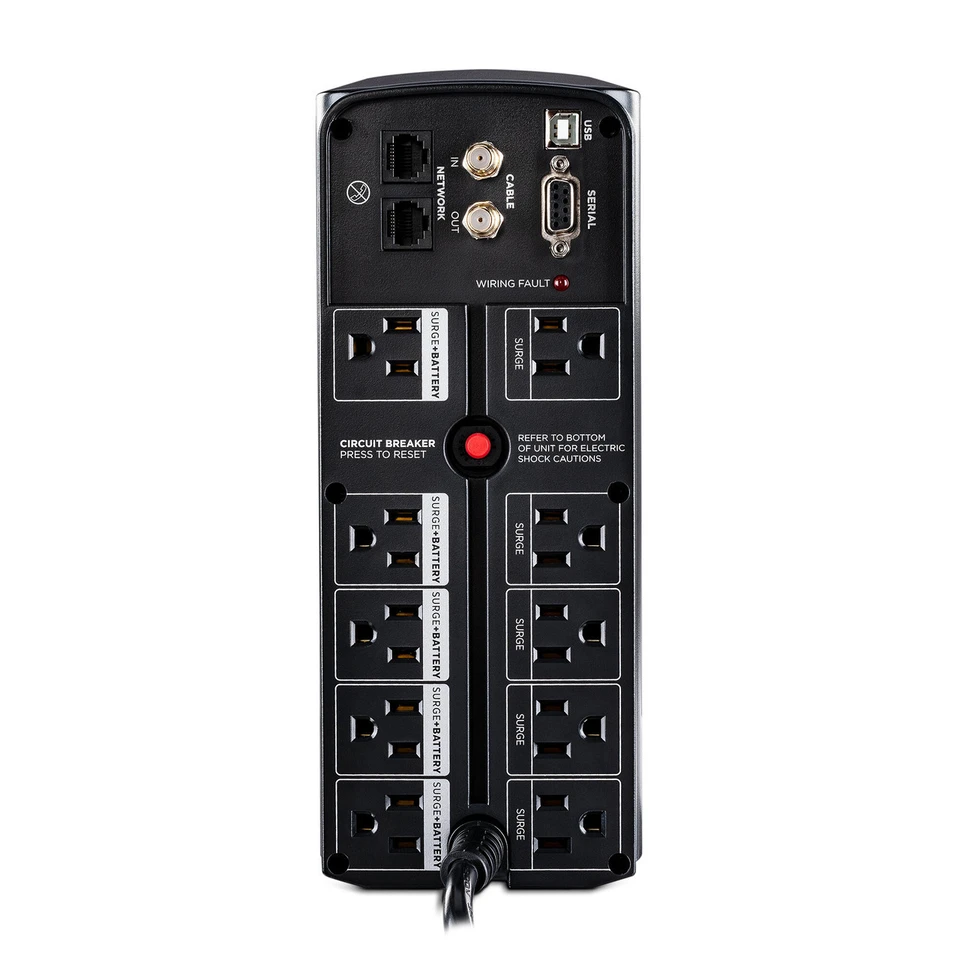

Outlets – Battery & Surge Protected | 5 |
Outlets – Surge-Only Protected | 5 |
Outlets – Total | 10 |
Outlets – Widely Spaced | 2 |
Overload Protection | Internal Circuitry Limiting, Circuit Breaker |
Transfer Time | Typical 8ms |
VA | 1200 |
Watts | 720 |
Surge Protection & Filtering | |
Coax Protection | 1-In, 1-Out |
EMI/RFI Filtration | Yes |
Network Protection RJ45 | 1-in, 1-Out (10/100/1000) |
Surge Suppression | 1,500 J |
Management & Communications | |
Audible Alarms | On Battery, Low Battery, Overload, Fault |
Communication Cable | USB Cable |
HID Compliant USB Port | Yes |
LED Indicators | Power On, Wiring Fault, On Battery, AVR, Overload |
Serial Port | Yes |
Software | PowerPanel® Personal |
Physical | |
Color | Black |
Dimensions – WxHxD (in) | 3.9 x 9.8 x 13.7 |
Form Factor | Mini-Tower |
Shipping Dimensions – WxHxD (in) | 17.2 x 13.5 x 7.2 |
Weight (lbs) | 21.83 |
Environmental | |
Maximum Operating Elevation | 10,000 ft (3,000 m) |
Maximum Storage Elevation | 50,000 ft (15,000 m) |
Operating Relative Humidity | 0 – 90% (non-condensing) |
Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Storage Relative Humidity | 0% – 95% (non condensing) |
Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
Certifications | |
Environmental | RoHS Compliant |
Safety | UL1778, cUL 107 5th, FCC DOC Class B |
Warranty | |
CEG Amount | $375,000 |
Connected Equipment Guarantee | Lifetime |
Product Warranty | 3 Years Limited |
