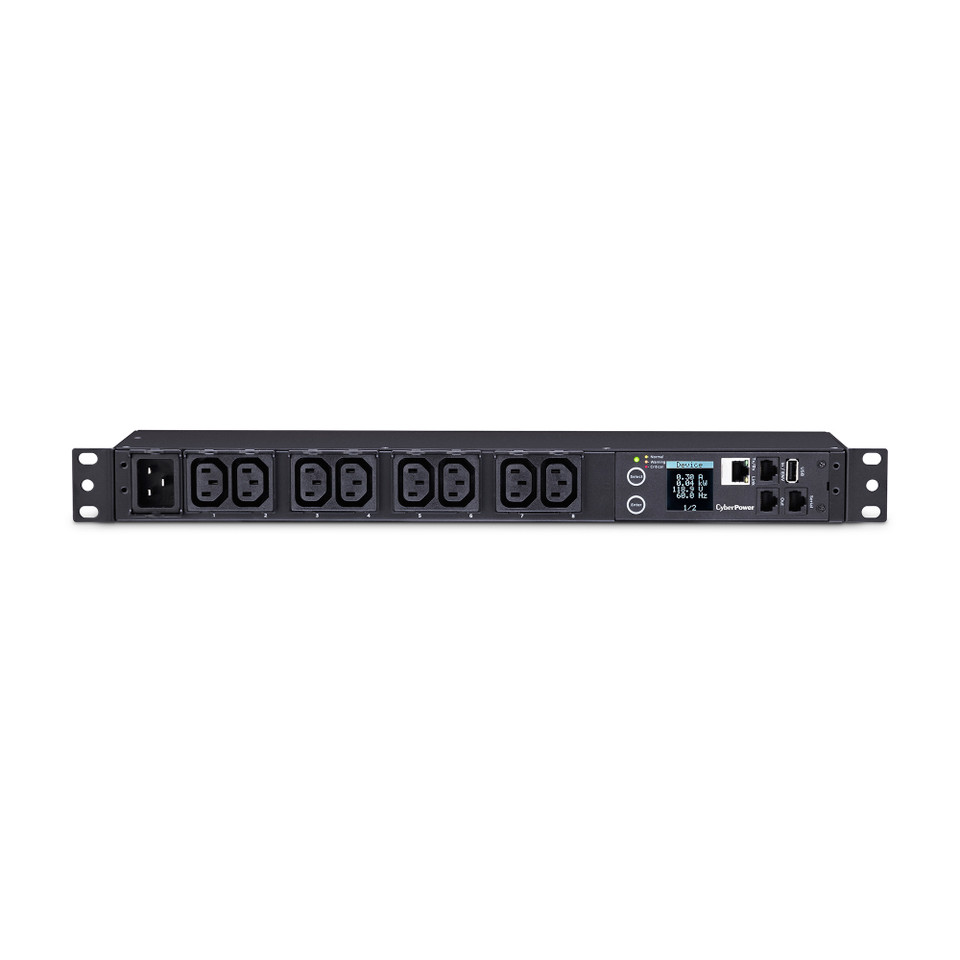

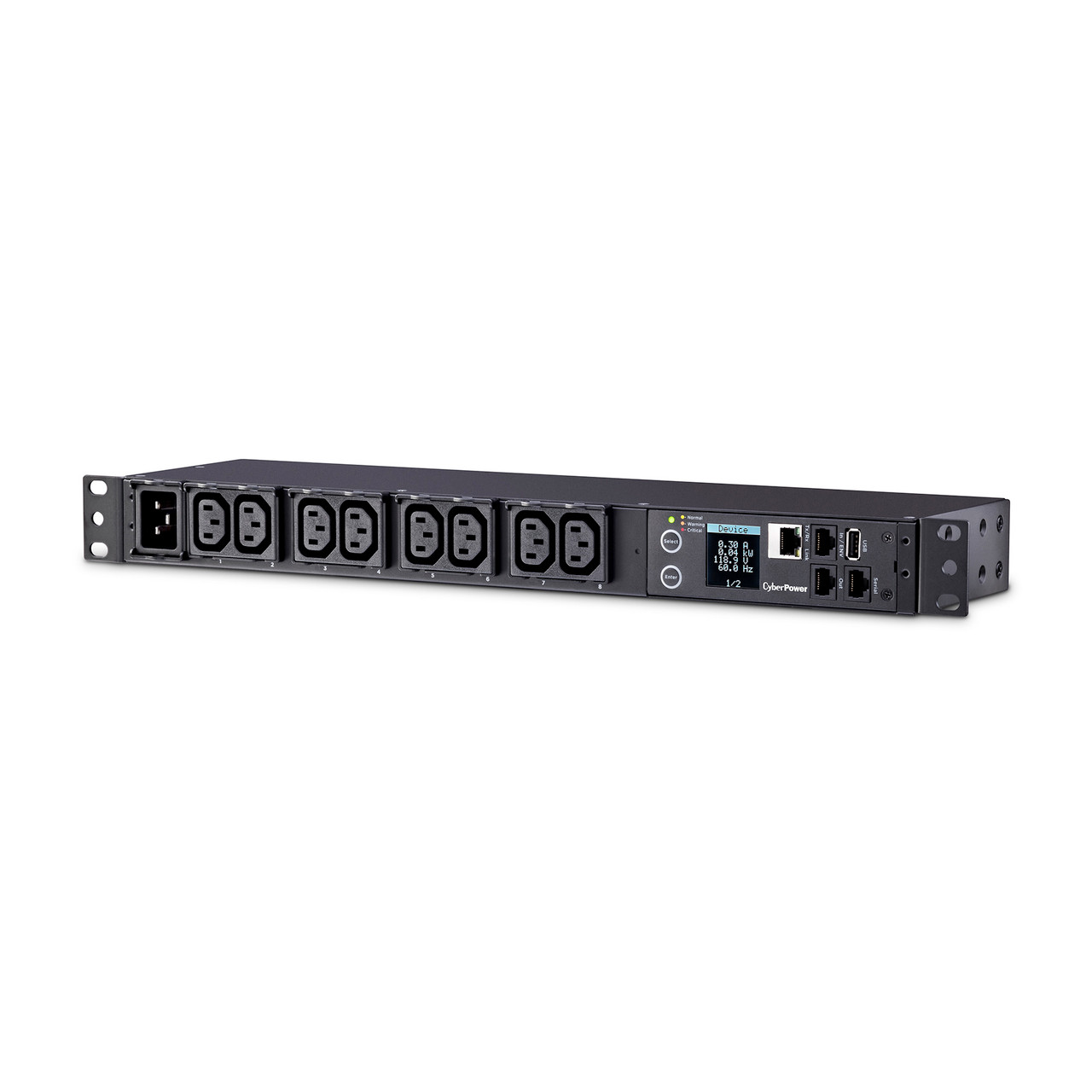

The CyberPower PDU31005, an 8-outlet (front), 1U rack-mount monitored power distribution unit (PDU), provides 100-120V 20A output. PDU31005 distributes power to 8 IEC-320 C13 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. Monitor power status over the network using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD screen.

The PDU31005 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.

Product Features

• Power Distribution Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
• Switch-Free Design Safeguards against accidental power shut down.
• CyberPower Management Console A hardware interface built into monitored and switched PDUs. It can perform tasks such as load monitoring and event logging.
• Remote and Local Monitoring Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
• Automatic Event Notifications Provides immediate updates about power events via email, SMS text, or SNMP traps.
• Upgradeable Firmware Downloadable firmware updates to improve programs that run the PDU.
• Digital Display Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
• Network-Grade Plugs and Outlets Highly durable construction ensures the efficient distribution of power to servers, equipment, and connected devices in demanding IT or industrial environments.
• Long Input Power Cord The PDU is able to be placed where it’s needed because it reaches distant power sources.
• Cord Retention Tray Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
• Mounting Brackets Design allows PDU to be installed in a rack or horizontally or vertically, under a counter or via wall mount.
• Durable Metal Housing Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
• Three-Year Limited Warranty Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

• Typical Applications

  • Data Centers
  • Network Closets
  • Telecom Installations

  Compatible Products

  •
    Extended Warranty

    WEXT5YR-PDU1A

  What's In The Box

  PDU, (2) Short Mounting Brackets, (2) Long Mounting Brackets, (12) M4 x 8 Screws, (6) M5 X 12 Screws/Washers, Cord Retention Tray, (6) M3 x 6 Screws, Cable Ties, RJ45/DB9 Serial Cable, User Manual, Registration and Software download Cards

  WARNING

  This product can expose you to chemicals including Styrene (ABS), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

  Specifications:

  Input
  Cord Length	10 ft (3.0 m)
  Derated Input Current	16 A
  Input Frequency Range	50 Hz – 60 Hz
  Input Plug Type	IEC-320 C20
  Maximum Input Current	20A
  Power Cord Length	10 ft (3 m)



  Output
  Circuit Quantity	1
  Nominal Output Voltage	100 – 120 VAC
  Number of Outlets	8
  Outlet Type	8 – IEC-320 C13
  Outlets – Total	8
  Overload Protection	None
  USB Charge Port	No



  Dimensions
  Physical Dimensions – (WxHxD) (cm)	43.31 x 4.57 x 11.2 (cm)
  Physical Dimensions – (WxHxD) (in)	17.05 x 1.8 x 4.41 (in)
  Physical Dimensions – (WxHxD) (mm)	433 x 46 x 112 (mm)
  Physical Weight (kg)	1.91
  Physical Weight (lb)	4.2
