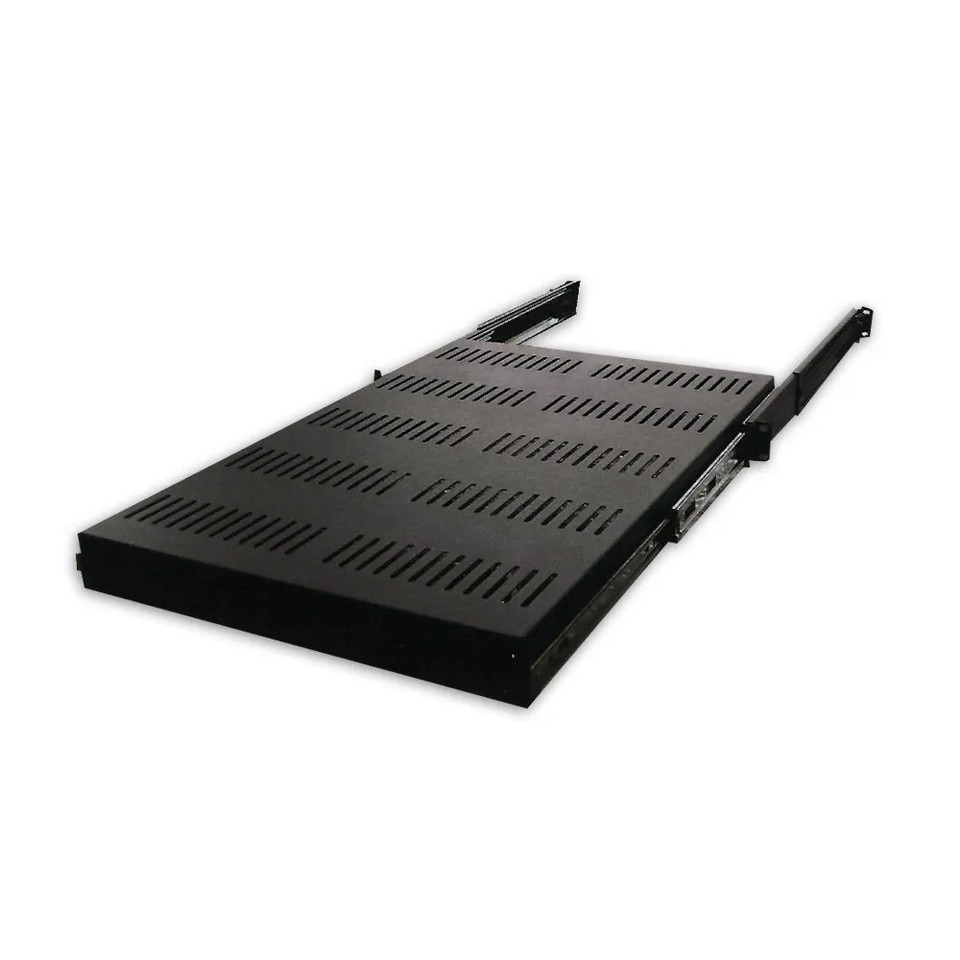

These Heavy Duty Slide-Out Shelves are constructed for use in our standard and deep enclosures. Designed with a 4 point mounting system it has a load capacity of up to 150lbs. Also, a slide-out feature which extends out to 32″ for standard depth 410/710 and 420/720 series enclosures, and 37″ in our deeper series 430, 730 and 740 enclosures. They come complete with a set of #12-24 mounting screws and has a black powdercoat microfinish to match rack and enclosure color. After mounting of the rails, the shelf can be fully extended and removed from the rails for easy loading of equipment.
Features
| SKU |
Color | Mounting Width | Mounting Depth |
Height / RMS |
Shelf Size |
Weight | Load Capacity | Package Length | Package Width | Package Height | Package Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ES0119-0121 | Black | 19″ | 21" | 1.75"/1U | 16.3" X 21" | 13.4 lbs | 150 lbs | 21″ | 23″ | 4″ | 16 lbs |
| ES0119-0123 | Black | 19″ | 23" | 1.75"/1U | 16.3" X 23" | 16.75 lbs | 150 lbs | 21″ | 28″ | 4″ | 17.75 lbs |
