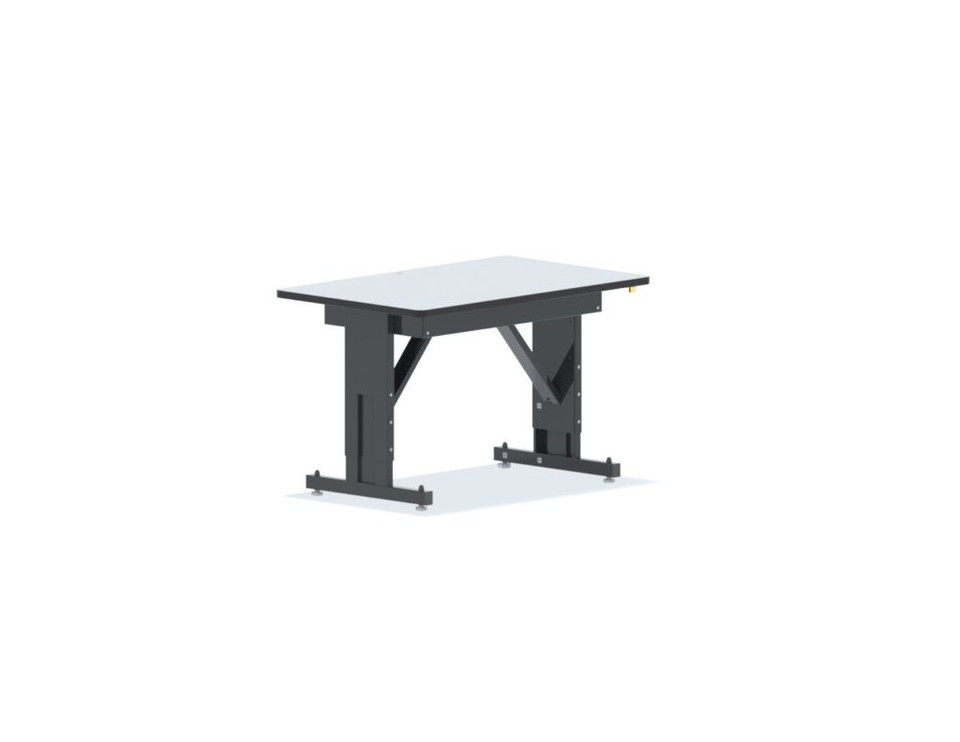

ESD Workbench

Item #: ESDW-xx30-1000

Description:
Kendall Howard™ ESD Workbenches provide technicians in static control environments an ESD safe work space for servicing and maintenance of sensitive electronic components across a multitude of industries.  Designed for optimal ergonomics and static control in mind. The ESD Workbench can be adjusted in 4” height increments from 30” up to 38” in minutes. Each table includes two grounding options to ensure proper static protection. Ground 1 is through a 10’ external Earth ground wire. Ground 2 is established with a unique aluminum boot attached to a leg level to provide a connection to all non-insulated or ESD safe flooring. Workbench is also equipped with a single strategically placed wrist grounding strap grounding point. (Wrist straps not included)
  • Weight Capacity: 1,000 lb.
  • Work surface is constructed from NEVAMAR® Greystone, ESD protected laminate
  • Gloss Black powder coat finish offers an easy to clean and a durable surface
  • 30" surface depth
  • RoHS 3 compliant
  • Limited lifetime warranty
  • Manufactured in the USA
Features:
  • Ergonomic Height Settings - The worksurface can be fixed into three different heights in 4” height increments from 30”-38”.
  • Common Ground Point -ESD tables can be grounded two ways. A 10’ long Earth ground wire is provided to attach to common grounds. The second ground is built into a leg leveler with a unique aluminum boot. Workbench also includes a designated wrist strap grounding point.
  • Conductive Laminate Work Surface - Work surface has a low electrical resistance and will diffuse static charges to ensure protection of sensitive devices during assembly. Resistant to most common solvents, solder and fluxes creating an extremely durable surface
  • Test Data - Resistance to top 1.0 x 10^5 – 1.0 x 10^9 Ohms resistance at 70° F & 30% relative humidity. Resistance to ground (Common Ground Point, Wrist Strap, Floor Ground Equipment Ground) tested 1.0 x 10^5 to 1.0 x 10^9 Ohms resistance @ 70° F and 30% relative humidity.
Specifications:

Part Number#

ESDW-4830-1000

ESDW-6030-1000

ESDW-9630-1000

Width

48"

60"

48"

Depth

30"

36"

30"

Height

30”-38”

30”-38”

30”-38”

Weight

225 lbs

290 lbs

355 lbs

Shipping Dimensions

62"L x 36"W x 13"H

79"L x 36"W x 13"H

100"L x 36"W x 13"H

Color/Finish

Glossy black with Folkstone laminate

UPC

879447000412

879447001709

879447001822

Warranty

Limited lifetime warranty

Shipping Method

LTL Freight

What's in the Box:
Item Quantity
Work Surface 1
Leg Assembly 2
Cross Bar 2
Gusset 2
Pan Head Screw 38
ESD Grounding Boot 1
Self-Adhesive Cable Tie Mount 5
6” Cable Tie 5
