2 GHz F-Type Modular Jack with Gold Plated Connector in HD Style

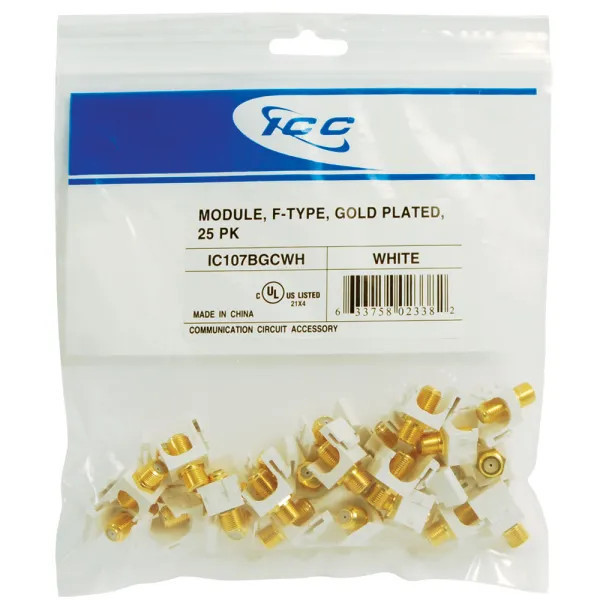

The 25-pack F-type Modular jacks are designed with a reseal able strip allowing the bags to be reused multiple times preventing loss or mixing of colors or types of modular jacks. The bags have a clear lower area allowing for easy part identification.

Product Features

• Gold plating for improved performance with superior signal quality with minimal noise
• Used for audio and video applications
• Rear threaded F-Type connectors for secure in-wall connections with both RG6 and RG59 coaxial cables
• Provides a clean and neat appearance installation
• Compatible with all IC107 faceplates, inserts, surface mount boxes, and blank patch panels
• Compatible with all IC108 furniture faceplates, bezels, and surface mount boxes
• Used with ICC RG6 F-Type ICPCSF patch cords
• Available in white
• 25 modules included in packaging bag
• UL listed

Specifications

Housing:

• Material: ABS, UL 94V-0
• Color: XX: WH-WHITE

Gold Plated F-type Connector:

• Material: Bronze With 3 Micron Gold Plating
• Holding Force > 80 Grams
• F-type Connector Threads: 3/8-32 UNEF-2A

Electrical:

• Return Loss Of -20 dB Max
• Frequency Range 1.4 ~ 2.0 Ghz
• Contact Resistance < 10 Mohm
• Insulation Resistance > 5000 Mohm
• Insertion Loss < 0.3 dB
