Rack Mount 3U LGX Compatible Fiber Enclosure, Holds up to 9 LGX Adapter Panel

Rack Mount 3U LGX Compatible Fiber Enclosure, Holds up to 9 LGX Adapter Panel

click to zoom in

Fiber Enclosure, Rack Mount, 9 Panel, 3U

Fiber Enclosure, Rack Mount, 9 Panel, 3U, view 2

Fiber Enclosure, Rack Mount, 9 Panel, 3U, view 3

Fiber Enclosure, Rack Mount, 9 Panel, 3U, view 4

Fiber Enclosure, Rack Mount, 9 Panel, 3U, view 5

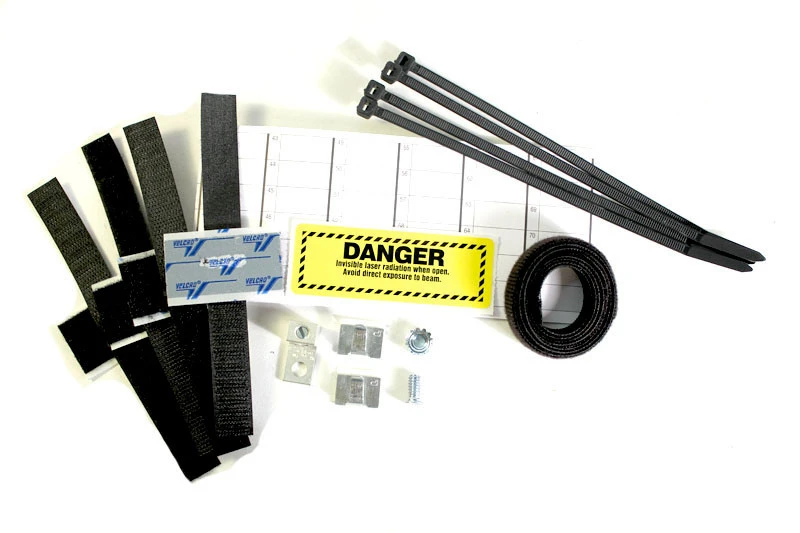

Fiber Enclosure, Rack Mount, 9 Panel, 3U, view 6

Fiber Enclosure, Rack Mount, 9 Panel, 3U, view 7

Item#:: RAC-3X

List Price: $469.32

$234.66

(You save $234.66 )

Condition:: New
Weight:: 23.30 LBS

Current Stock:

Quantity:

Need Help?

Speak to one of our experts.

804-716-9007

Rack Mount 3U LGX Compatible Fiber Enclosure, Holds up to 9 LGX Adapter Panel

List Price: $469.32

$234.66

(You save $234.66 )

Description
Downloads

Description

The LightWave brand RAC-3X is compatible with any LGX Fiber Optic Adapter Panel and holds up to 9 LGX Adapter Panels. The 1U Rack Mount fits in both 19 Inch and/or 23 Inch racks and cabinets. It is a great space saving solution that features a sturdy design for maximum durability, making it a reliable tool for housing up to three fiber optic adapter panels. Its universal fit makes it compatible with most standard 19" racks. The bulkhead comes with (4) #10-32 & (4) #12-24 mounting screws for either rack mounting configurations.

The RAC-3X Fiber (LIU) Enclosure

Features:

Rack Space 3U
Hold up to 9 LGX Compatible Adapter Panels (6-, 8-, 12-, or 24- fiber panels). Note: 24 Port Panels only available in LC connectors. 19" rack-mountable enclosure available with extension brackets for 23" rack. 16-gauge steel with black powder finish coat.

The RAC-3X removable top lid for easy access to fiber. Sliding tray for high-density situations. Spools at the rear for neat and clean cable management.

The RAC-3X holds nine Fiber Adapter Panels. We stock ST, SC, MTRJ, FC, LC, and MTP/MPO adapter panels for almost any fiber enclosure.

The RAC-1X can hold three MTP/MPO cassettes or adapter panels - up to 72 fibers.
The RAC-2X can hold six MTP/MPO cassettes or adapter panels - up to 144 fibers.
The RAC-4X can hold twelve MTP/MPO cassettes or adapter panels - up to 288 fibers.

Unused slots should be filled with Blank Adapter Plates.

Note: 24 Port Adapter Panels only available in LC configuration.

Specifications

Dimensions: Width = 17", Depth = 12", Height = 3.5"
Weight (unloaded): 12 lbs.
Port Capacity: 6-144

The LGX Patch Panel provides cross connection capabilities incorporated within a compact bulkhead design. This unit is wall mountable with an industry-standardized design made to fit in existing server enclosures. Our LGX Patch Panels come with universal mounting hardware and are ideal for the storage of splice trays.
