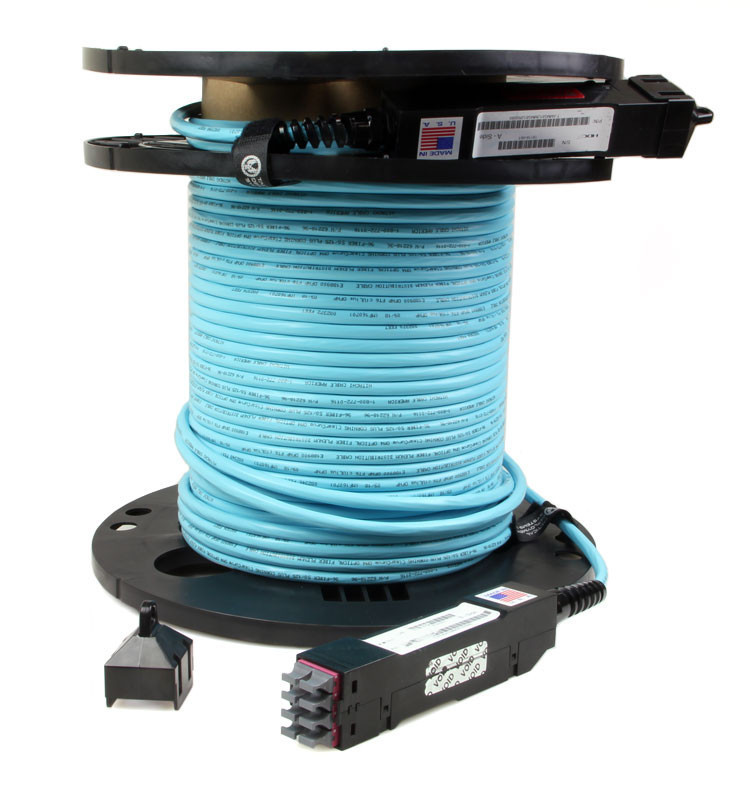

HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover

click to zoom in
HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 2
HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover
HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover
HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover
HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 3

HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover

Item#:
T-9MSE608MSE608R0010
List Price: $1,098.20
$773.51
(You save $324.69 )
Availability:
Made To Order, Normal lead-time 7 - 10 days, after Drawing Approval

Weight:

1.00 LBS

Minimum Qty:  10 ft
Total Footage: 10 ft 		Additional Feet:
x 1.86 per/ft
Recalculate
Customer Service

Need Help?

Speak to one of our experts.

Phone Icon

804-716-9007

HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 2

HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover

List Price: $1,098.20
$773.51
(You save $324.69 )

video gallery

Description

Our HD8² High Density Fiber Optic Patching system is specifically designed for ease of installation and economy of space. The smaller square cassette utilized in our design, versus the typical flat wide cassette, lends itself to a smaller profile. The cassettes come with a snap on pulling eye cap. The pulling eye cap snaps onto the front of the cassette and acts as both a pulling eye and a cover to protect the internal connectors. This design simplifies the installation process of pre-terminated trunked cassettes and as a result can reduce dB loss by reducing the number of termination points throughout the cabling design. Older style designs are cumbersome and either do not allow for pre-termination or, if they are pre-terminated cassettes, they are too large to pull through existing infrastructure.

Product Specification: HD8² HDReadyLink®, 48 Strand 9/125 OS2, Cassette to Cassette, 6-Port MTP®/APC Elite 8 Fiber Male to 6-Port MTP®/APC Elite 8 Fiber Male, Rollover, With integrated HDReadyPull® Pulling Eye

Connector Side A
 MTP/APC Elite Low Loss 8 Fiber (Male) Connector Side B
 MTP/APC Elite Low Loss 8 Fiber (Male)
Ferrule Type Side A

HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 3HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 4

HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 5HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 6

HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 7HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 8

 Ferrule Type Side B

HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 9HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 10

HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 11HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 12

HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 13HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (6) Port MTP®/APC Elite 8F (Male) to (6) Port MTP®/APC Elite 8F (Male), 48 Strand, Rollover - Image 14
Port Count Side A
 6 Port Count Side B
 6
Insertion Loss Maximum Side A
 ≤0.35dB Insertion Loss Maximum Side B
 ≤0.35dB
Insertion Loss Typical
 0.10dB Insertion Loss Typical
 0.10dB
Return Loss ≥60dB Return Loss ≥60dB
===============
 ==================== ==================
 ==================
Cable Type
 OS2 9/125μm Wavelength 1310/1550nm
Fiber Count 48 Fiber Grade G.657.A1 (Compatible with G.652.D)
Polarity Rollover (Type B) Cable Outer Diameter 6.2mm
Cable Jacket OFNP Plenum Sub Unit Outer Diameter 2.0mm
Bend Radius, No Load
 10x cable overall diameter Bend Radius, Load
 15x cable overall diameter
===============
 ==================== ==================
 ==================
Wavelength
 1 Gb Distance Max.
 Wavelength
 10 Gb Distance Max.
1310nm > 25,000 Meters 1310nm 10,000 - 25,000 Meters
1550nm > 40,000 Meters 1550nm 40,000 Meters
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)

BENEFITS

  • Reduced installation time with integrated pulling eye - 75-85% time savings
  • Space savings of up to 100% per cassette over traditional MTP/MPO cassettes

TRUNK CABLE FEATURES

  • Made in USA and TAA compliant
  • REACH & RoHS 2 compliant
  • MM OM1, OM2, OM3, OM4, OM5 & SM OS2
  • Bend-insensitive optical fibers
  • 250 micron loose tube design allows for higher fiber strand counts in a smaller overall diameter cable
  • Flexible and easy to handle Lightweight, flexible aramid yarns enhance strength
  • When necessary, colorcoded binders separate fiber strands into bundles of 12
  • 100% interferometry reports
  • 100% visual inspection reports
  • Total link test testing and labeling available at additional cost

TRUNK CABLE JACKET & GLASS OPTIONS

  • Yellow: OS2
  • Orange: *OM1 & *OM2 (*MOQ and not available in BIF glass)
  • Aqua: OM3, OM4, OM5
  • Note: Erika Violet for OM4 and Lime Green OM5 is available MOQ and leadtime may apply

TRUNK CABLE APPLICATIONS

  • Applications include: 10G, 40G, 100G and 400G Ethernet, fiber channel, video, security and automation

TRUNK CABLE STANDARDS

  • TIA/EIA-568-C.3
  • ISO/IEC 11801, 2nd edition
  • Telcordia GR-409-CORE
  • OS2 glass is compliant to ITU-T G.657.A1
