HD8² Cassette, 36 Strand, 50/125 OM3, MDC/UPC (18) Port, Aqua Duplex, Front - (3) Port MTP Elite 12 Fiber Rear, Male Aqua, Straight (Type A) Pinout

Item#:
HDC-3MDMQ02SE3M12
(0) Write a Review

Weight:

0.20 LBS

$695.69
$628.64
Customer Service

Need Help?

Speak to one of our experts.

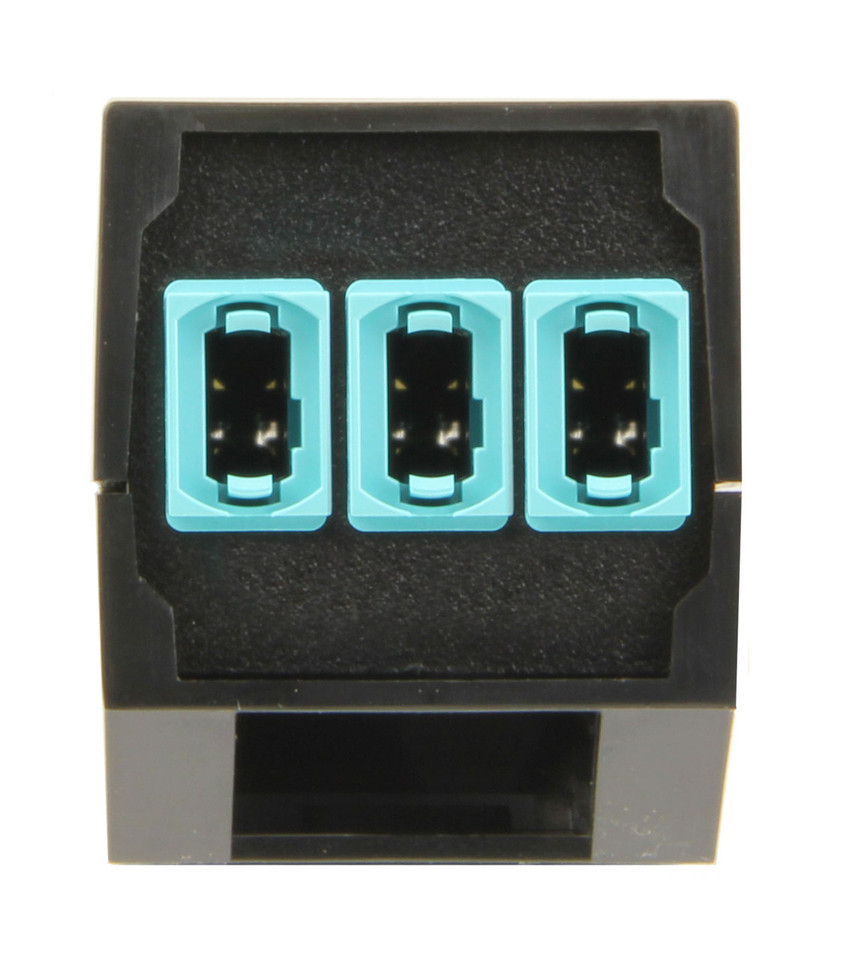

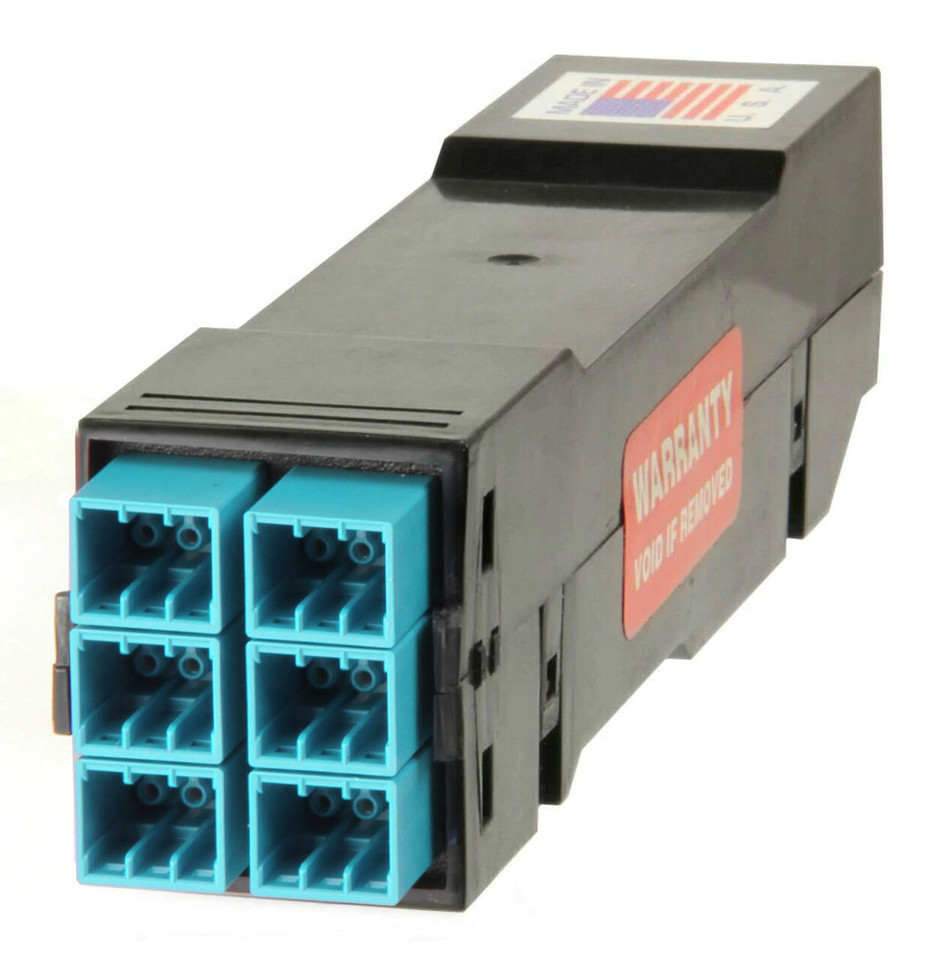

HD8² High Density Cassette, 36 Strand, Multimode 50/125 OM3, Cassette Front includes 18-Port / 2-Fiber Aqua MDC/UPC connectors, Cassette Rear includes - (3) Port Aqua MTP Elite 12 Fiber, Male Pinset, Straight (Type A) Pinout

Product Specification:

Connector Side A
MDC/UPC Connector Side B
MTP/UPC Elite Low Loss 12 Fiber
Ferrule Type Side A
1.25mm Ferrule Type Side B

Port Count Front
18 Port Count Rear
3
Insertion Loss Maximum Side A
≤0.20dB Insertion Loss Maximum Side B
≤0.35dB
Insertion Loss Typical
0.08dB Insertion Loss Typical
0.10dB
Return Loss ≥20dB Return Loss ≥20dB
===============
==================== ==================
==================
Cable Type
OM3 50/125μm Wavelength 850/1300nm
Fiber Count 36 Fiber Grade Corning ClearCurve Glass
Polarity Rollover (Type B) Cable Outer Diameter 900um
Cable Jacket PVC Sub Unit Outer Diameter N/A
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
1 GbE Distance Max. 10 GbE Distance Max. 40 GbE Distance Max. 100 GbE Distance Max.
1,100 Meters 300 Meter 100 Meter 100 Meter
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)

*The HD8² takes advantage of the US Conec MDC connectors which is a two fiber connector manufactured with proven 1.25mm ferrule technology used in industry standard LC connectors. Two port MDC adapters fit directly into standard panel openings for duplex LC adapters, increasing fiber density by a factor of two. Supporting port breakout architectures for emerging transceiver MSAs, the smaller size will allow a single array transceiver to accept multiple MDC patch cables, which are individually accessible directly at the transceiver interface. The new format will support four individual MDC cables in a QSFP footprint and two individual MDC cables in an SFP footprint.
