HD8² High Density Cassette, 24 Strand, Multimode 50/125 OM3, Cassette Front includes 12-Port / 2-Fiber Aqua MDC/UPC connectors, Cassette Rear includes - (1) Port Aqua MTP Elite 24 Fiber, Male Pinset, Straight (Type A) Pinout



Connector Side A	MDC/UPC	Connector Side B	MTP/UPC Elite Low Loss 24 Fiber
Ferrule Type Side A	1.25mm	Ferrule Type Side B
Port Count Front	12	Port Count Rear	1
Insertion Loss Maximum Side A	≤0.20dB	Insertion Loss Maximum Side B	≤0.35dB
Insertion Loss Typical	0.08dB	Insertion Loss Typical	0.10dB
Return Loss	≥20dB	Return Loss	≥20dB
===============	====================	==================	==================
Cable Type	OM3 50/125μm	Wavelength	850/1300nm
Fiber Count	24	Fiber Grade	Corning ClearCurve Glass
Polarity	Rollover (Type B)	Cable Outer Diameter	900um
Cable Jacket	PVC	Sub Unit Outer Diameter	N/A
Bend Radius, No Load	10x cable overall diameter	Bend Radius, Load	15x cable overall diameter
===============	====================	==================	==================
1 GbE Distance Max.	10 GbE Distance Max.	40 GbE Distance Max.	100 GbE Distance Max.
1,100 Meters	300 Meter	100 Meter	100 Meter
Operating Temperature	0° to 70°C (32° to 158°F)	Storage Temperature	-40° to 70°C (-40° to 158°F)

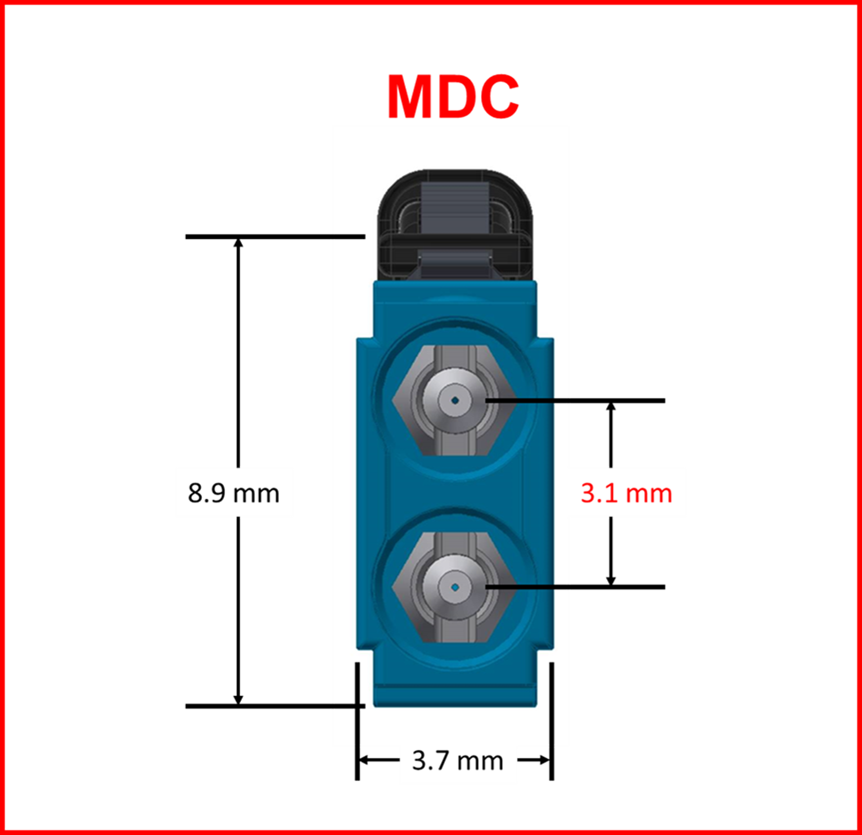

*The HD8² takes advantage of the US Conec MDC connectors which is a two fiber connector manufactured with proven 1.25mm ferrule technology used in industry standard LC connectors. Two port MDC adapters fit directly into standard panel openings for duplex LC adapters, increasing fiber density by a factor of two. Supporting port breakout architectures for emerging transceiver MSAs, the smaller size will allow a single array transceiver to accept multiple MDC patch cables, which are individually accessible directly at the transceiver interface. The new format will support four individual MDC cables in a QSFP footprint and two individual MDC cables in an SFP footprint.
