| Connector Side A |
MDC/UPC | Connector Side B |
MTP/UPC Elite Low Loss 12 Fiber |
| Ferrule Type Side A | 1.25mm | Ferrule Type Side B |
  |
| Front Panel Ports |
12 | rear Panel Ports |
2 |
| Insertion Loss Maximum Side A |
≤0.20dB | Insertion Loss Maximum Side B |
≤0.35dB |
| Insertion Loss Typical |
0.08dB | Insertion Loss Typical |
0.10dB |
| Return Loss | ≥20dB | Return Loss | ≥20dB |
| =============== |
==================== | ================== |
================== |
| Cable Type |
OM5 50/125μm | Wavelength | 850/953/1300nm |
| Fiber Count | 24 | Fiber Grade | Corning ClearCurve Wide Band Glass |
| Polarity | Rollover (Type B) | Cable Outer Diameter | 900um |
| Cable Jacket | PVC | Sub Unit Outer Diameter | N/A |
| Bend Radius, No Load |
10x cable overall diameter | Bend Radius, Load |
15x cable overall diameter |
| =============== |
==================== | ================== |
================== |
| 40 GbE Distance Max. | 100 GbE Distance Max. | 40G-SWDM4 | 100G-SWDM4 |
| 150 Meter | 150 Meter | 500 MEter | 150 Meters |
| Operating Temperature | 0° to 70°C (32° to 158°F) | Storage Temperature | -40° to 70°C (-40° to 158°F) |

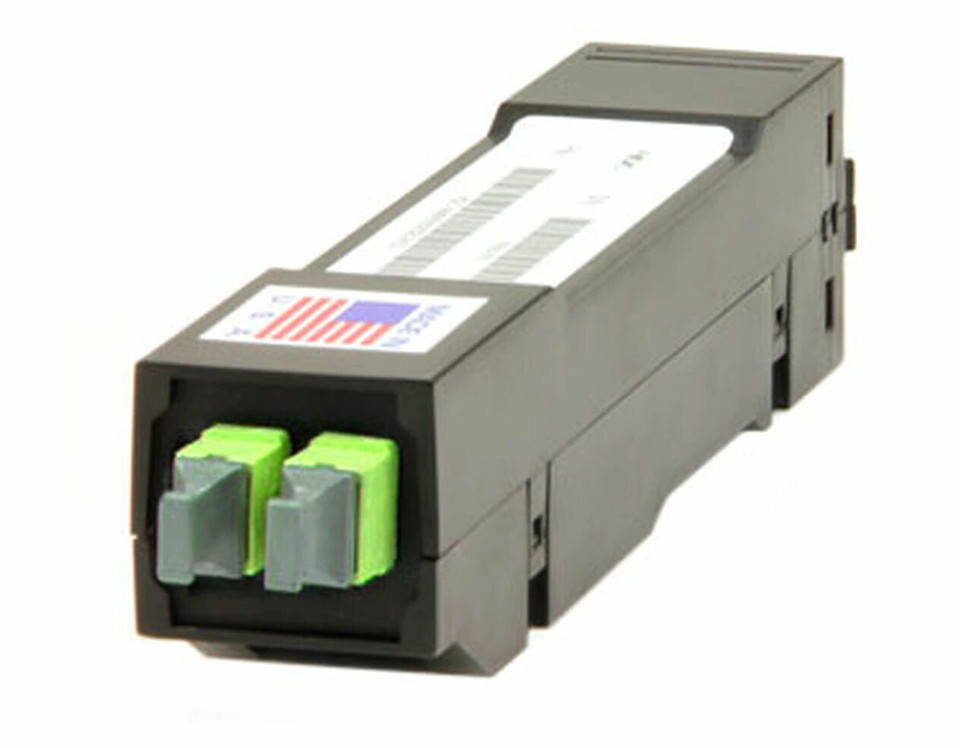

*The HD8² takes advantage of the US Conec MDC connectors which is a two fiber connector manufactured with proven 1.25mm ferrule technology used in industry standard LC connectors. Two port MDC adapters fit directly into standard panel openings for duplex LC adapters, increasing fiber density by a factor of two. Supporting port breakout architectures for emerging transceiver MSAs, the smaller size will allow a single array transceiver to accept multiple MDC patch cables, which are individually accessible directly at the transceiver interface. The new format will support four individual MDC cables in a QSFP footprint and two individual MDC cables in an SFP footprint.
