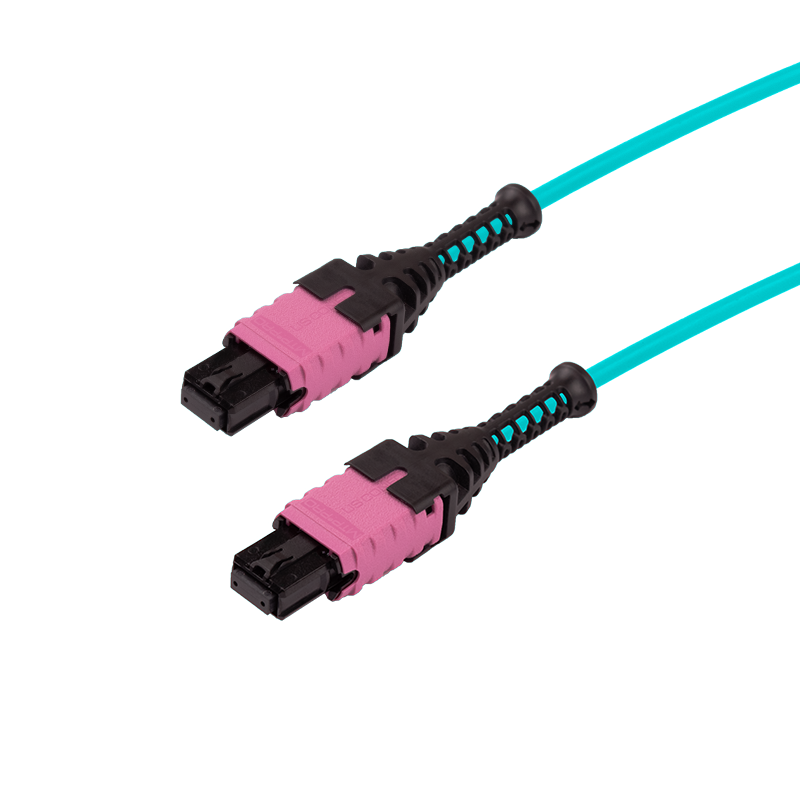

HD8² Patch Cable, MTP® Elite/UPC Pro Connector & Boot, OM4 MM 50/125 Micron, 8/12 Fiber, Patch Cable

HD8² Patch Cable, MTP® Elite/UPC Pro Connector & Boot, OM4 MM 50/125 Micron, 8/12 Fiber, Patch Cable

Item#:
P4P12U2F-U2F-001F-R
List Price: $132.60
$88.40
(You save $44.20 )
Availability:
Made To Order, Normal lead-time 7 - 10 days, after Drawing Approval
Weight:
2.50 LBS
Bulk Pricing:
Buy in bulk and save
Customer Service

Need Help?

Speak to one of our experts.

MTP/UPC Elite Pro Boot Cable, MM 50/125 Micorn 12 Fiber - P4P12E2F-E2F-XXXX-X - Image 2

HD8² Patch Cable, MTP® Elite/UPC Pro Connector & Boot, OM4 MM 50/125 Micron, 8/12 Fiber, Patch Cable

List Price: $132.60
$88.40
(You save $44.20 )

HD8² Patch Cable, MTP® Elite/UPC Pro Connector & Boot, OM4 MM 50/125 Micron, 8/12 Fiber, Patch Cable

List Price: $132.60
$88.40
(You save $44.20 )
MTP® PRO Elite to MTP® PRO Elite OM4 Multimode 50/125 Micron BIF Bend Insensitive Fiber

The MTP® PRO Elite connector & PRO Boot design is the newest addition to the US Conec MTP® brand MPO product family. This state-of-the-art connector brings simplified use to the MPO format by offering optimal field flexibility and enhanced performance, all while leveraging the proven features and technology of US Conec’s MTP® connectors.

With a novel design focused on simplicity and reliability, the MTP® PRO connector offers quick and effective polarity and pin reconfiguration in the field while ensuring product integrity and performance.

Features
  • Field Pin Change
    Field friendly configuration while maintaining product integrity, fail safe handling of pins and easy color identification

  • Field Polarity Change
    Simple one-step color coded polarity change feature without removing connector housing

  • Debris Reduction System
    Geometry and material optimized to reduce debris generation

  • Integrated Push-Pull Sleeve
    Robust push-pull insertion and extraction housing design for ease of use and access

  • Environmentally Friendly
    RoHS and REACH compliant without exemptions
In today’s High Density Data Center environments managers are taking advantage of the most innovative fiber optic technology to date. The HD8² 2.0mm MTP Elite Low Loss Pro Boot brand multi-fiber MPO cables accomplish more with less cable clutter.

The MTP Elite brand connector is an improved version of the MPO style connector, offering features that benefit the user to get the best possible connection, including a removable housing for reworking the ferrule or changing the connector gender post-assembly.

Other features such as the patented ferrule float and stainless steel guide pin tips (available on male versions) help offer greater durability and accuracy. With this 12-strand fiber optic cable, you can perform an array of functions at a fraction of the space used by standard connector cables.

Each cable is assembled in-house our local facility, and tested for interferometry and insertion loss, so enjoy the American-made quality and high performance that LightWave cables provide.

LightWave brand MTP Cables are fully compliant with the guidelines of the Trade Agreements Act (TAA), and are approved for United States Government use.


Choose Your Gender

Female to Female - MTP/MPO (No Pin) to MTP/MPO (No Pin)

Female to Male - MTP/MPO (No Pin) to MTP/MPO (With Pin)

Male To - MTP/MPO (With Pin) to MTP/MPO (With Pin)

Choose Your Polarity

Type A - Straight: Straight-through polarity is typically for connecting patch panels. They are wired in a mirrored configuration, going from Pin 1 on one connector end to Pin 1 on the opposite end, etc.

Type B - Rollover: Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth.

Type C - Flipped: Pair-Flipped polarity is the most commonly used polarity type for this cable, and typically used in cassette-to-cassette applications. Pin 1 on one end goes to Pin 2 on the opposite end, and 2 to 1, 3 to 4, 4 to 3, and so on. This is the default polarity option, but you can select your desired polarity from our drop-down menu above.


MTP Elite Pro Boot 12-Strand Fiber Cable Features

  • Space-saving 12 fibers in a single connector
  • 2.0mm Plenum Rated Jacket
  • High density connections between network equipment in telecommunication rooms
  • Easy installation and removal with push-pull Pro Boot
  • Compact design for high fiber-count applications with space limitations

Specifications

  • Simplex 2.0mm cable
  • 50/125um OM4 Glass - Bend Insensitve Fiber fiber
  • Plenum-Rated OFNP Aqua Jacket
  • 12-Fiber count
  • Nominal Diameter: 2.0mm
  • 40G SR4 (4X10G) 8 Fiber
  • 100G SR4 (4X25G) 8 Fiber
  • 200G SR4 (4X50G) 8 Fiber
  •
  • 400G SR4.2 (4X100G) 8 Fiber
  • Bend Radius: 1.8in (Installation), 1.2in (Long-term)
  • Product Specification:

    Connector Side A
    MTP/UPC Elite Low Loss 12 Fiber Connector Side B
    MTP/UPC Elite Low Loss 12 Fiber
    Ferrule Type Side A

    MTP/UPC Elite Pro Boot Cable, MM 50/125 Micorn 12 Fiber - Image 3

    Ferrule Type Side B

    MTP Ferrule Configuration - 1 X 12

    Insertion Loss Maximum Side A
    ≤0.35dB Insertion Loss Maximum Side B
    ≤0.35dB
    Insertion Loss Typical
    0.10dB Insertion Loss Typical
    0.10dB
    Return Loss ≥20dB Return Loss ≥20dB
    ===============
    ==================== ==================
    ==================
    Cable Type
    OM4 50/125μm Wavelength 850/1300nm
    Fiber Count 12 Fiber Grade Corning ClearCurve Glass
    Polarity Rollover (Type B) Cable Outer Diameter 2.0mm
    Cable Jacket OFNP Plenum Sub Unit Outer Diameter N/A
    Bend Radius, No Load
    10x cable overall diameter Bend Radius, Load
    15x cable overall diameter
    ===============
    ==================== ==================
    ==================
    40 GbE Distance Max. 100 GbE Distance Max. 40G-SWDM4 100G-SWDM4
    150 Meter 150 Meter 400 Meter 100 Meter
    Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)
