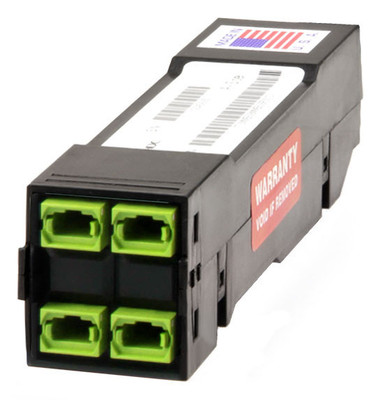

HD8² Cassette,48 Strand, 50/125 OM5, 6 Port MTP® Elite 8F (Male) Front to 2 Port MTP® Elite 24F (Male) Rear, Lime, Straight

click to zoom in

HD8² Cassette,48 Strand, 50/125 OM5, 6 Port MTP® Elite 8F (Male) Front to 2 Port MTP® Elite 24F (Male) Rear, Lime, Straight

Item#:
HDC-5MME608SE2M24

Call or Email for Pricing & Availability! 866-678-5852 or email Sales2@CablesPlusUSA.com

Availability:
Made To Order, OM5 Cable currently is Special Order, Lead-Time and MOQ apply
Weight:
0.20 LBS
Customer Service

Need Help?

Speak to one of our experts.

HDC-5MME608SE2M24 - HD8² Cassette, 50/125 OM5, 6 Port MTP® Elite 8F (Male) Front to 2 Port MTP® Elite 24F (Male) Rear, Lime, Straight - Image 3

HD8² Cassette,48 Strand, 50/125 OM5, 6 Port MTP® Elite 8F (Male) Front to 2 Port MTP® Elite 24F (Male) Rear, Lime, Straight

HD8² Cassette, 48 Strand, Multimode OM5 50/125um, Front Panel includes 6 Port Aqua MTP® Elite 8 Fiber Male, Rear Panel includes 2 Port Aqua MTP® Elite 24 Fiber Male, Straight (Type A) Pinout

Product Specification:

Front Panel Connector
MTP/UPC Elite 8 Fiber Rear Panel Connector
MTP/UPC Elite 24 Fiber
Ferrule Type Front

Ferrule Type Rear
MTP Ferrule Configuration, 1X24MTP Ferrule Configuration, 1X24
Front Cassette Ports
6 Rear Cassette Ports
2
Insertion Loss Maximum Side A
≤0.35dB Insertion Loss Maximum Side B
≤0.35dB
Insertion Loss Typical
0.10dB Insertion Loss Typical
0.10dB
Return Loss ≥20dB Return Loss ≥20dB
===============
==================== ==================
==================
Cable Type
OM5 50/125μm Wavelength 850/1300nm
Fiber Count 48 Fiber Grade Corning ClearCurve Glass
Polarity Straight (Type A) Cable Outer Diameter 250um
Cable Jacket N/A Sub Unit Outer Diameter N/A
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
40 GbE Distance Max. 100 GbE Distance Max. 40G-SWDM4
100G-SWDM4
150 Meter 150 Meter 500 Meter 150 Meter
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)
