High Density FTTD (Fiber to the Desktop) Enclosure

Features:

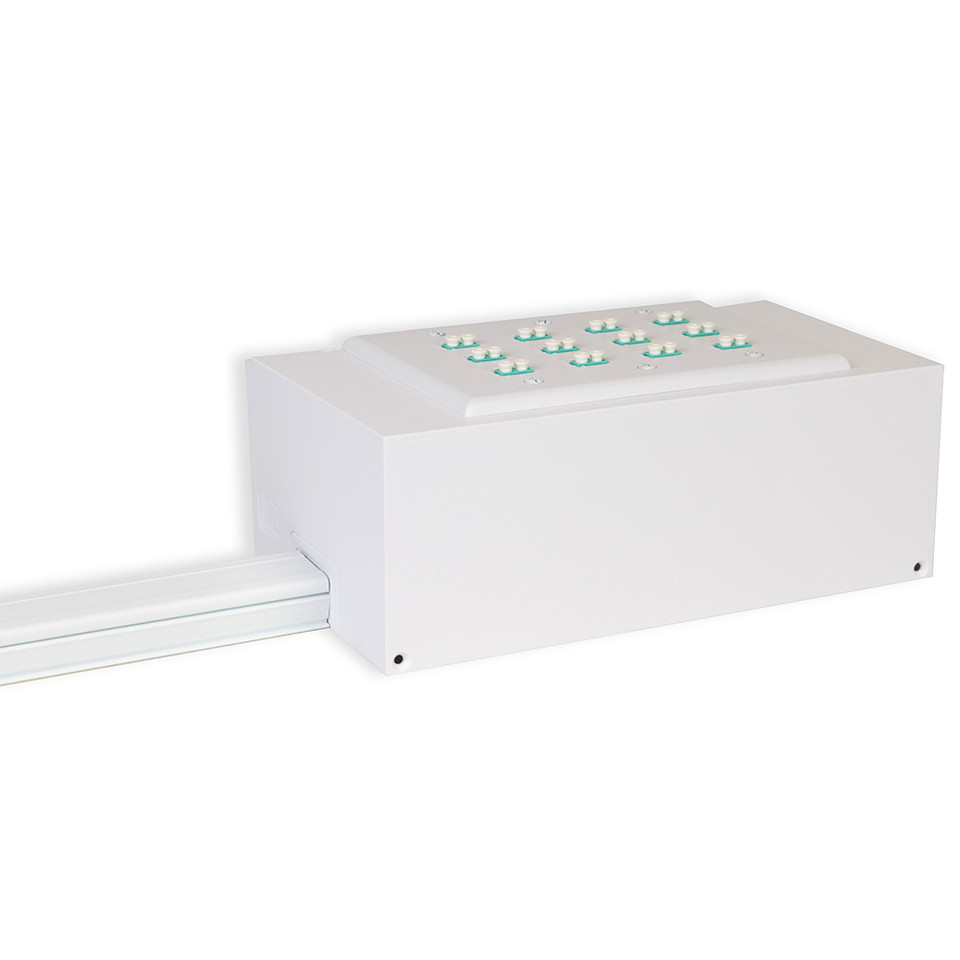

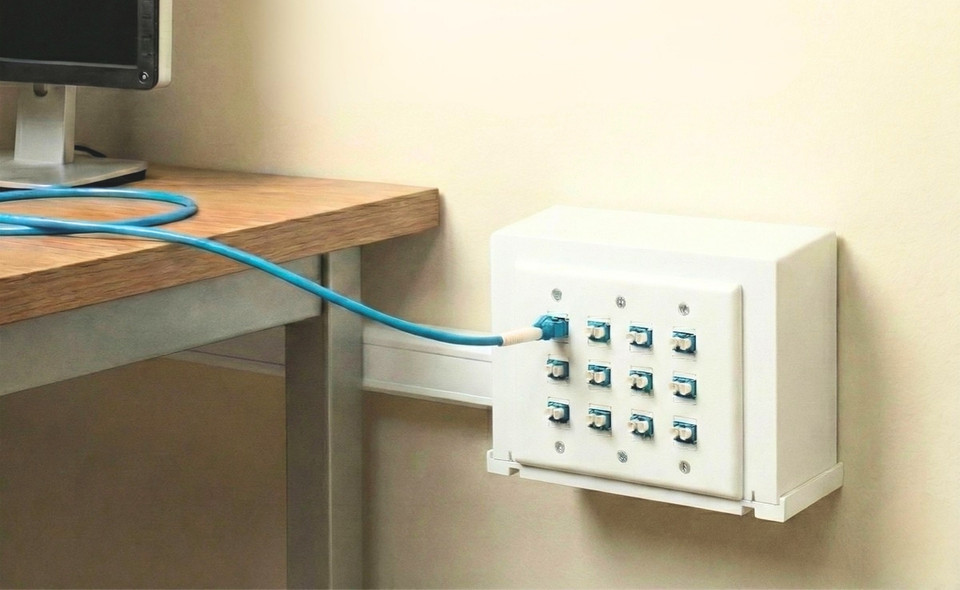

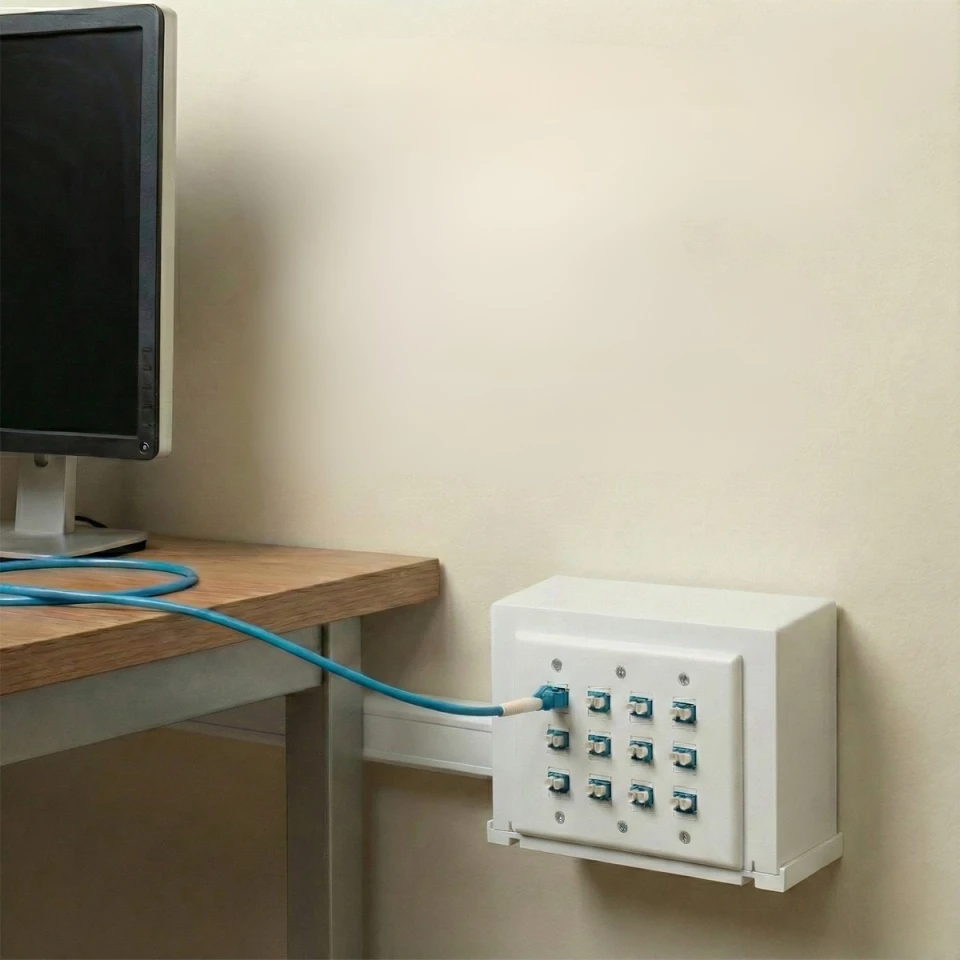

• Versatile Mounting: The enclosure supports multiple mounting configurations, including wall-mount, under-desk, or raceway-embedded installations, enabling seamless integration into a wide range of fiber distribution environments such as FTTH, FTTO, and LAN systems.

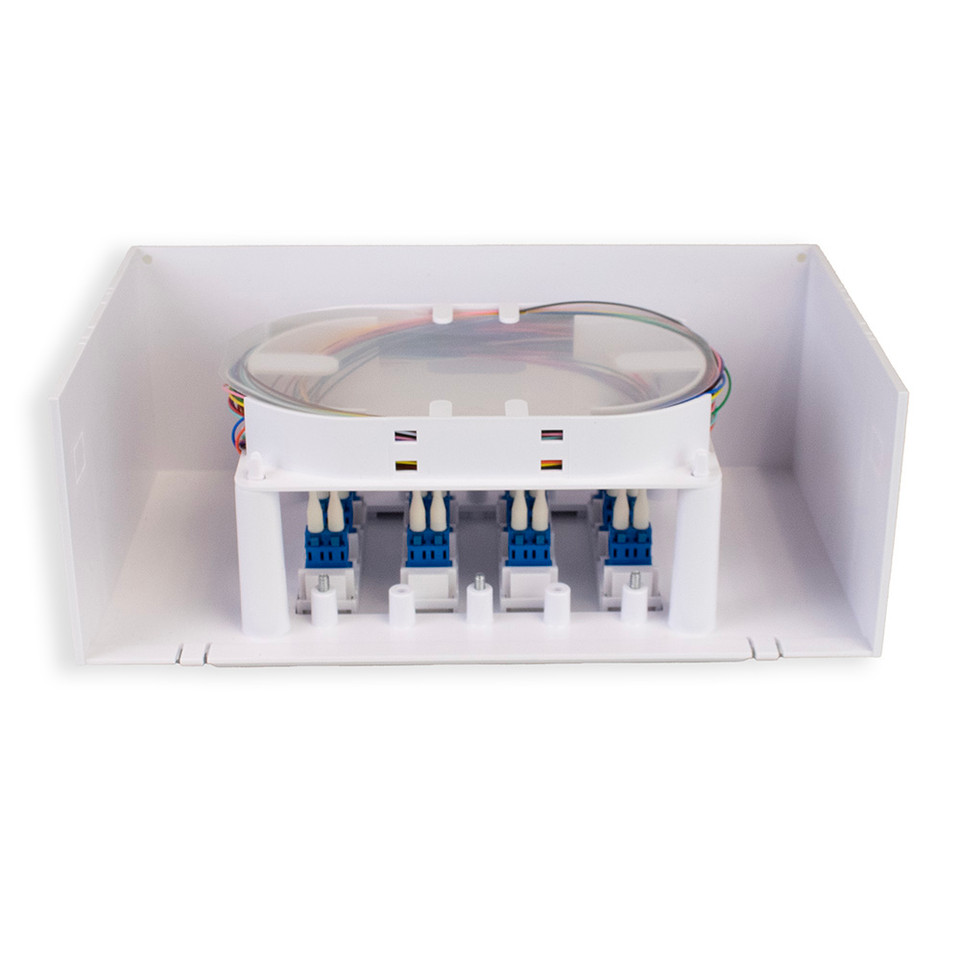

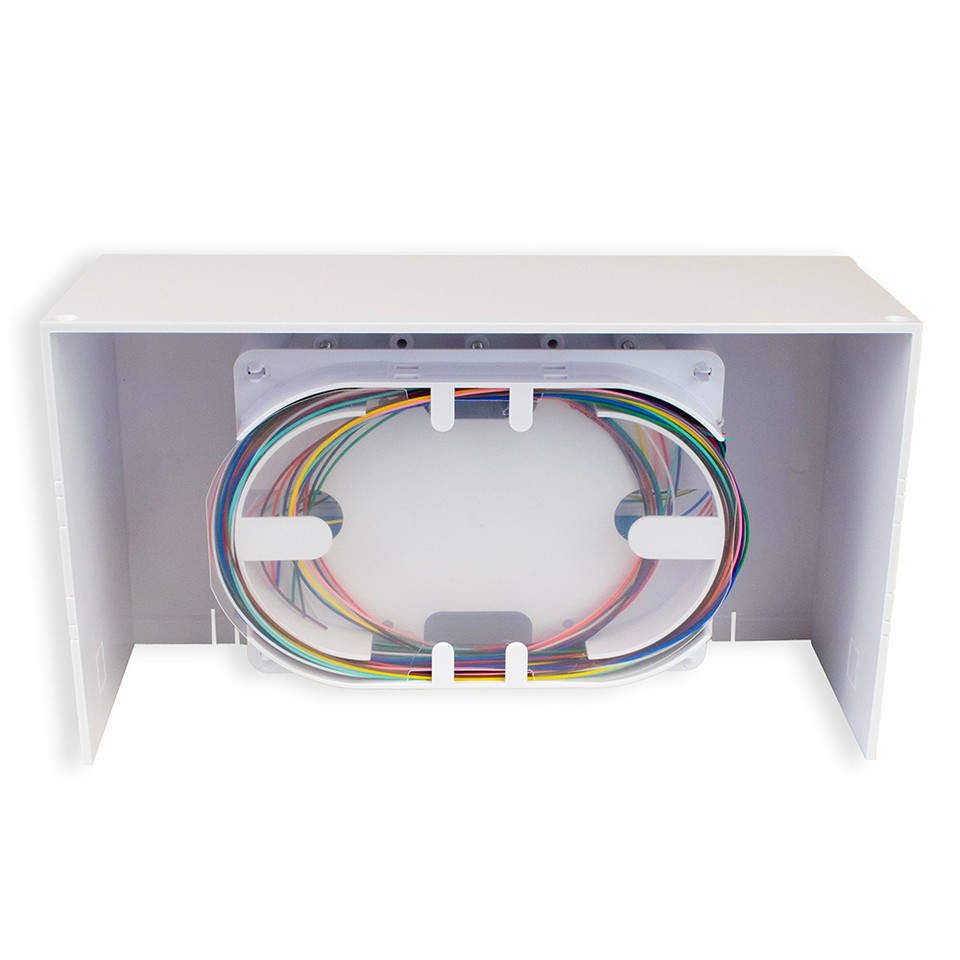

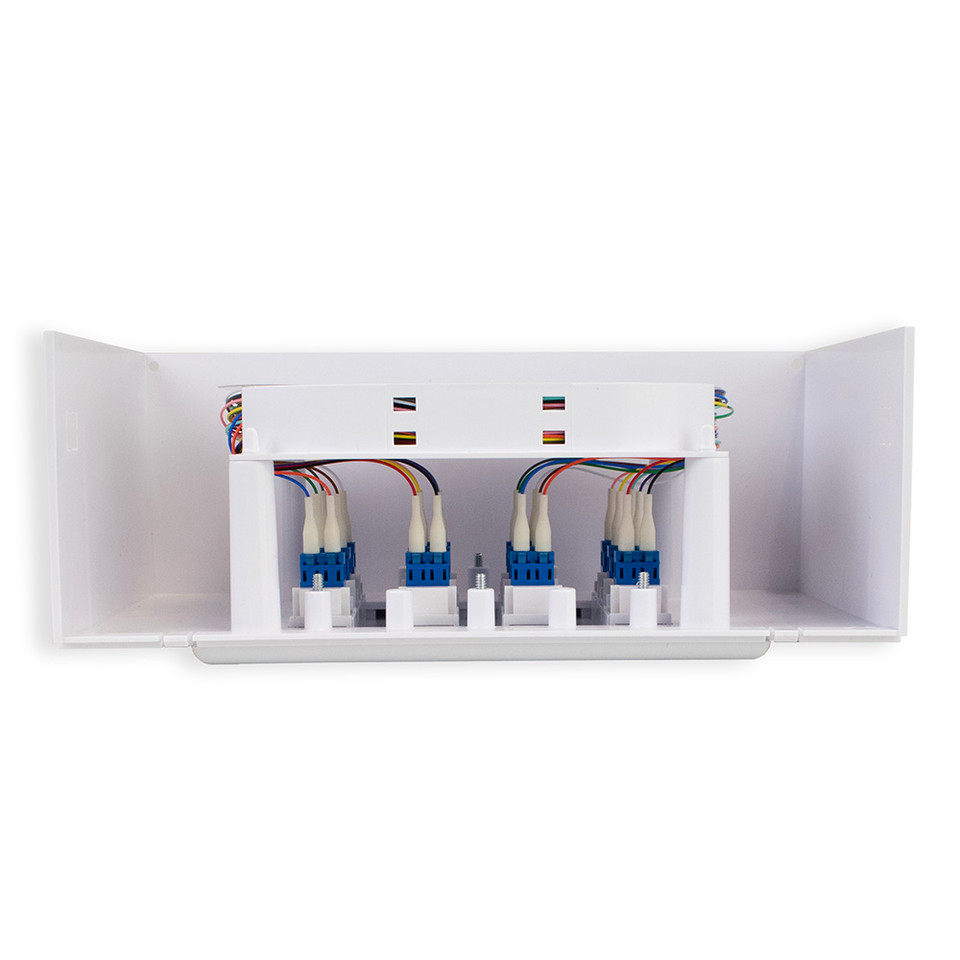

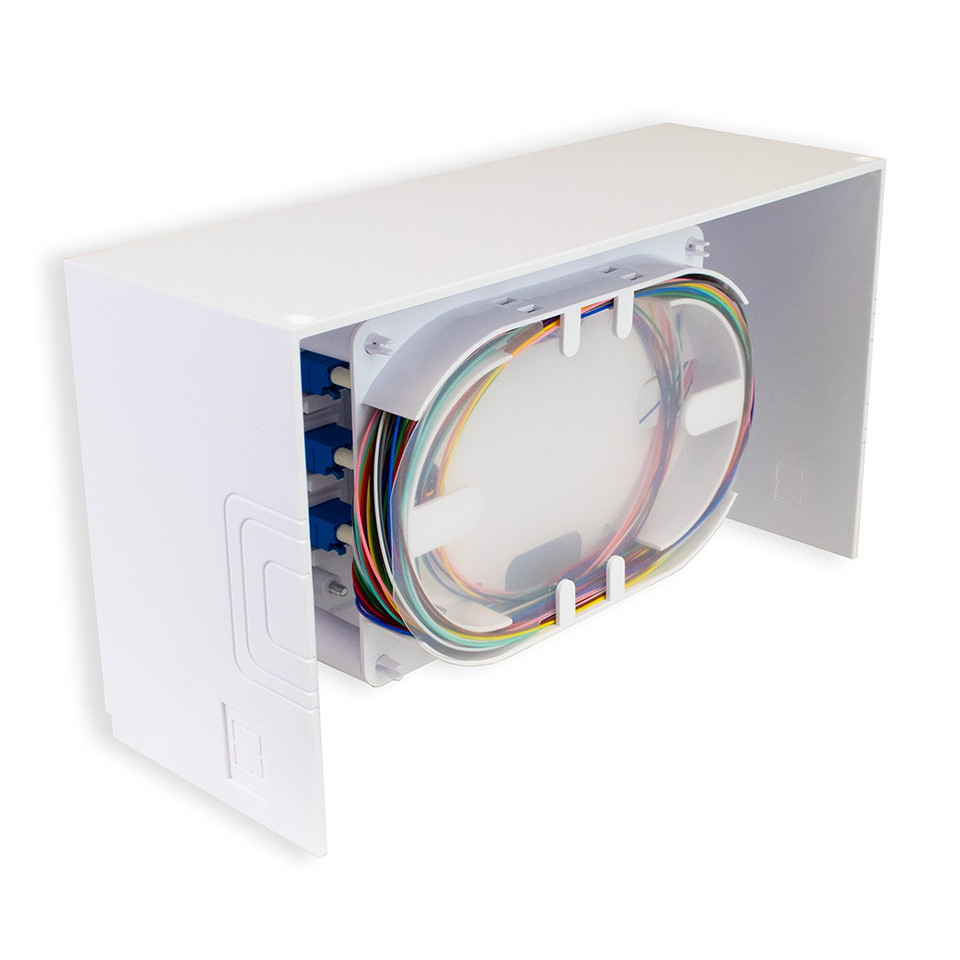

• Cable Termination & Protection: Internally, the unit includes a splice tray and fiber management structure that maintains proper bend radius and mechanical isolation of fiber terminations. This protects fiber termination from mechanical stress and environmental damage while allowing for slack fiber storage.
• Connector Compatibility: The enclosure supports installation of standard keystone style adapters (LC, SC, ST, FC) as well as newer high-density form factors such as MDC, CS, and SN. It is also compatible with MPO/MTP and MMC harness systems, making it suitable for both legacy and next-gen fiber deployments.
• Network Classification / Security Enclave Colors: By utilizing Keyed LC couplers the FTTD supports government military facilities which are often color-coded physical cables, patch cables, couplers used by security classification levels.
  • Red:       SIPRNet (Secret Internet Protocol Router Network / Mid-level classification)
  • Yellow:  JWICS (Joint Worldwide Intelligence Communications System / Top Secret)
  • Green:   NIPRNet (Non-Classified Internet Protocol Router Network / Unclassified)
  • Blue:     BICES (Bi-national Interoperable Communications/Sensitive unclassified or specific coalition enclaves)
• Easy Access & Assembly: A snap-on cover mechanism enables quick installation and maintenance without specialized tools. The enclosure accommodates direct connector termination, fusion splicing, or harness-based installations.
• Material & Build: Constructed from durable ABS polymer with high impact resistance, the enclosure ensures long-term physical stability and protection in commercial and industrial settings.

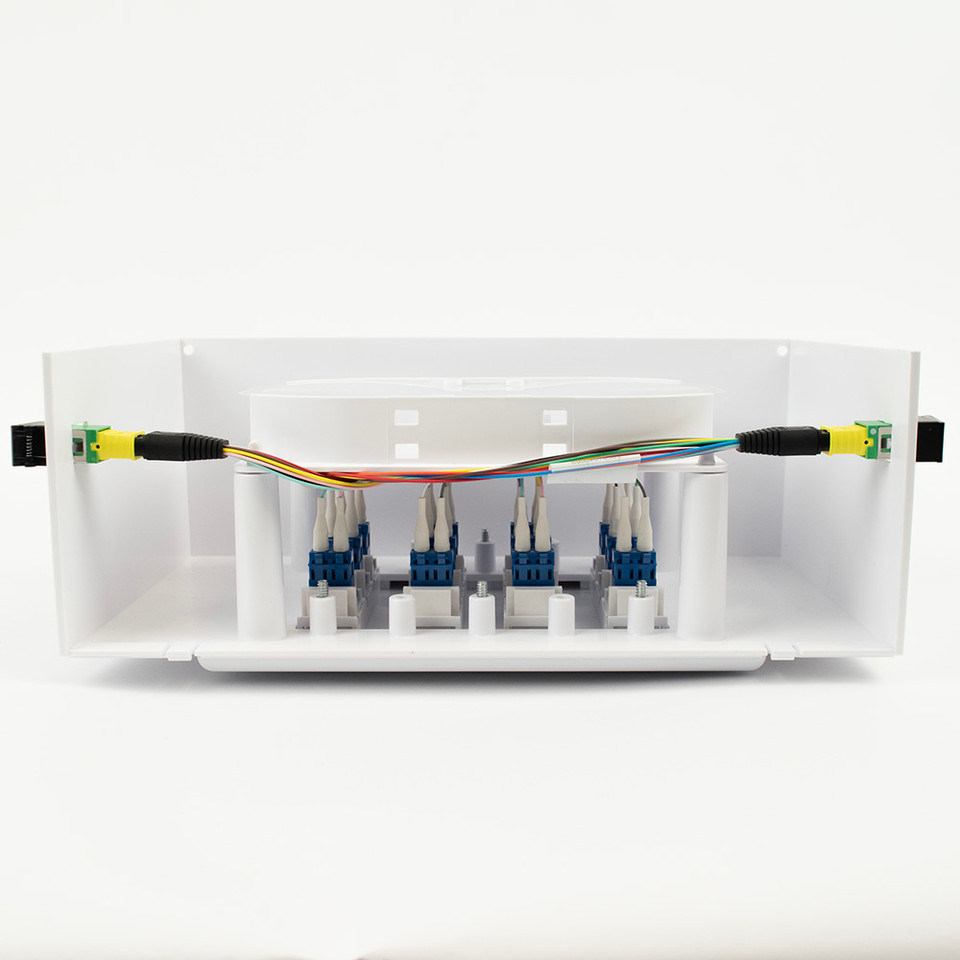

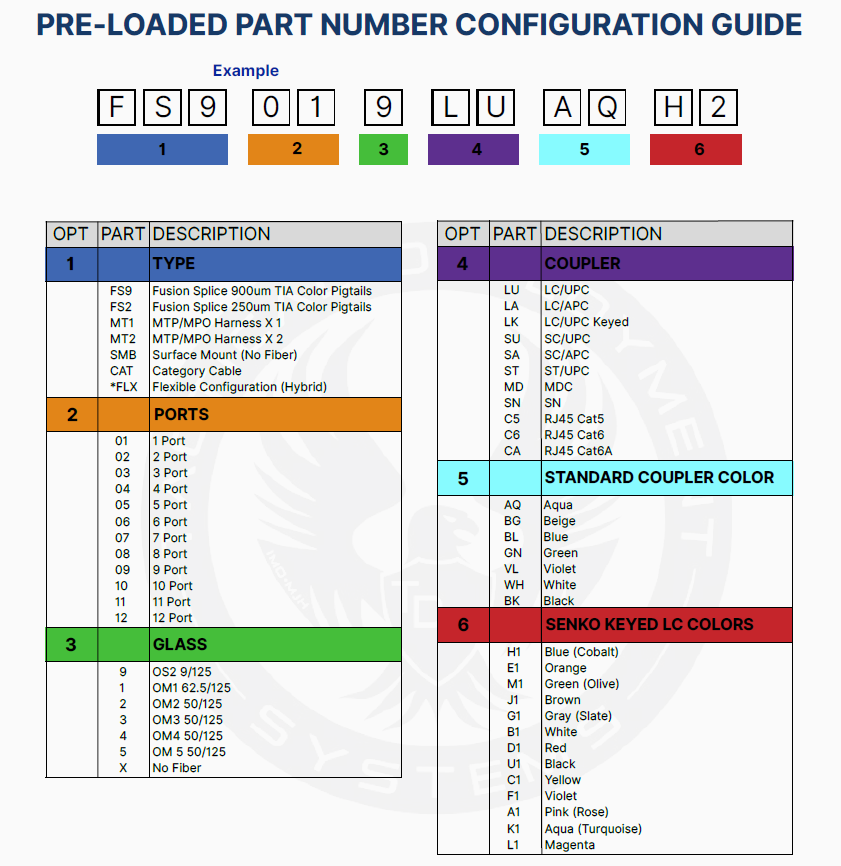

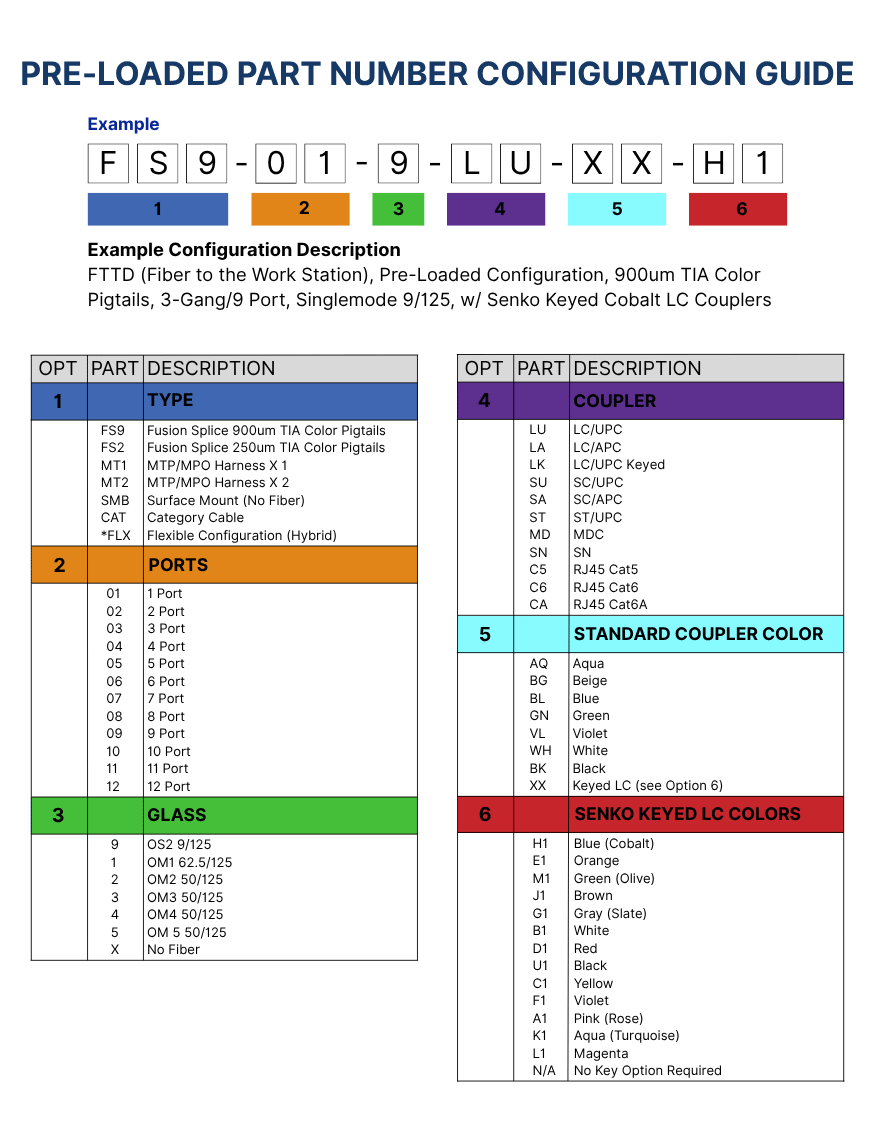

• Pre-Assembled Configuration: FTTD Enclosures can be purchased loaded and ready to deploy. Configuration options include different combinations of couplers, MTP/MPO Harnesses, and/or ready-to-splice pigtails.

Capacity:

• Supports standard 3 Gang Faceplates for up to 12 LC duplex ports (24 fibers) in a single unit.
• Internal layout designed for efficient routing of incoming and outgoing fibers with an emphasis on preserving minimum bend radius and reducing insertion loss risk.

Specifications:

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Color: White
• Dimensions: 5.25 in. (W) × 9.5 in. (L) × 3.5 in. (H)
• Weight: 1.2 lbs

Additional Information:

* Patent Pending 19/382,988
