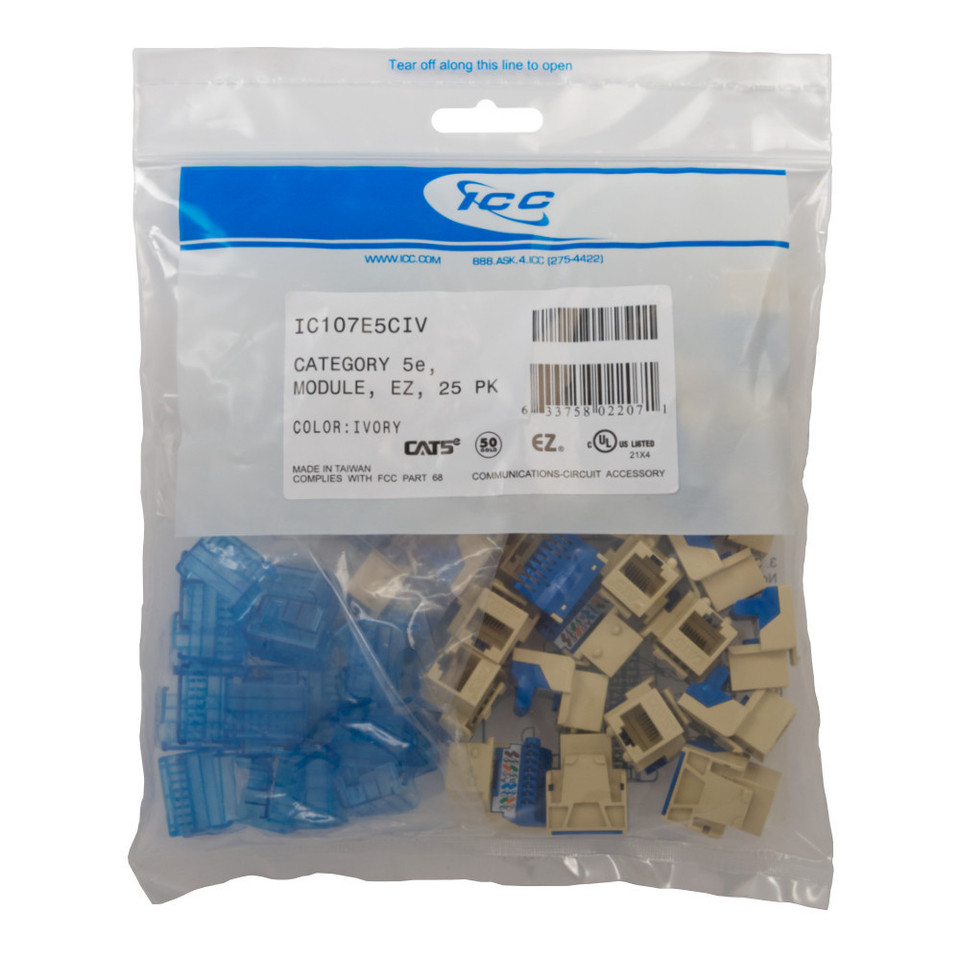

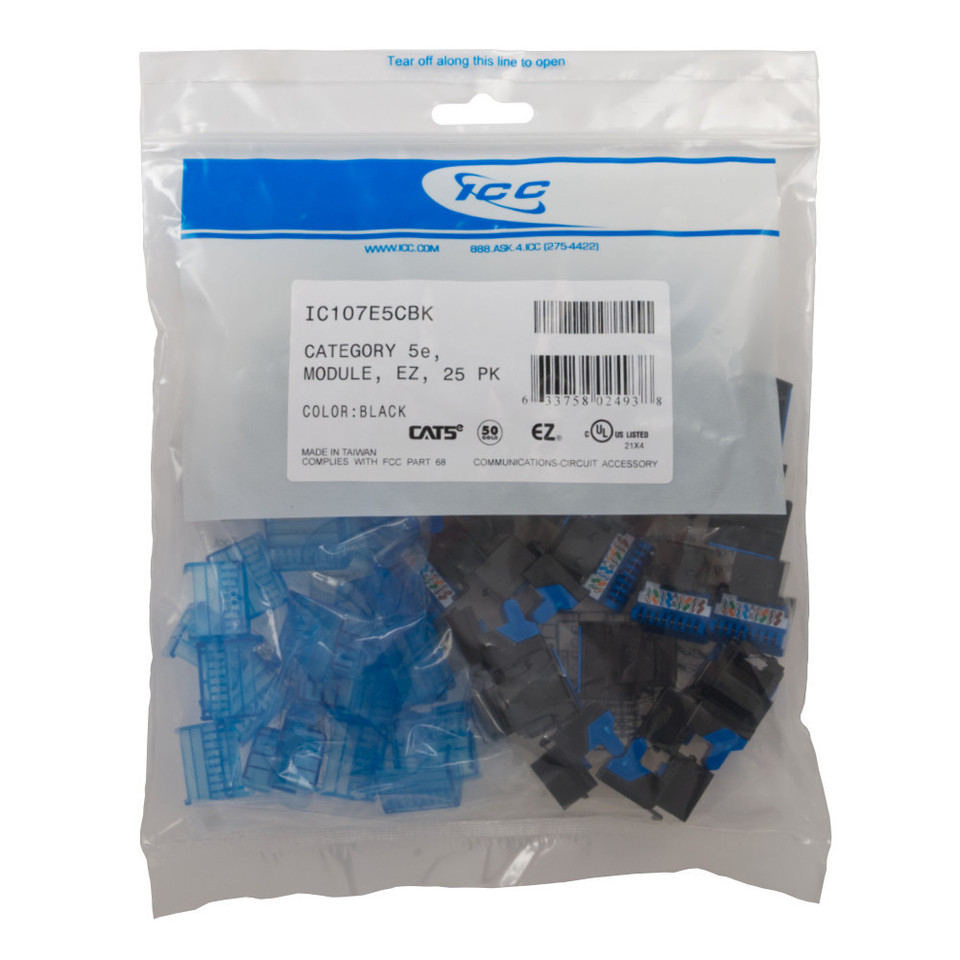

The 25-pack EZ Category 5e modular jacks, RJ-45 keystone jacks are 8-position 8-conductor (8P8C) and are packaged in bags with a reseal able strip allowing the bags to be reused multiple times preventing loss or mixing of colors or types of modular jacks. The bags have a clear lower area allowing for easy part identification.
Product Features
- CAT 5e rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
- PCB technology provides maximum performance and superior signal quality
- Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
- Exceeds ANSI/TIA/EIA-568-B.2 Category 5e connecting hardware requirements
- Engineered to provide 110 IDC termination reducing installation time
- One piece termination cap allows for a quick and easy termination
- Includes an integrated TIA-568A/B color wiring diagram
- Backwards compatible to all lower rated category components
- Compatible with all IC107 faceplates, inserts, surface mount boxes and blank patch panels
- Compatible with all IC108 furniture faceplates, bezels and surface mount boxes
- Used with ICC Category 5e ICPCS5 and ICPCS9 series patch cords and 110 punch down tool ICACSPDT00
- Available in black, blue, ivory, orange, red, white and yellow
- 25 modules packaged in packaging bag with 25 termination caps packaged in a separated bag and included in packaging bag
- Installation instructions
- MSR-0399-2 included in packaging bag
Specifications
Cat 5e Module:
- Electrical:
- Current Rating: 1.5 Amps
- Insulation Resistance: 500 Mohms Min
- Contact Resistance: 20 Mohms Max
- Dc Resistance: 0.1 Ohm Max
- Transmission Performance Exceeds Category 5e
- Connecting Hardware Requirements Specified In Tia/Eia-568-b.2 When Used With Compatible Horizontal Cable
- Mechanical:
- Plug Insertion Life: 750 Cycles Min
- Plug & Jack Contact Force: 100 Grams Min Using Fcc Approved Plug
- Plug Retention Force: 30 Lbs Min
- Temperature: -40° To 150° F (-40° To 68° C)
- Physicals:
- Housing: ABS, UL 94V-0
- Jack Wiring: 50 Micro Inches Of Gold Over 100 Inches of Nickel
- Connector: Insulation Displacement Connector (IDC)
- Accepts 22~24 Awg Solid Wire
- Colors: XX: BK-Black, BL-Blue, YL-Yellow, IV-Ivory, OR-Orange, RD-Red and WH-White
Termination Cap:
- Material: PC, UL 94V-0
- Color: Light Blue
