OCC, DX T-Series, 24-Strand, 900um Tight Buff, I/O, OFNP, OM3, 50/125, MM, Aqua (Per Foot)

click to zoom in

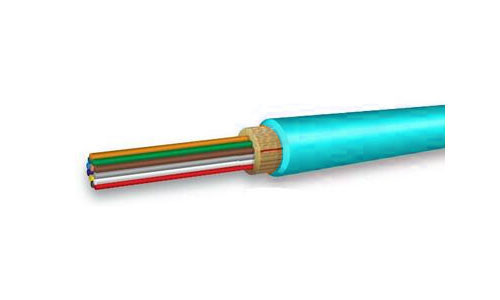

24-Strand OCC DX Series 900um Tight Buffered, Indoor Dist., OFNP Plenum, MM 50/125 OM3
24-Strand OCC DX Series 900um Tight Buffered, Indoor Dist., OFNP Plenum, MM 50/125 OM3, cross-section

OCC, DX T-Series, 24-Strand, 900um Tight Buff, I/O, OFNP, OM3, 50/125, MM, Aqua (Per Foot)

Item#:
DX024TALT9QP
List Price: $3.52
$3.18
(You save $0.34 )
Condition:
New
Weight:
0.05 LBS
Minimum Purchase:
1000 units
Customer Service

Need Help?

Speak to one of our experts.

Phone Icon

804-716-9007

24-Strand OCC DX Series 900um Tight Buffered, Indoor Dist., OFNP Plenum, MM 50/125 OM3

OCC, DX T-Series, 24-Strand, 900um Tight Buff, I/O, OFNP, OM3, 50/125, MM, Aqua (Per Foot)

List Price: $3.52
$3.18
(You save $0.34 )
Description

OCC, DX, Distribution Series, 24-Strand, 900um Tight Buffered, Indoor/Outdoor, OFNP Plenum Rated, OM3, 50/125, Multimode, Aqua Jacket

Applications

  • Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces
  • Ideal configuration for a single termination point requiring multiple fibers
  • Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments

Features

  • UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces
  • Low-smoke PVC jacket
  • 2 to 24 fibers
  • Cable materials are Indoor/Outdoor UL-Listed OFNP and also UV, water and fungus resistant
  • High performance tight-buffered coating on each fiber for environmental and mechanical protection
  • 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber.
  • Helically stranded core for flexibility, survival in difficult installations, and mechanical protection for the fibers
  • High specific strength-to-weight ratio and compact cable design for limited conduit space and tight bends in long cable pulls
  • High crush resistance may eliminate the need for innerduct
  • Can be installed outside and in plenum or riser pathways inside, eliminating the need to transition cable types between environments
  • Interlocking armor can be applied to cables as an alternative to conduit installation

Characteristics

Characteristic Plenum Indoor/Outdoor (K)
Operating Temp -40°C to +70°C
Storage Temp -40°C to +70°C
Install Temp 0°C to +60°C
Flame Retardancy UL Listed Type OFNP NFPA262 FT6 (CSA C22.2 No. 232)
Crush Resist 1500 N/cm (TIA/EIA-455-41A)
Impact Resist 1000 impacts (EIA/TIA-455-25A)
Flex Resist 1000 cycles (TIA/EIA-455-104A)
Jacket Type K

Standards

Optical Cable Corporation Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • UL 1651
  • ANSI/NFPA 262
  • GR-409-CORE
  • ICEA-S-104-696
  • ICEA-S-83-596
  • TIA-568
  • TIA-598
  • UL-listed type OFNP in accordance with NEC sections 770-179 (A) and 770-154 (A) for use in ducts, plenums, and air-handling spaces. Meets or exceeds requirements for intra-building fiber optic cables as outlined in GR-409-CORE.

Specifications

Plenum Indoor/Outdoor (T)

  Tensile Load Minimum Bend Radius
Fiber Count Part Number Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 DX002T***9*P 3.8
(0.15)		 15.0
(10.0)		 1,400
(150)		 180
(40)		 5.7
(2.2)		 3.8
(1.5)
4 DX004T***9*P 4.5
(0.18)		 18.0
(12.0)		 1,200
(270)		 400
(50)		 6.7
(2.6)		 4.5
(1.8)
6 DX006T***9*P 4.7
(0.19)		 18.0
(12.0)		 1,400
(310)		 450
(100)		 7.1
(2.8)		 4.7
(1.9)
8 DX008T***9*P 5.7
(0.22)		 37.0
(25.0)		 1,600
(360)		 525
(120)		 8.6
(3.4)		 5.7
(2.2)
10 DX010T***9*P 6.1
(0.24)		 44.0
(29.0)		 1,800
(400)		 600
(135)		 9.1
(3.6)		 6.1
(2.4)
12 DX012T***9*P 6.2
(0.24)		 40.0
(27.0)		 1,800
(400)		 600
(135)		 9.3
(3.7)		 6.2
(2.4)
18 DX018T***9*P 6.7
(0.26)		 40.0
(29.0)		 1,800
(400)		 600
(135)		 10.1
(4.0)		 6.7
(2.6)
24 DX024TALT9QP 8.1
(0.32)		 66.0
(44.0)		 3,000
(670)		 1,000
(220)		 12.2
(4.8)		 8.1
(3.2)
Downloads
OCC-DX-SERIES-Plenum-Indoor-Outdoor-Specifications-21.pdf
