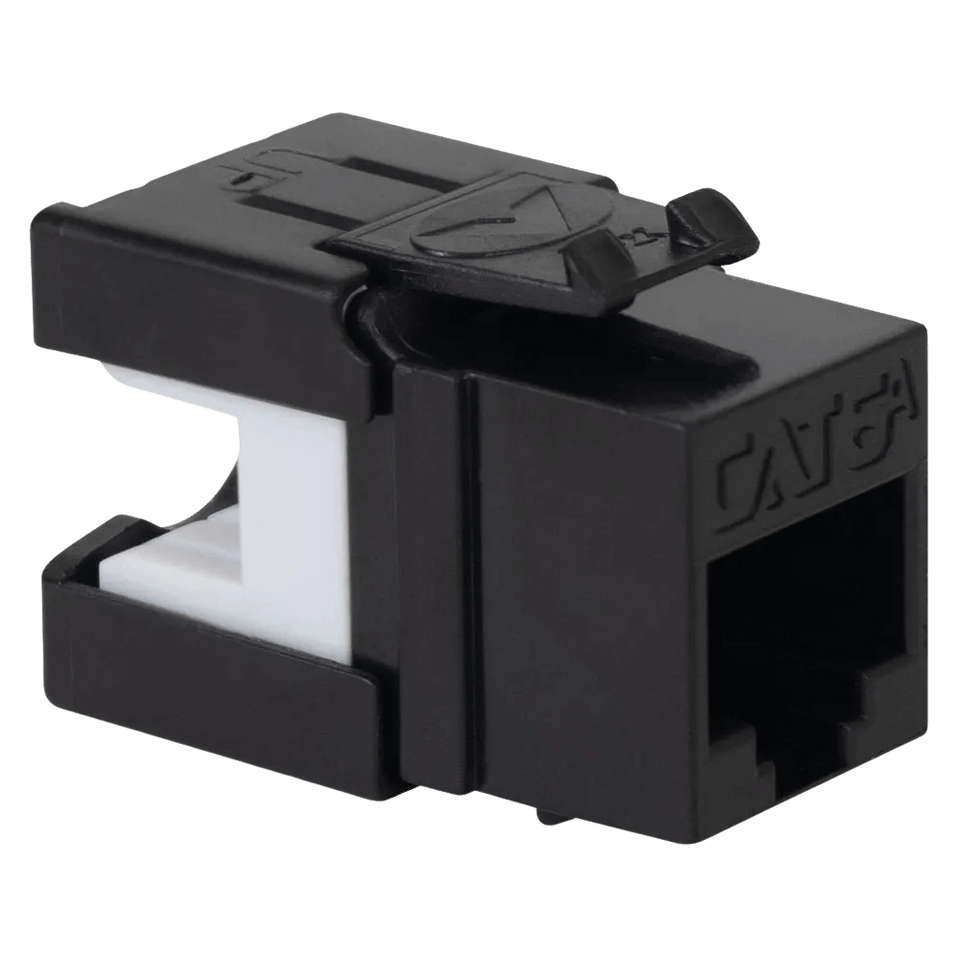

The CAT 6A 10Gig UTP modular jacks provide transmission performance beyond 500MHz and Alien Crosstalk requirements exceeding the industry standards set by TIA/EIA-568-B.2-10 for supporting the operation of 10Gig Ethernet applications (10GBASE-T). It is designed with a shielded termination cap which minimizes additional AXT from neighboring connectors. It also features twisted pair separation posts which minimizes untwisting of pairs to allow for efficient installation and long-term peak performance. The modular jacks are also backwards compatible supporting current CAT 6, CAT 5e, and voice network applications.
Product Features
- CAT 6A rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
- PCB technology provides maximum performance and superior signal quality
- Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
- Meets and exceeds TIA 568B-2.10 Category 6A cabling requirements
- Designed with rear 110 IDC reducing termination time
- Used with ICC 110 single-blade punch down tool ICACSPDT00
- Includes an integrated TIA-568A/B color wiring diagram
- Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area
- Compatible with ICC CAT 6A blank patch panels IC107PPU6A
Specifications
1. CAT 6A Module: A. Material: Front housing: ABS, UL 94V-0 Rear housing: PC 94V0 Jack wiring: 50 micro inches of gold over 100 inches of nickel Connector: Insulation displacement connector (IDC); accepts 23-24 AWG solid wire 2. Shielded termination cap: A. Material: SPCC B. Color: Black
