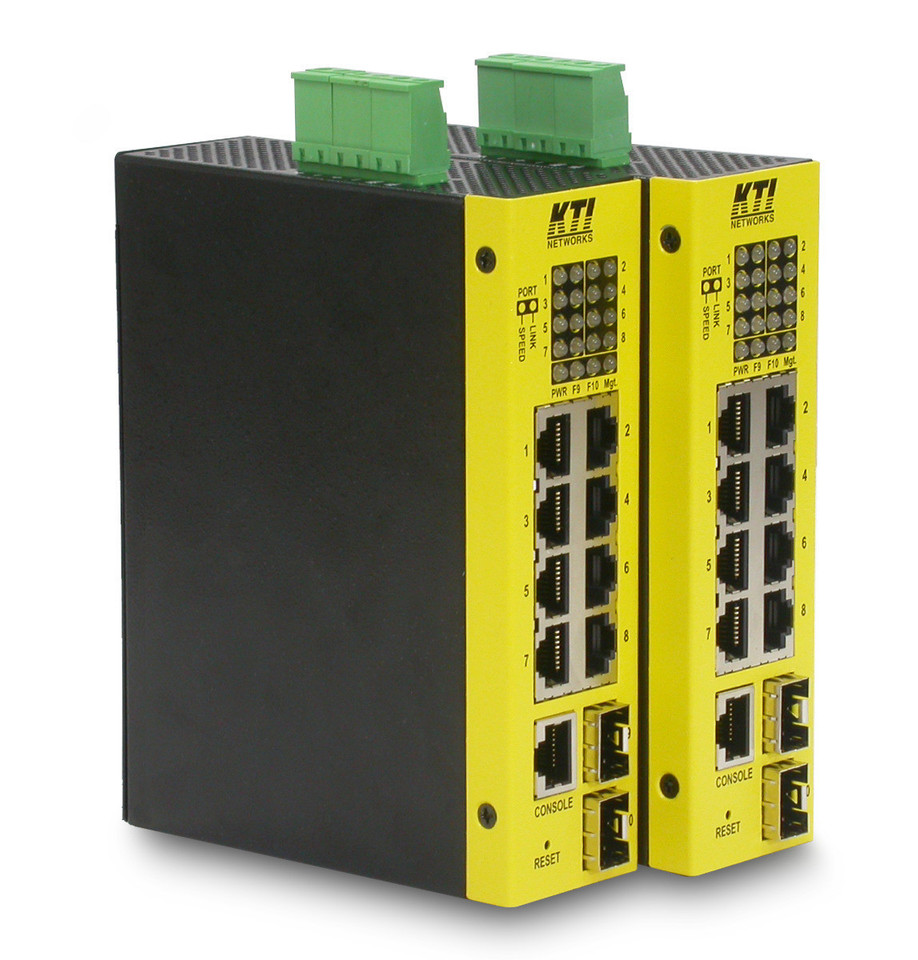

Industrial Managed 10-Port L2 Gigabit Ethernet Switches with 2 dual-speed SFP Slots and 4 PoE+ PSE Ports
- The KGS-1060 series is an 10-port industrial managed Gigabit Ethernet switch which is featured with the following switched ports:
- Eight 10/100/1000Mbps Gigabit copper ports
- Two dual-speed SFP slots for 100Base-FX 1000Base-X
| |
Product highlights :
- Eight 10/100/1000Mbps RJ-45 and two dual-speed SFP slots
- All copper ports support auto-negotiation and auto-MDI/MDI-X detection
- Two SFP slots support dual speed for 100BASE-FX and 1000BASE-X SFP transceivers
- Full wire speed forwarding
- Supports 802.3x flow control for full-duplex and backpressure for half-duplex
- Port link aggregation function with LACP support
- Supports SFP with Digital Diagnostic Monitoring (DDM)
- Alternatively powered via PoE if direct DC power not available
- Optional four 802.3at-compliant PoE PSE ports
- Supports PoE PSE Redundancy
Standard :
- IEEE 802.3, 802.3ab, 802.3z, 802.3x, 802.3at, 802.1x, 802.1w,
802.1D, 802.1Q
Network ports :
- 8 10/100/1000Mbps Gigabit copper ports
- 2 1G/100Mbps SFP slots
DC Power Input :
- Screwed terminal block: 2 pairs of +/- contacts
- Operating voltage range: +7 ~ +60VDC
- Voltage for PoE support: +45 ~ +57VDC
Power Consumption:
- 9W max. (Full load with no PoE support)
- 130W max. (Full load with 4 PoE+ max. output)
Dimension :
- 42 x 106 x 140 mm (WxDxH)
|
