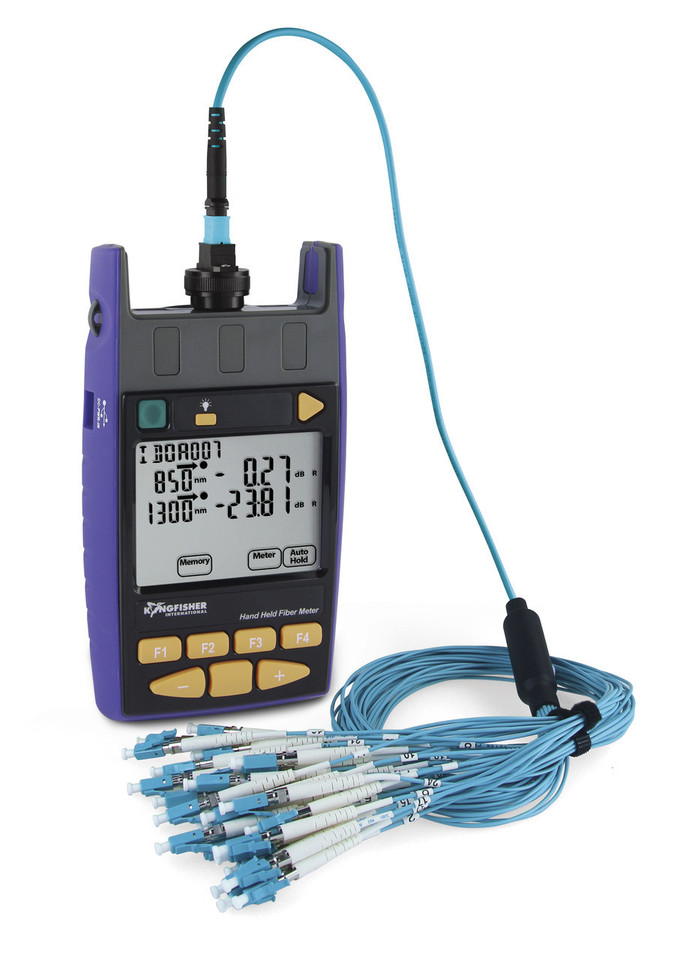

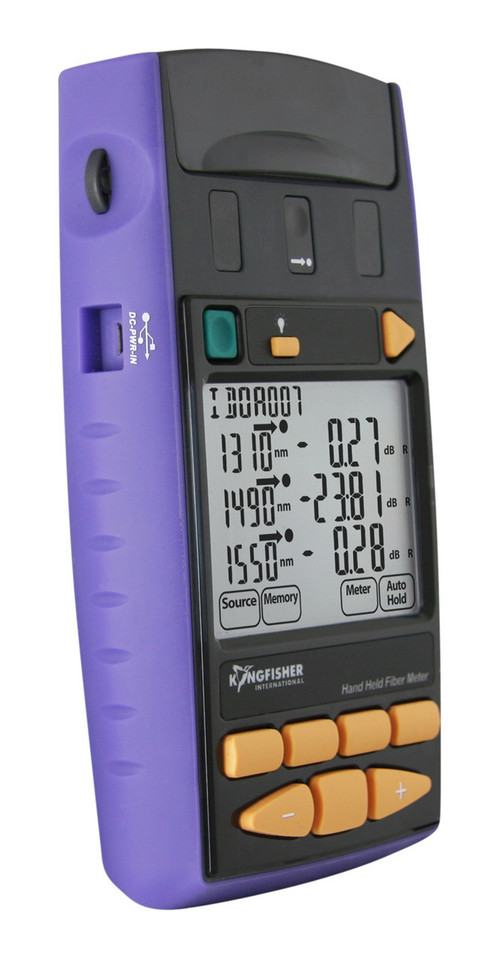

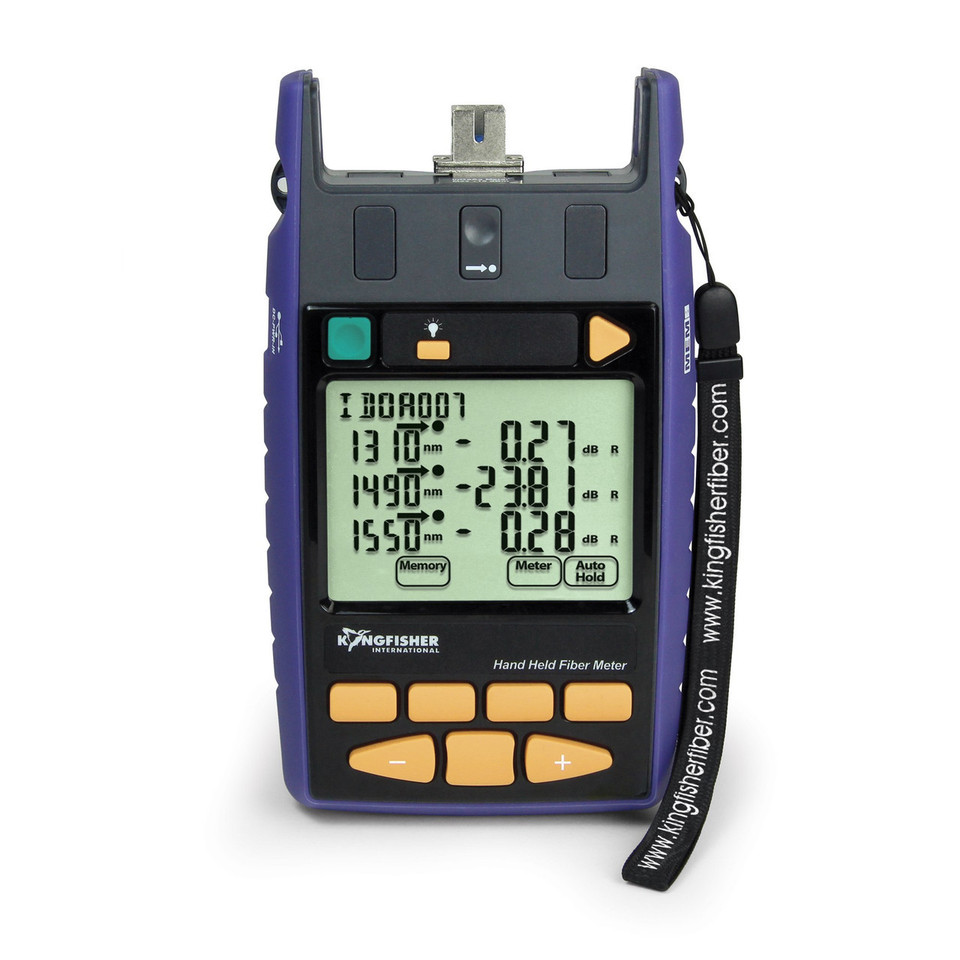

High Power Fiber Optic Power Meter KI 2600-H6

The KI 2600-H6 is a specialist very-high-power fiber optic power meter to test power, loss and continuity on single mode fiber optic systems up to +33 dBm / 2 Watts. The detector uses an innovative attenuator device for improved overall test accuracy. This full-feature instrument has comprehensive report generation capabilities and a variety of useful features for maximum productivity and flexibility.

Easy to use, rugged & versatile
4 calibration λ, 5% accuracy ISO/IEC 17025 traceable
Improved high power accuracy
Autotest with up to 3 λ displayed
Long battery life & micro USB external power
Large back-lit LCD, sunlight readable
Interchangeable connectors
Large memory with text naming & time stamp

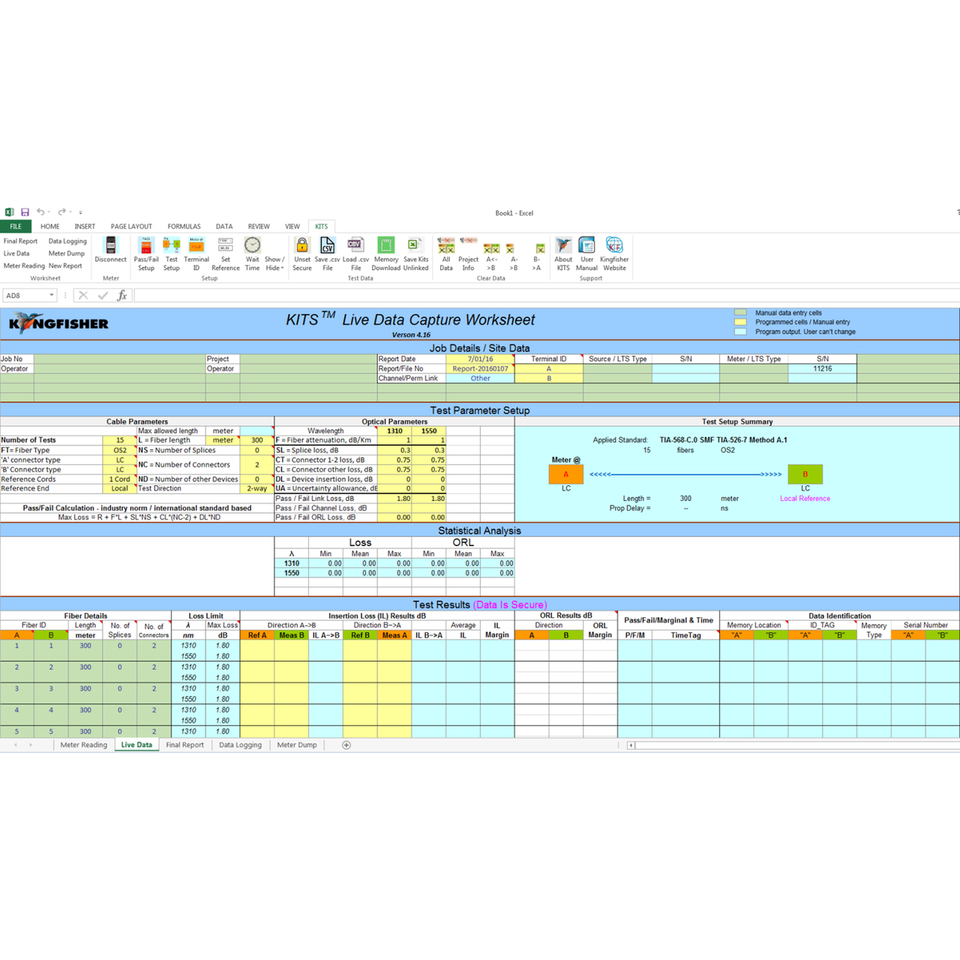

KITS™ reporting software with data security

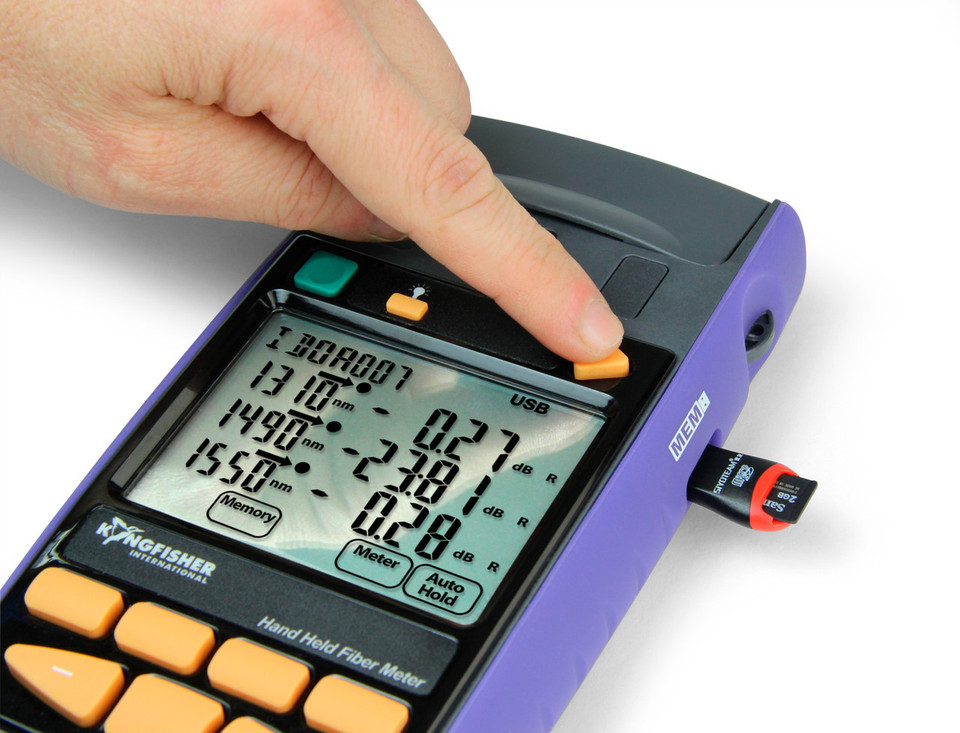

One button memory dump to USB key
MultiFiber ID tone detection
Full QA & linearity test report

Range of fiber connector adapters available

KI2600-H6 specifications

Detector type	InGaAs - High Power
Calibration accuracy	5% (0.21 dB)
Response wavelength	800 ~ 1700 nm
Calibration wavelengths	1310, 1480, 1550, 1610 nm
Power range	+33 ~ -47 dBm
Mid-range linearity	0.04 dB (typical)
Total uncertainty	0.35 dB (max)
Wavelength sensitivity (± 30 nm)	0.03 dB (typical)
ID tone detection & Autotest sensitivity	Up to -20 dBm

General Handheld Power Meter KI 2600 Series specifications

Calibration validity	3 years (ISO/IEC 17025)
Resolution	0.01 dB
Polarization sensitivity	< 0.05 dB (typical)
Tone detection	150 ~ 9999 Hz ± 1 %

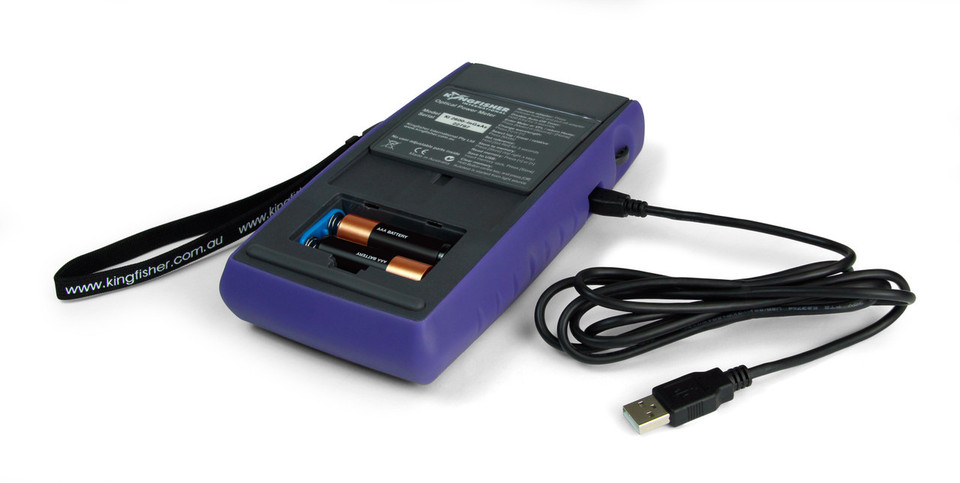

Power	2x AA (LR6) Alkaline / External via USB
Battery life	Up to 1000 hours
Auto-off	Selectable
USB interfaces	USB-micro for power & software / USB-A for memory key
Software	KITS (free download)
Memory	1000 (4-λ tests) / Unlimited on USB memory key
Size	124 x 81 x 25 mm
Unit weight	150 gm
Shipping weight	1.1 kg
Operating / storage temperatures	-15 to 55 °C / -25 to 70 °C
Relative humidity	0 ~ 95 %
Warranty	3 years
