Large Area MPO Optical Power Meter KI 2600XL-InGaAs5
View Manufacturer Brochure

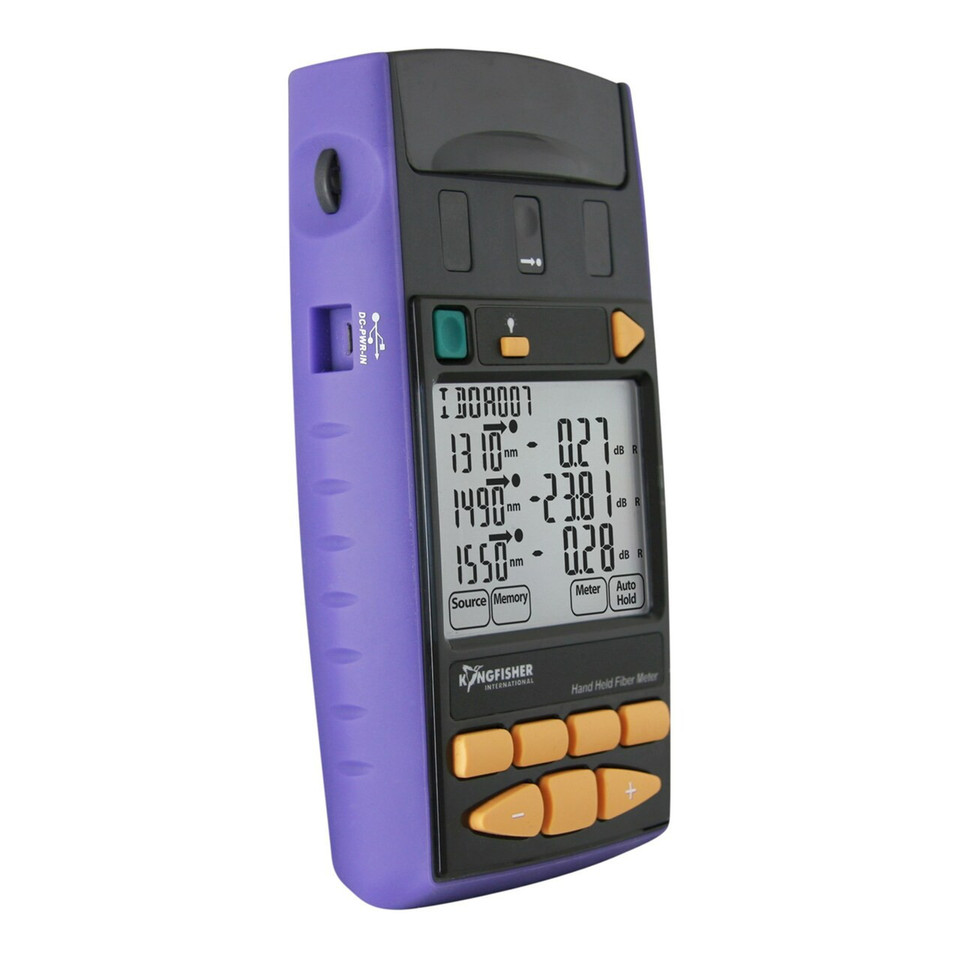

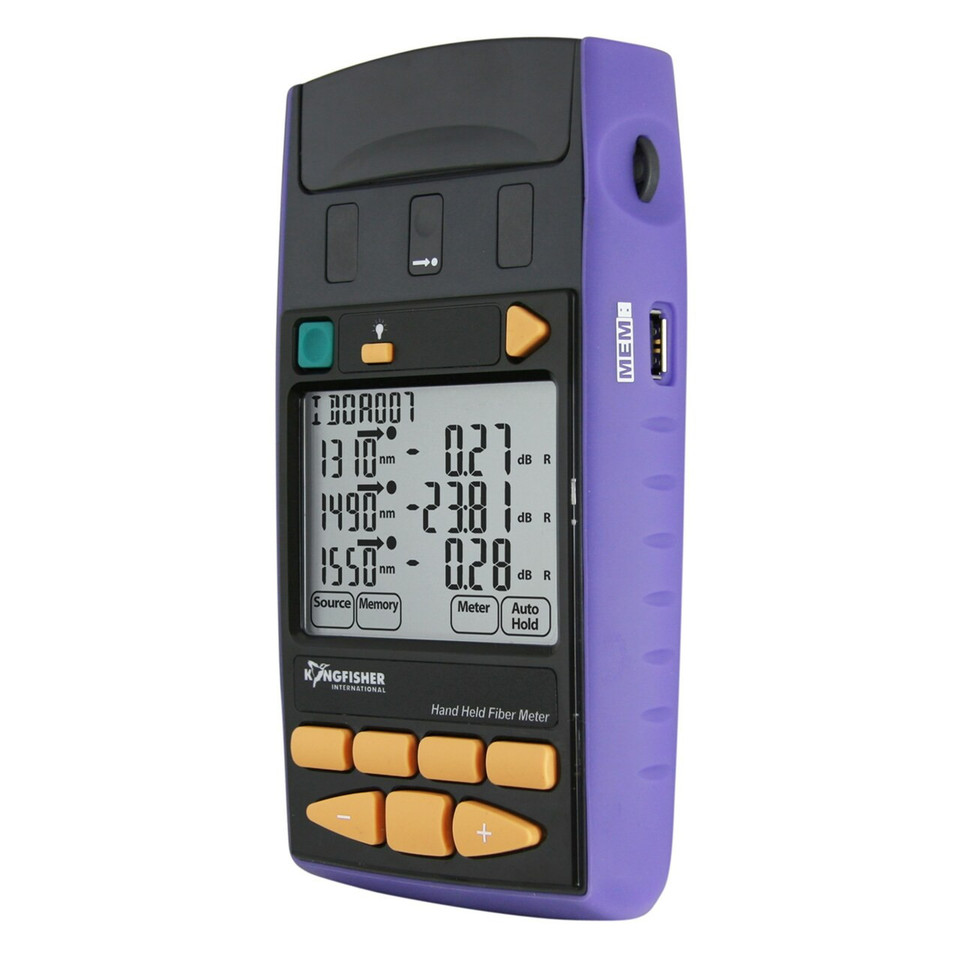

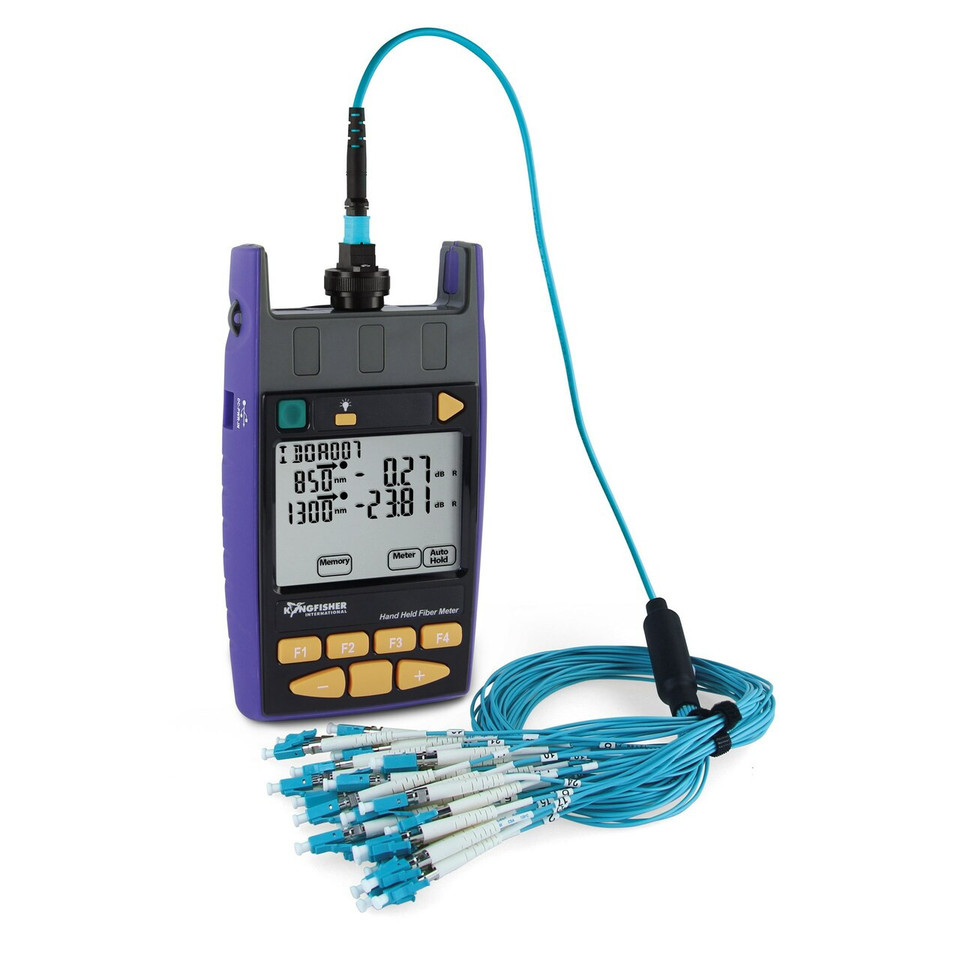

The KI 2600XL-InGaAs5 Handheld Power Meter is used by laboratories and manufacturers, to accurately test power, loss, continuity and faults on single mode fiber optic systems with MPO & other connectors, and free-space beams. This full-feature instrument has comprehensive report generation capabilities and a variety of useful features for maximum productivity and flexibility.
- Easy to use, rugged & versatile
- 27 calibration λ, 1% accuracy ISO 17025 traceable
- Improved high power accuracy
- Autotest with up to 3 λ displayed
- Long battery life & micro USB external power
- Large back-lit LCD, sunlight readable
- Interchangeable connectors
- Large memory with text naming & time stamp

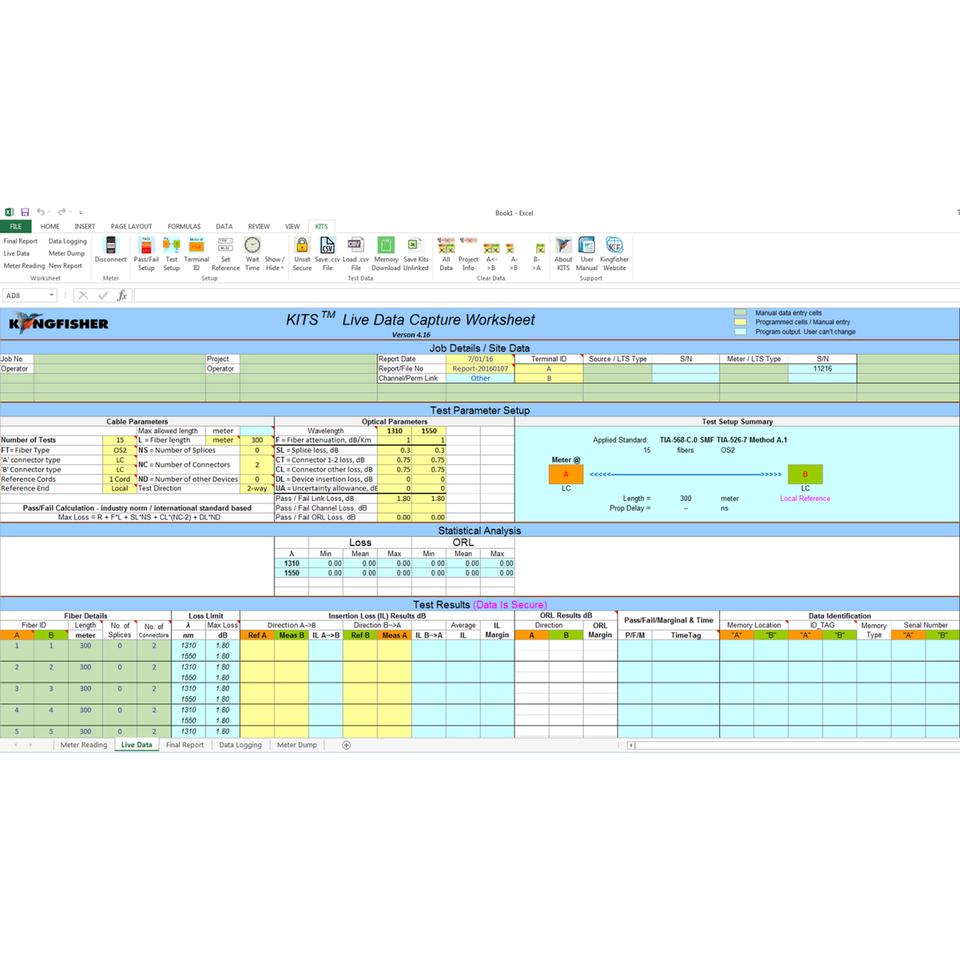

- KITS™ reporting software with data security

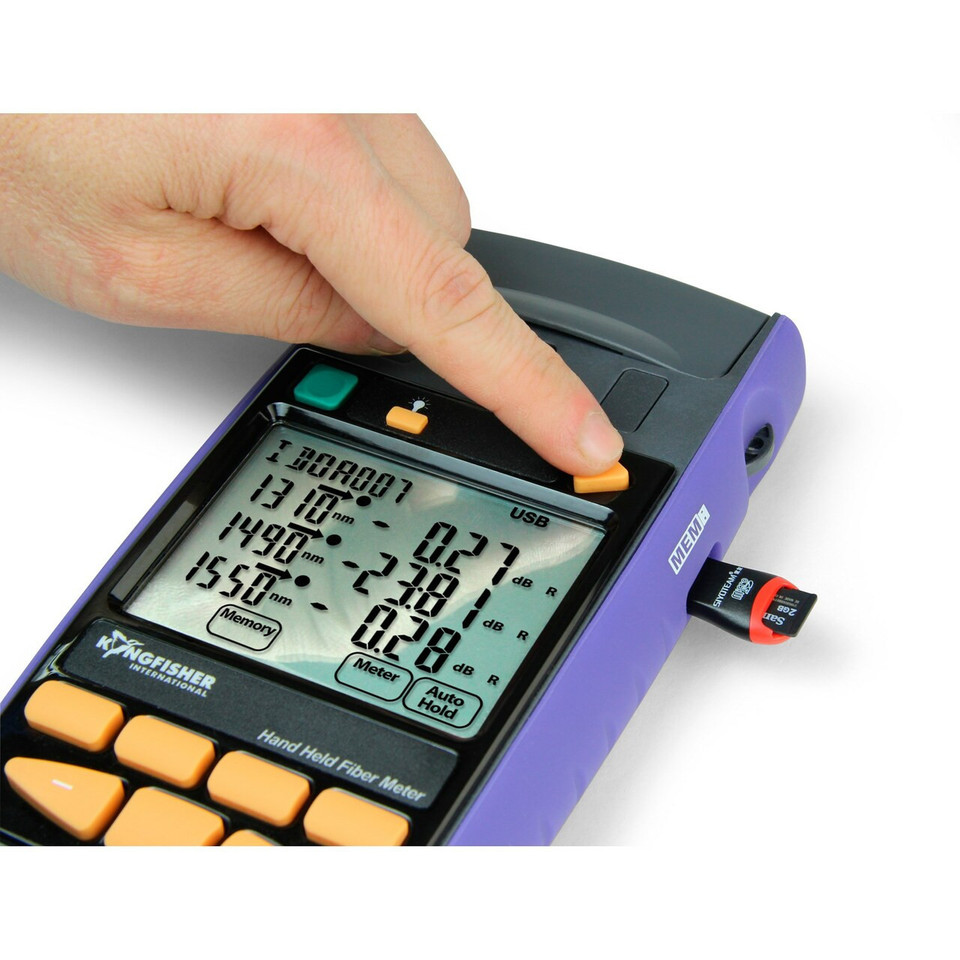

- One button memory dump to USB key
- MultiFiber ID tone detection
- Full QA & linearity test report
Range of fiber connector adapters available
KI2600XL-INGAAS5 specifications
| Detector type | InGaAs (5 mm) |
| Response wavelength | 600 ~ 1700 nm |
| Calibration wavelengths | 780, 820, 850, 880, 910, 940, 980, 1270, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm |
| Power range | +10 ~ -50 dBm (for 780 ~ 940 nm) / +10 ~ -60 dBm (for 980 ~ 1650 nm) |
| Mid-range linearity | 0.04 dB |
| Total uncertainty | 0.35 dB (max) |
| Wavelength sensitivity (± 30 nm) | 0.03 db (typical) |
| Response uniformity across detector | 1 % (0.06 dB) |
| ID tone detection & Autotest sensitivity | -40 dBm |
General KI 2600 Handheld Power Meter specifications
| Accuracy | 1 % (0.06 dB) |
| Calibration validity | 3 years (ISO17025) |
| Resolution | 0.01 dB |
| Polarization sensitivity | < 0.05 dB (typical) |
| Tone detection | 150 ~ 9999 Hz ± 1 % |
| Power | 2x AA (LR6) Alkaline / External via USB |
| Battery life | Up to 1000 hours |
| Auto-off | Selectable |
| USB interfaces | USB-micro for power & software / USB-A for memory key |
| Software | KITS (free download) |
| Memory | 1000 (4-λ tests) / Unlimited on USB memory key |
| Size | 124 x 81 x 25 mm |
| Unit weight | 150 gm |
| Shipping weight | 1.1 kg |
| Operating / storage temperatures | -15 to 55 °C / -25 to 70 °C |
| Relative humidity | 0 ~ 95 % |
| Warranty | 3 years |
