The MTP Elite brand connector is an improved version of the MPO style connector, offering features that benefit the user to get the best possible connection, including a removable housing for reworking the ferrule or changing the connector gender post-assembly.
Other features such as the patented ferrule float and stainless steel guide pin tips (available on male versions) help offer greater durability and accuracy. With this 12-strand fiber optic cable, you can perform an array of functions at a fraction of the space used by standard connector cables.

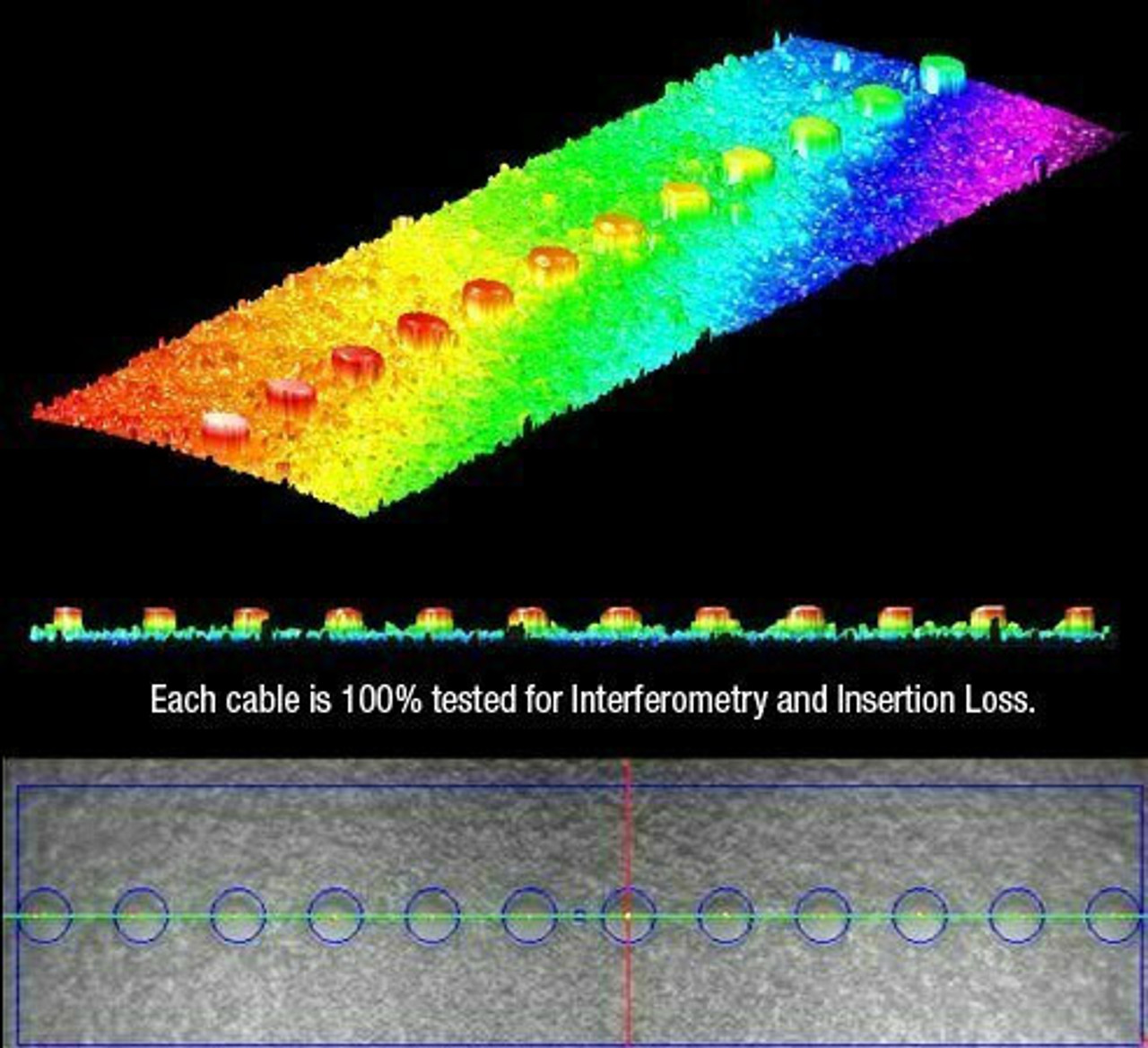

Each cable is assembled in-house our local facility, and tested for interferometry and insertion loss, so enjoy the American-made quality and high performance that LightWave cables provide.
LightWave brand MTP Cables are fully compliant with the guidelines of the Trade Agreements Act (TAA), and are approved for United States Government use.
Choose Your Gender

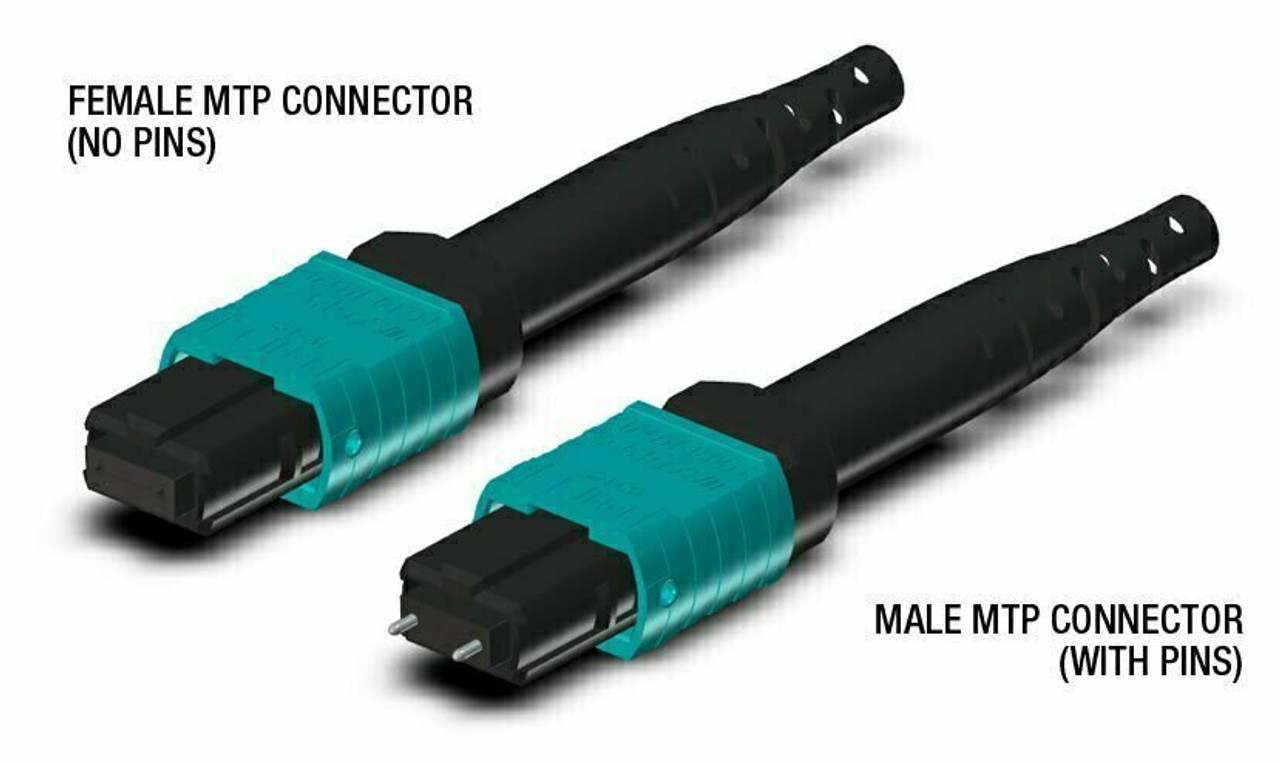

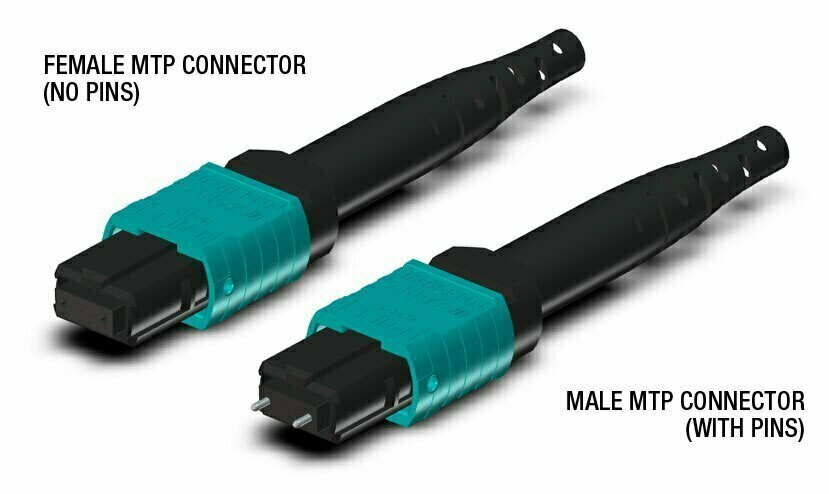

Female to Female - MTP/MPO (No Pin) to MTP/MPO (No Pin)
Female to Male - MTP/MPO (No Pin) to MTP/MPO (With Pin)
Male To - MTP/MPO (With Pin) to MTP/MPO (With Pin)
Choose Your Polarity

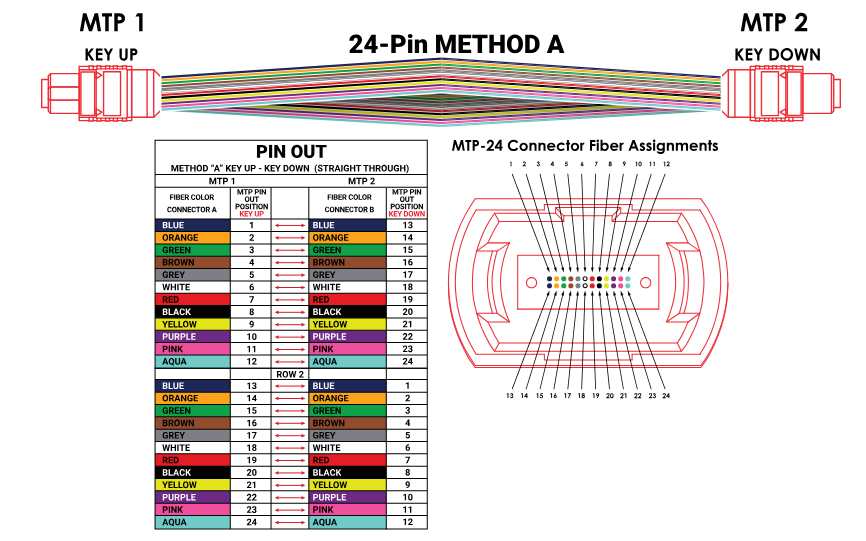

Type A - Straight: Straight-through polarity is typically for connecting patch panels. They are wired in a mirrored configuration, going from Pin 1 on one connector end to Pin 1 on the opposite end, etc.
Type B - Rollover: Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth.

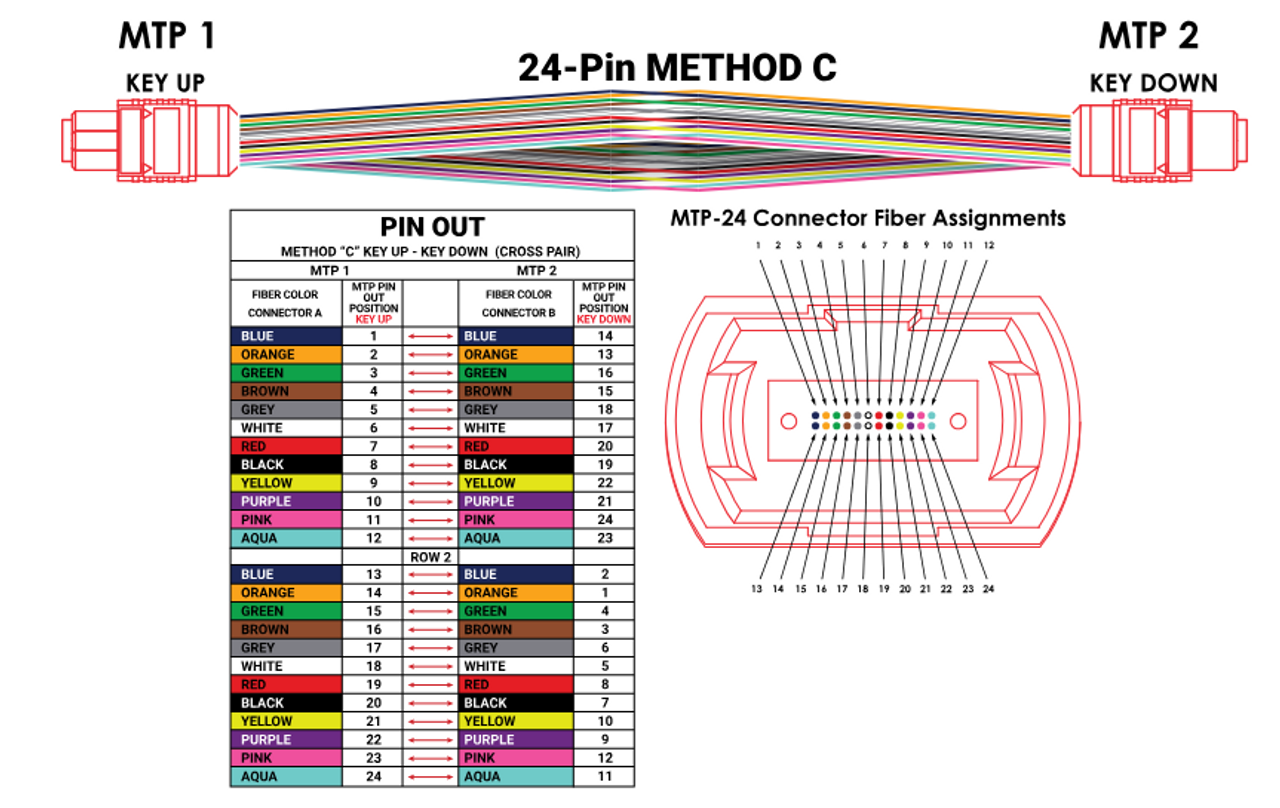

Type C - Flipped: Pair-Flipped polarity is the most commonly used polarity type for this cable, and typically used in cassette-to-cassette applications. Pin 1 on one end goes to Pin 2 on the opposite end, and 2 to 1, 3 to 4, 4 to 3, and so on. This is the default polarity option, but you can select your desired polarity from our drop-down menu above.
Connector Side A |
MTP/UPC Elite Low Loss 24 Fiber | Connector Side B |
MTP/UPC Elite Low Loss 24 Fiber |
Ferrule Type Side A |
Ferrule Type Side B |
||
Insertion Loss Maximum Side A |
≤0.35dB | Insertion Loss Maximum Side B |
≤0.35dB |
Insertion Loss Typical |
0.10dB | Insertion Loss Typical |
0.10dB |
Return Loss | ≥20dB | Return Loss | ≥20dB |
=============== |
==================== | ================== |
================== |
Cable Type |
OM5 50/125μm | Wavelength | 850/1300nm |
Fiber Count | 24 | Fiber Grade | Corning ClearCurve Glass |
Polarity | Rollover (Type B) | Cable Outer Diameter | 3.0mm |
Cable Jacket | OFNP Plenum | Sub Unit Outer Diameter | N/A |
Bend Radius, No Load |
10x cable overall diameter | Bend Radius, Load |
15x cable overall diameter |
=============== |
==================== | ================== |
================== |
40 GbE Distance Max. | 100 GbE Distance Max. | 40G-SWDM4 | 100G-SWDM4 |
150 Meter | 150 Meter | 500 Meter | 150 Meter |
Operating Temperature | 0° to 70°C (32° to 158°F) | Storage Temperature | -40° to 70°C (-40° to 158°F) |
