B-Series Breakout – Field Broadcast Cables

Installation zone RECOMMENDATION

• Deployable cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required for temporary broadcast networks

CABLE CHARACTERISTICS: B-SERIES BREAKOUT RISER CABLES (WITH 2.5MM SUBCABLES)

Applications

• Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are necessary
• Easiest cable to install where direct termination of connectors to sub-units and direct run to panels and equipment is desired

Features

• Extremely strong, lightweight, rugged, survivable tight-buffered cables designed for broadcast field use and commercial applications
• Polyurethane jacketed for abrasion, cut, and chemical resistance
• Core-locked^® jacket for improved mechanical performance
• Breakout cable design with individual color-coded subcables protecting each optical fiber
• Crush resistant and resilient, with two separate layers or aramid strength members in the subcables for individual single-fiber connector and termination pin, and overall for termination to multiway connector backshells or other housings
• Helically stranded cable core for flexibility, survival in difficult pulls, and excellent mechanical protection for the optical fibers
• Cables have been tested and are in use in field broadcast data communications applications worldwide
• Can be used outdoors for temporary deployment directly on the ground, in all terrains,including severe environments
• Suitable for industrial, mining, and petrochemical environments; chemical resistant
• Round cable design for easy installation and survivability
• Often used with multiway military tactical connectors for maximum connector retention (400lbs.)
• Ideally suited for use with MIL-C-38999 style military connectors; subcables terminate to individual pins, and overall aramid strength member terminates to backshell
• 2.0mm subcables standard
• Tactical Polyurethane (C) outer jacket material is standard. Flame-Retardant Tactical (V) and Low-Smoke Zero-Halogen (G) outer jacket materials are available

OCC also offers:

• Broadcast cables pre-spooled on deployable reels for a ready-to-use product
• Broadcast cables can be pre-terminated with single fiber or ruggedized multi-channel connectors upon request

Mechanical and Environmental Performance

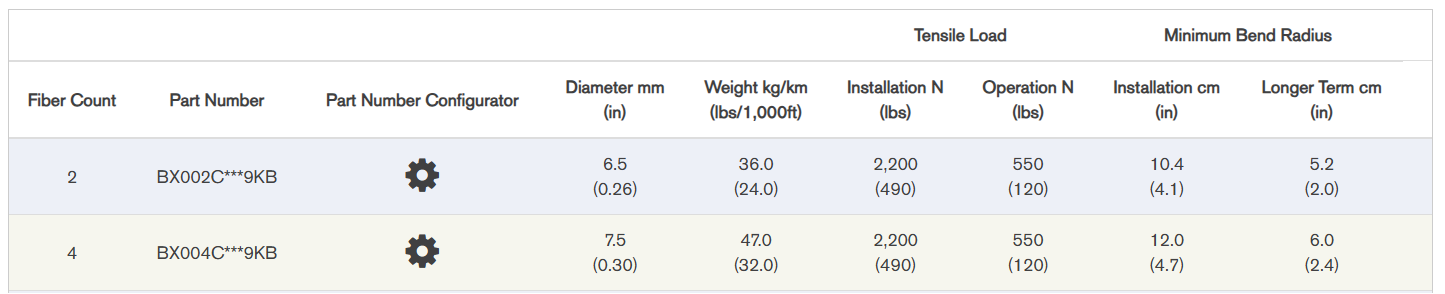

Specifications

C Jacket

Note: Optical Cable Corporation reserves the right to change this specification without prior notification.

Reference Previous Part Number:BX04-080D-SLX/900-OFNR

Note: This item may require 24 hours for cut and prep before shipping.
