OCC, DX, Distribution Series, 2-Strand, 900um Tight Buffered, Indoor/Outdoor,OFNR Rated, OM3, 50/125, Multimode, Black Jacket (Priced Per Foot)

Sale
click to zoom in

OCC, DX, Distribution Series, 2-Strand, 900um Tight Buffered, Indoor/Outdoor,OFNR Rated, OM3, 50/125, Multimode, Black Jacket (Priced Per Foot)

Item#:
DX002DALT9KR
$0.38
$0.33
Weight:
0.03 LBS
Minimum Purchase:
1000 units
Customer Service

Need Help?

Speak to one of our experts.

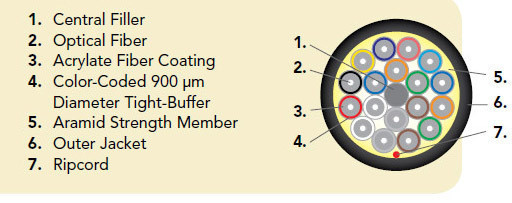

OCC, DX cable, black jacket, layer image, Cables Plus USA

OCC, DX, Distribution Series, 2-Strand, 900um Tight Buffered, Indoor/Outdoor,OFNR Rated, OM3, 50/125, Multimode, Black Jacket (Priced Per Foot)

$0.38
$0.33

OCC, DX, Distribution Series, 2-Strand, 900um Tight Buffered, Indoor/Outdoor,OFNR Rated, OM3, 50/125, Multimode, Black Jacket

Reference Previous Part Number: DX02-045D-ALS/900-OFNR

Note: This item may require 24 hours for cut and prep before shipping.

DX-Series Distribution – Riser Rated Cables

Installation zone RECOMMENDATION

  • Indoor/Outdoor tight-buffered design allows cables to be installed in intra-building backbone and inter-building campus locations without costly transitions between cable types
  • Ideal configuration for a single termination point requiring multiple fibers
  • 900μm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices, because connectors terminate directly to the fiber
  • No need to splice outdoor cable to indoor cable at building entrance
  • High crush resistance may eliminate the need for innerduct

Applications

  • Indoor/Outdoor tight-bound tight-buffered design allows cables to be installed in intra-building backbone and inter-building campus locations without costly transitions between cable types
  • Ideal configuration for a single termination point requiring multiple fibers

COST SAVINGS

  • 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
  • No need to splice outdoor cable to indoor cable at building entrance
  • High crush resistance may eliminate the need for innerduct

Features

  • High performance components and construction
  • Cable materials are indoor/outdoor - UL-listed OFNR and UV, water and fungus resistant
  • UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building riser shafts or from floor to floor
  • Wide operating temperature range of -40°C to +85°C
  • Helically stranded core for greater flexibility and mechanical protection of the optical fibers
  • High strength-to-weight ratio
  • 2-144 fiber configuration is smaller and lighter than comparable sub-grouped cables made by others: ideal for installation in areas with limited space or tight bends
  • Can be armored for additional protection in direct burial and aerial installations
  • Interlocking armor can be applied to cables as an alternative to conduit installation

Characteristics

Characteristic Riser
Operating Temp -40°C to +85°C
Storage Temp -55°C to +85°C
Install Temp -10°C to +60°C
Flame Retardancy UL listed type OFNR (UL 1666) for all fiber counts *FT4 (CSA C22.2 No. 232) for 2-24 fiber counts only
Crush Resist 1800 N/cm
Impact Resist 1500 impacts
Flex Resist 2000 cycles
Jacket Type D

Standards

Optical Cable Corporation's Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • UL 1651
  • UL 1666
  • GR-409-CORE
  • ICEA-S-104-696
  • ICEA-S-83-596
  • TIA-568
  • TIA-598
  • UL-listed type OFNR in accordance with NEC sections 770-179 (B) and 770-154 (B) for use in vertical runs in building riser shafts or from floor to floor. Meets or exceeds requirements for intra-building fiber optic cables as outlined in GR-409-CORE.

Specifications

Riser

  Tensile Load Minimum Bend Radius
Fiber Count Part Number Diameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2 DX002DALT9KR 4.8
(0.19)
22.0
(14.0)
660
(150)
180
(40)
7.3
(2.9)
4.8
(1.9)

4 DX004D***9*R 5.1
(0.20)
24.0
(16.0)
1,400
(310)
450
(100)
7.7
(3.0)
5.1
(2.0)

6 DX006D***9*R 5.7
(0.22)
31.0
(21.0)
1,400
(310)
450
(100)
8.6
(3.4)
5.7
(2.2)

8 DX008D***9*R 6.0
(0.24)
33.0
(22.0)
1,600
(360)
525
(120)
9.0
(3.5)
6.0
(2.4)

10 DX010D***9*R 6.5
(0.26)
42.0
(28.0)
1,800
(400)
600
(135)
9.8
(3.9)
6.5
(2.6)

12 DX012D***9*R 6.5
(0.26)
38.0
(25.0)
2,700
(600)
600
(135)
9.8
(3.9)
6.5
(2.6)

18 DX018D***9*R 7.3
(0.29)
47.0
(31.0)
2,700
(600)
700
(160)
11.0
(4.3)
7.2
(2.8)

24 DX024D***9*R 8.9
(0.35)
66.0
(44.0)
3,000
(670)
1,000
(220)
13.4
(5.3)
8.9
(3.5)

30 DX030D***9*R 9.1
(0.36)
75.0
(50.0)
3,000
(670)
1,000
(220)
13.7
(5.4)
9.1
(3.6)

36 DX036D***9*R 9.1
(0.36)
73.0
(49.0)
3,000
(670)
1,000
(220)
13.7
(5.4)
9.1
(3.6)

48 DX048D***9*R 10.5
(0.41)
93.0
(63.0)
4,200
(940)
1,400
(310)
17.4
(6.9)
11.6
(4.6)

60 DX060D***9*R 12.3
(0.48)
135.0
(91.0)
4,800
(1,080)
1,600
(360)
18.5
(7.3)
12.3
(4.8)

72 DX072D***9*R 14.0
(0.55)
177.0
(119.0)
5,400
(1,210)
1,800
(400)
21.0
(8.3)
14.0
(5.5)

84 DX084D***9*R 14.4
(0.57)
190.0
(128.0)
6,000
(1,350)
2,000
(450)
21.6
(8.5)
14.4
(5.7)

96 DX096D***9*R 16.0
(0.63)
225.0
(151.0)
6,000
(1,350)
2,000
(450)
24.1
(9.5)
16.0
(6.3)

108 DX108D***9*R 16.8
(0.66)
246.0
(165.0)
6,000
(1,350)
2,000
(450)
25.3
(10.0)
16.8
(6.6)

120 DX120D***9*R 17.9
(0.70)
271.0
(182.0)
6,000
(1,350)
2,000
(450)
26.8
(10.6)
17.9
(7.0)

132 DX132D***9*R 17.8
(0.70)
291.0
(195.0)
6,000
(1,350)
2,000
(450)
26.8
(10.6)
17.8
(7.0)

144 DX144D***9*R 20.3
(0.80)
339.0
(228.0)
6,000
(1,350)
2,000
(450)
30.5
(12.0)
20.3
(8.0)


Fiber Performance chart
