OCC, DX, Distribution Series, 4-Strand, 900um Tight Buffered, Indoor/Outdoor, Chemical Resistant OFNP Plenum Rated, 9/125, Singlemode Bend Tolerant Ultra-Fox™ (Priced Per Foot)

click to zoom in

OCC, DX, Distribution Series, 4-Strand, 900um Tight Buffered, Indoor/Outdoor, Chemical Resistant OFNP Plenum Rated, 9/125, Singlemode Bend Tolerant Ultra-Fox™ (Priced Per Foot)

Item#:
DX004KSLA9YP
List Price: $1.39
$1.26
(You save $0.13 )
Condition:
New
Weight:
0.02 LBS
Minimum Purchase:
1000 units
Customer Service

Need Help?

Speak to one of our experts.

OCC, DX, Distribution Series, 4-Strand, 900um Tight Buffered, Indoor/Outdoor, Chemical Resistant OFNP Plenum Rated, OS2, 9/125

OCC, DX, Distribution Series, 4-Strand, 900um Tight Buffered, Indoor/Outdoor, Chemical Resistant OFNP Plenum Rated, 9/125, Singlemode Bend Tolerant Ultra-Fox™ (Priced Per Foot)

List Price: $1.39
$1.26
(You save $0.13 )

Bulk Fiber, 4 Strand, Singlemode, 9/125, OS2, OFNP Plenum Rated, Indoor/Outdoor, Yellow Outer Jacket

This plenum distribution fiber cable is used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces. It's ideal for configurations requiring a single termination point with multiple fibers. The plenum distribution fiber optic cable uses high performance components and construction and is UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces.

Multimode Fiber Information

Multi-Mode cable commonly has a diameter in the 50-to-100 micron range (typical multimode fiber core diameters are 50 or 62.5 micrometers). Multimode fiber gives you high bandwidth at high speeds (10 to 100MBS - Gigabit to 275m to 2km) over medium distances. Light waves are dispersed into numerous paths, or modes, as they travel through the cable's core typically 850 or 1300nm. However, in long cable runs (greater than 3000 feet [914.4 meters), multiple paths of light can cause signal distortion at the receiving end, resulting in an unclear and incomplete data transmission so designers now call for single mode fiber in new applications using Gigabit and beyond.

APPLICATIONS

    • Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling space
    • Ideal configuration for a single termination point requiring multiple fibers
    • Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments

FEATURES

    • UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling space
    • Fluorpolymer jacket
    • 2 to 72 fibers
    • Cable materials are Indoor/Outdoor UL-Listed OFNP and also UV, chemical, water and fungus resistant
    • Jacket is highly chemical resistant for installation in harsh industrial environments

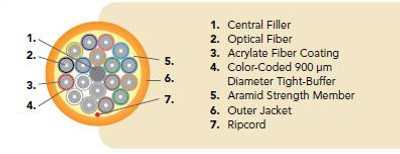

    • High performance tight-buffered coating on each fiber for environmental and mechanical protection
    • 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber.
    • Helically stranded core for flexibility, survival in difficult installations, and mechanical protection for the fibers
    • High specific strength-to-weight ratio and compact cable design for limited conduit space and tight bends in long cable pulls
    • High crush resistance may eliminate the need for innerduct
    • Can be installed outside and in plenum or riser pathways inside, eliminating the need to transition cable types between environments
    • Interlocking armor can be applied to cables as an alternative to conduit installation

Characteristics

Characteristic Plenum Indoor/Outdoor (K)
Operating Temp -40°C to +85°C
Storage Temp -40°C to +85°C
Install Temp 0°C to +60°C
Flame Retardancy UL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)
Crush Resist 1500 N/cm (TIA/EIA-455-41A)
Impact Resist 1000 impacts (EIA/TIA-455-25A)
Flex Resist 1000 cycles (TIA/EIA-455-104A)
Jacket Type K

STANDARDS

Optical Cable Corporation Indoor/Outdoor tight buffered fiber optic cables meet the functional requirements of the following standards:

    • UL 1651
    • ANSI/NFPA 262
    • GR-409-CORE
    • ICEA-S-104-696
    • ICEA-S-83-596
    • TIA-568
    • TIA-598
    • UL-listed type OFNP in accordance with NEC sections 770-179 (A) and 770-154 (A) for use in ducts, plenums, and air-handling spaces. Meets or exceeds requirements for intra-building fiber optic cables as outlined in GR-409-CORE.

Specifications

Plenum Indoor/Outdoor (K)

  Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

4 DX004KSLA9YP   4.8
(0.19)
24.0
(16.0)
1,400
(310)
450
(100)
7.2
(2.8)
7.2
(2.8)
