OCC, DX, Distribution Series, 6-Strand, 900um Tight Buffered, Indoor/Outdoor, OFNP Rated, OS2, 9/125, Singlemode, Yellow Jacket (Priced Per Foot)

click to zoom in

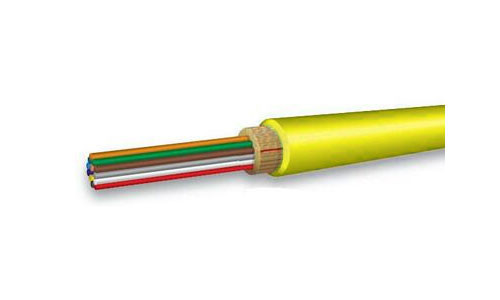

6-Strand OCC DX Series 900µm Tight Buffered, Indoor Dist., OFNP Plenum, Singlemode 9/125 OS2
OCC, DX, Distribution Series, 6-Strand, 900um Tight Buffered, Indoor/Outdoor, OFNP Rated, OS2, 9/125, Singlemode, Yellow Jacket (Priced Per Foot)

OCC, DX, Distribution Series, 6-Strand, 900um Tight Buffered, Indoor/Outdoor, OFNP Rated, OS2, 9/125, Singlemode, Yellow Jacket (Priced Per Foot)

Item#:
DX006TSLA9YP
List Price: $0.72
$0.48
(You save $0.24 )
Condition:
New
Weight:
0.02 LBS
Minimum Purchase:
1000 units
Customer Service

Need Help?

Speak to one of our experts.

Phone Icon

804-716-9007

6-Strand OCC DX Series 900µm Tight Buffered, Indoor Dist., OFNP Plenum, Singlemode 9/125 OS2

OCC, DX, Distribution Series, 6-Strand, 900um Tight Buffered, Indoor/Outdoor, OFNP Rated, OS2, 9/125, Singlemode, Yellow Jacket (Priced Per Foot)

List Price: $0.72
$0.48
(You save $0.24 )
Description

6 Strand OCC DX Series 900µm Tight Buffered, Indoor/Outdoor Distribution, OFNP Plenum, Singlemode 9/125

Reference Previous Part Number: DX06-050S-SLX/900-OFNP

Offering the durability you expect from OCC, these distribution cables provide all of the indispensable elements needed for Indoor and Indoor/Outdoor commercial applications, while providing great value. Manufactured with
Indoor/Outdoor grade low smoke PVC for plenum applications.

  • Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces
  • Ideal configuration for a single termination point requiring multiple fibers
  • Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments

CABLE CHARACTERISTICS

JACKET COLOR: Yellow
JACKET MATERIAL:  Indoor / Outdoor Low Smoke PVC
BUFFER MATERIAL:  Low Smoke PVC

MECHANICAL AND ENVIRONMENTAL CHARACTERISTICS

FLEX RESISTANCE (TIA-455-104) 1,000 Cycles
CRUSH RESISTANCE (TIA-455-41) 1,500 N/cm
OPERATING TEMPERATURE -40OC to +70OC
STORAGE TEMPERATURE -40OC to +70OC
INSTALLATION TEMPERATURE (ACTUAL
TEMPERATURE OF CABLE)		 0OC to +60OC
FLAME RETARDANCY UL Listed Type OFNP NFPA262
FT6 (CSA C22.2 No. 232)



Cable Charecteristics: D-Series Distribution Plenum Cables ("S" Jacket) Tensile Load Menimum Bend Radius
  Diameter Weight Installation Operational Installation Long Term
Fibers Part Number mm/(in) kg/km (lbs/1,000) N (lbs) N (lbs) cm (in) cm (in)
6 DX006TSLA9YP 4.7
(0.19)		 18.0
(12.0)		 1,400
(310)		 450
(100)		 7.1
(2.8)		 4.7
(1.9)

DISTRIBUTION SERIES FIBER OPTIC CABLE TYPE OFNP PLENUM PRODUCT SPECIFICATIONS

APPLICATIONS

  • Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces
  • Ideal configuration for a single termination point requiring multiple fibers
  • Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments

FEATURES

  • UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces
  • Low-smoke PVC jacket
  • 2 to 24 fibers
  • Cable materials are Indoor/Outdoor UL-Listed OFNP and also UV, water and fungus resistant
  • High performance tight-buffered coating on each fiber for environmental and mechanical protection
  • 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber.
  • Helically stranded core for flexibility, survival in difficult installations, and mechanical protection for the fibers
  • High specific strength-to-weight ratio and compact cable design for limited conduit space and tight bends in long cable pulls
  • High crush resistance may eliminate the need for innerduct
  • Can be installed outside and in plenum or riser pathways inside, eliminating the need to transition cable types between environments
  • Interlocking armor can be applied to cables as an alternative to conduit installation

STANDARDS

Optical Cable Corporation Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • UL 1651
  • ANSI/NFPA 262
  • GR-409-CORE
  • ICEA-S-104-696
  • ICEA-S-83-596
  • TIA-568
  • TIA-598
  • UL-listed type OFNP in accordance with NEC sections 770-179 (A) and 770-154 (A) for use in ducts, plenums, and air-handling spaces. Meets or exceeds requirements for intra-building fiber optic cables as outlined in GR-409-CORE.
