P-Lock Locking Data Center Power Cables
Item Number: 14K15-H-xxx-RED
Description: P-Lock Secure Locking Power Cord, C14 (P-Lock) to C15, 14 AWG, 15 Amp, 250V, SJT Jacket, Red
IEC 60320 C14 C15 P-LOCK BLACK Power Cords feature a locking plug (male) that securely locks into place when used with a matching inlet. P-LOCK Power Cords are used with Server Technology PDUs (Power Distribution Unit) to supply power from the PDU to a server, router, switch, or other device. The C15 Connector is HIGH-TEMPERATURE connector which mates with either a C-16 or C-14 Inlet. The Locking C15 Plug helps ensure a secure connection between the cable and the PDU, reducing accidental power loss to equipment due to lose connections. We stock a wide array of lengths and colors to meet your specific need. Standard jacket color is BLACK, however, RED and BLUE power cables are used to help identify primary and secondary power sources. Standard jacket is SJT, standard gauge is 14awg. Standard amperage is 15 AMP
Locking Data Center Power Cables are used in data centers to prevent against accidental disconnects. There are many types of locking plugs and connectors, all of which serve a specific purpose. P-Lock power plugs are a special type of locking mechanism that mate with P-Lock outlets/receptacles on PDUs. The P-Lock will only lock using these special receptacles, which are found on ServerTech, Raritan, and GELU power distribution units. The P-Lock is a very good locking mechanism because it locks on both sides of the plug body, providing a very secure lock.

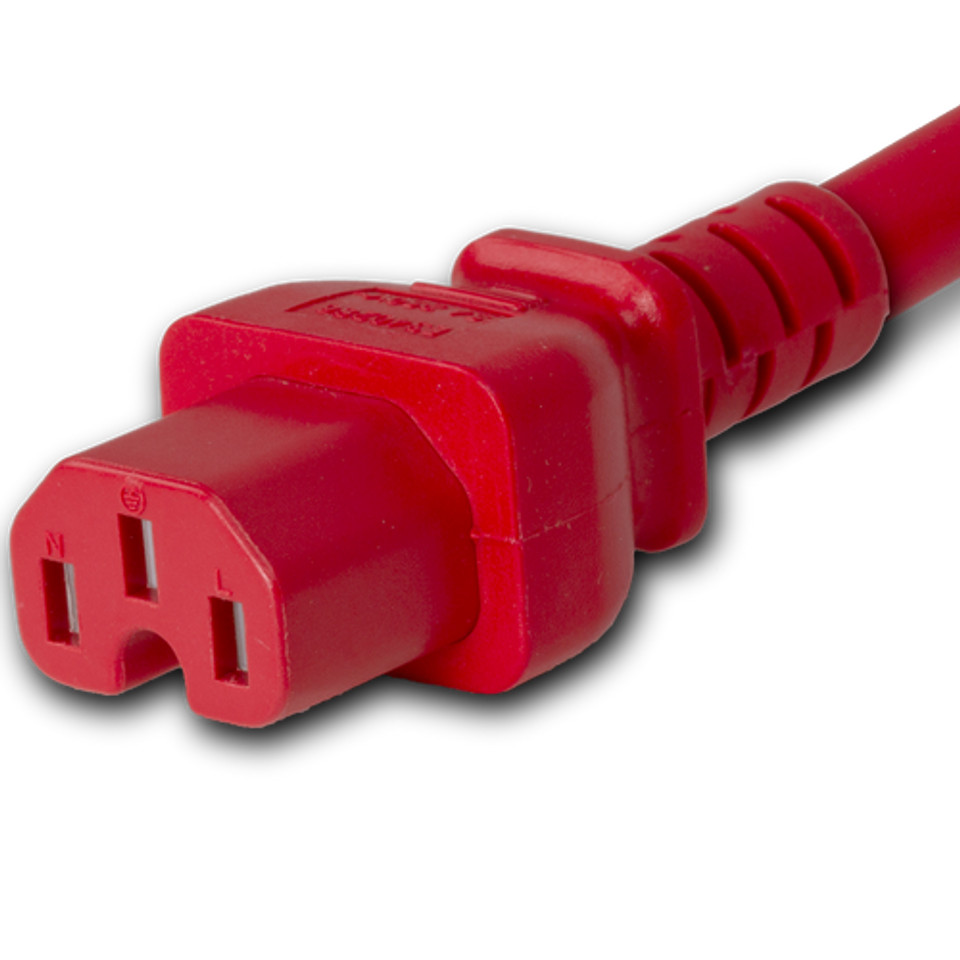

The IEC 60320 C15 is a grounded 3 Wire connector rated up to 250V & 10 Amps Internationally and 125V/250V & 15 Amps in North America. The C15 mates with a C16 inlet and can also be down graded to a C14 Inlet. C14 Inlet and is commonly used in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C15 is a HIGH TEMPERATURE connector rated up to 120°C, unlike the 70°C rating of the C13. The C15 is commonly used in in electric kettles and other household appliances that involve higher temperatures than a normal C13 is made to withstand. There is a dimple located below the ground pin to ensure that the standard C13 connector cannot be plugged into the C16 Inlet which is used on high temperature applications. This design is utilized to allow this C15 connector to be used on both high temperature applications and standard applications, as to not limit the user. The C15 connector is commonly used with 18awg SJT(OW), 16awg SJT(OW), and 14awg SJT(OW).
What does the IEC 60320 C15 Connect to?
|The IEC 60320 type C15 connector is designed to plug into the high temperature rated IEC 320 C16 Inlet. This inlet is commonly found on high performance IT Equipment that reaches heats that exceed the rating of the standard IEC C13 connector. This inlet is designed to reach temperatures up to 120*C. The C15 can also be plugged into a standard non-high temp application C14 Inlet, which is located on a wide variety of IT Equipment like computer monitors and switches.
14awg-3c conductors are UL rated to carry 15A @ 250V. North American Color Coding for 3 wire cable designates (1) Black Conductor (1) Green Conductor (1) Neutral Conductor.
Conductor Designations in 250V Circuits
