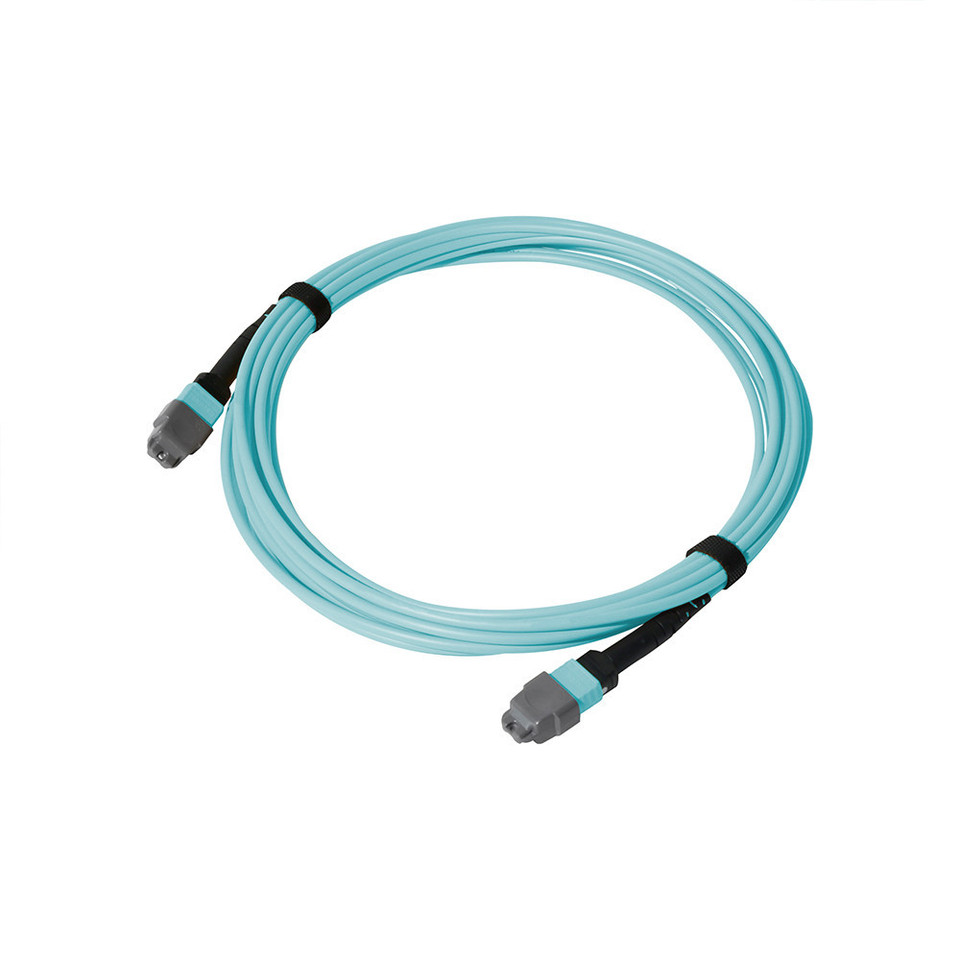

Patch Cable, MTP®/APC, OM3 Multimode 50/125 Micron, 16 Fiber

Patch Cable, MTP®/APC, OM3 Multimode 50/125 Micron, 16 Fiber

Item#:
MTF-MTF-16-OM3-001MB
List Price: $118.94
$79.29
(You save $39.65 )
Availability:
Made To Order, Normal lead-time 15 - 21 Days ARO
Weight:
0.25 LBS
Bulk Pricing:
Buy in bulk and save
Customer Service

Need Help?

Speak to one of our experts.

Patch Cable, MTP®/APC, OM3 Multimode 50/125 Micron, 16 Fiber

Patch Cable, MTP®/APC, OM3 Multimode 50/125 Micron, 16 Fiber

List Price: $118.94
$79.29
(You save $39.65 )

Patch Cable, MTP®/APC, OM3 Multimode 50/125 Micron, 16 Fiber

List Price: $118.94
$79.29
(You save $39.65 )

MTP®/MPO Trunk Cable Assemblies

MTP® Female to MTP® Female, 16 Strand, Corning Multimode OM3 50/125 Micron, OFNP Aqua Jacket

MTP-16TM Multi-fiber Optical Connector Supports Next Generation 400G Applications

The MTP® 16 Fiber connector is one of the newest addition to the US Conec MTP® brand MPO product family. This state-of-the-art connector brings simplified use to the MPO format by offering optimal field flexibility and enhanced performance, all while leveraging the proven features and technology of US Conec’s MTP® connectors.

Comprised of the proven US Conec MT Elite® ferrule technology, the MTP-16™ connector hardware is ideal for structured cabling applications supporting parallel or duplex links that require low insertion loss, using the MTP-16™ connectors for high density trunk cables efficiently aggregate 8 lane QSFP+/QSFP28 links while directly coupling into emerging 16x25G active devices.

The MTP-16™ connector family encompasses the 16 fiber MT ferrule, connector hardware, and bulkhead adapters. Utilizing the same external footprint as the existing traditional 12 fiber MT ferrule, the 16 fiber MT Elite® is available in one or two rows of 16 fibers and leverages all the proven features and technology of US Conec’s traditional PPS MT ferrules. The connector hardware offers a unique keying feature as opposed to the centered keying feature on the traditional MPO hardware. This new keying design, currently being standardized by TIA 604-18 (FOCIS 18) and IEC (61754-7-3), ensures proper mating of the MTP-16™ connector without inadvertently mating the 16 fiber connector hardware with standard MPO compliant hardware.The MTP-16™ adapters are available in full or reduced flange mounting and opposed or aligned key orientation.

In today’s High Density Data Center environments managers are taking advantage of the most innovative fiber optic technology to date.

The MTP brand connector is an improved version of the MPO style connector, offering features that benefit the user to get the best possible connection, including a removable housing for reworking the ferrule or changing the connector gender post-assembly.

Other features such as the patented ferrule float and stainless steel guide pin tips (available on male versions) help offer greater durability and accuracy. With this 16-strand fiber optic cable, you can perform an array of functions at a fraction of the space used by standard connector cables.

Specifications

  • Simplex 3.0mm cable
  • 50/125um OM3 Corning Glass
  • Plenum-Rated OFNP Aqua Jacket
  • 16-Fiber count
  • Nominal Diameter: 3.0mm
  • Bend Radius: 1.8in (Installation), 1.2in (Long-term)

Features

  • 0.55mm guide pins; 5.3mm guide pin pitch
  • 16 Fibers per row
  • High Density; fiber pitch: 0.25mm
  • Highly glass filled for dimensional stability and stable environmental performance
  • Low hygroscopic PPS material for stable environmental performance
  • Low insertion loss optimized for 800G link applications
  • Mold marks to indicate fiber type, fiber count and performance
  • Pre-angled ferrule for minimized polishing time

Applications

  • FTTx hardened connector cabling infrastructure
  • MTP 16™ brand MPO-16 cable assemblies
  • Standards Compliance IEC 61754-7-3; 61754-7-4
  • Standards Compliance TIA 604-18
  • 400G SR8 (8X50G) 16 Fiber
  • 800G SR8 (8X100G) 16 Fiber

Connector Side A
MTP/APC 16 Fiber Connector Side B
MTP/APC 16 Fiber
Ferrule Type Side A

Ferrule Type Side A


Insertion Loss Maximum Side A
≤0.50dB Insertion Loss Maximum Side B
≤0.50dB
Insertion Loss Typical
0.25dB Insertion Loss Typical
0.25dB
Return Loss ≥60dB Return Loss ≥60dB
===============
==================== ==================
==================
Cable Type
OM3 50/125μm Wavelength 850/1300nm
Fiber Count 16 Fiber Grade Corning Clear Curve
Polarity Type A, B or C Cable Outer Diameter 3.0mm
Cable Jacket OFNP Plenum Sub Unit Outer Diameter N/A
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
1 Gb Distance Max. 10 Gb Distance Max. 40 Gb Distance Max. 100 Gb Distance Max.
1,100 Meters 300 Meter 100 Meter 100 Meter
================ ==================== =================== ==================
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)
