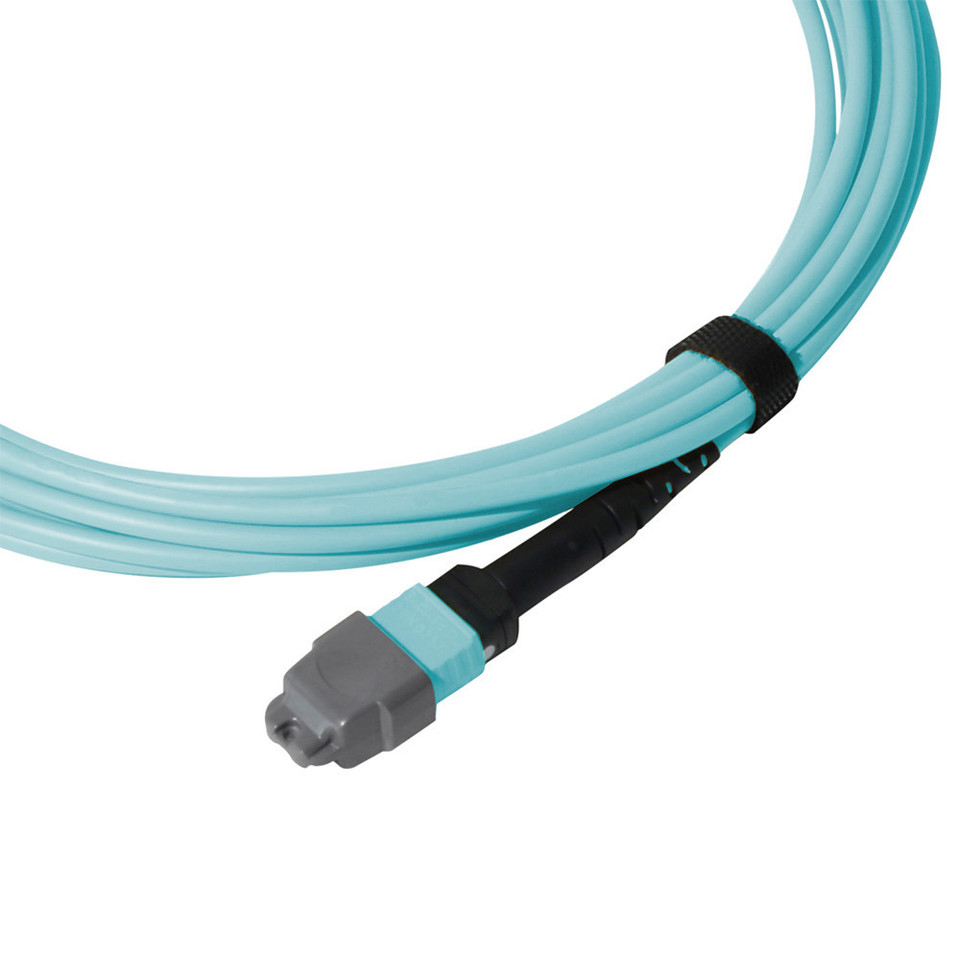

Patch Cable, MTP® Elite/UPC, OM3 Multimode 50/125 Micron, 8 Fiber

List Price: $60.72

$40.48

(You save $20.24 )

Description
Downloads

Description

MTP®/MPO Trunk Cable Assemblies

MTP® Elite Female to MTP® Elite Female, 8 Strand, Corning Multimode 50/125 Micron, OFNP Aqua Jacket

MTP^® Connectors

US Conec offers a full suite of MTP^® brand MPO connectors and solutions for a variety of applications and operating environments. The MTP^® connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.

Precision Optical Components

At the heart of every fiber to fiber and fiber to device interconnect is a precision optical interconnect component. US Conec is dedicated to driving the next generation of optical links from source to detector by utilizing state of the art precision component design, metrology and manufacturing to produce low loss, cost effective ferrules and optical components optimized with the entire link in mind. Sub-micron component modeling, design, production, measurement and testing are at the heart of US Conec’s engineering focused approach to solving real world communication problems every day.

FTTx hardened connector cabling infrastructure
MTP® brand MPO cable assemblies
Optical backplane connectivity for OBO architectures
Standards Compliance IEC 61754-5
Standards Compliance IEC 61754-7-1; 61754-7-2
Standards Compliance TIA 604-5

8 Fibers per row
0.7mm guide pins; 4.6mm guide pin pitch
High Density; fiber pitch: 0.25mm
Highly glass filled for dimensional stability and stable environmental performance
Low hygroscopic PPS material for stable environmental performance
Low insertion loss optimized for 40G, 100G and 400G link applications
Mold marks to indicate fiber type, fiber count and performance

Specifications

50/125um OM3 Corning Glass
Plenum-Rated OFNP Aqua Jacket
8-Fiber count
Nominal Diameter: 3.0mm
40G SR4 (4X10G) 8 Fiber
100G SR4 (4X25G) 8 Fiber
200G SR4 (4X50G) 8 Fiber
400G SR4 (4X100G) 8 Fiber
Bend Radius: 1.8in (Installation), 1.2in (Long-term)

onnector Side A	MTP/UPC Elite Low Loss 8Fiber	Connector Side B	MTP/UPC Elite Low Loss Fiber
Ferrule Type Side A		Ferrule Type Side B
Insertion Loss Maximum Side A	≤0.35dB	Insertion Loss Maximum Side B	≤0.35dB
Insertion Loss Typical	0.10dB	Insertion Loss Typical	0.10dB
Return Loss	≥20dB	Return Loss	≥20dB
===============	====================	==================	==================
Cable Type	OM3 50/125μm	Wavelength	850/1300nm
Fiber Count	8	Fiber Grade	Corning ClearCurve Glass
Polarity	Type A, B & C available	Cable Outer Diameter	3.0mm
Cable Jacket	OFNP Plenum	Sub Unit Outer Diameter	N/A
Bend Radius, No Load	10x cable overall diameter	Bend Radius, Load	15x cable overall diameter
===============	====================	==================	==================
1 GbE Distance Max.	10 GbE Distance Max.	40 GbE Distance Max.	100 GbE Distance Max.
1,100 Meters	300 Meter	100 Meter	100 Meter
Operating Temperature	0° to 70°C (32° to 158°F)	Storage Temperature	-40° to 70°C (-40° to 158°F)
