RapidNet ULTRA Cassette Housing

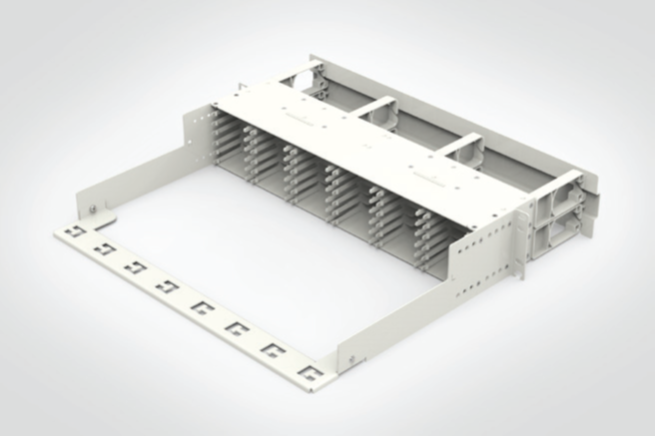

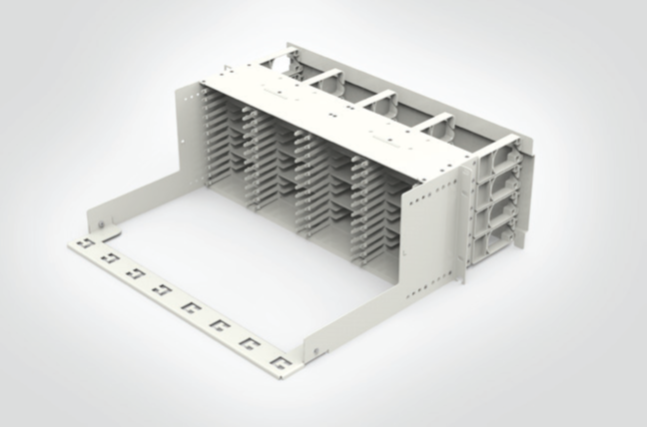

RapidNet ULTRA Series housings are industry standard 19” mountable hardware for housing both RapidNet ULTRA8 (Base-8) and ULTRA12 (Base-12) cassettes.
Available in 1U, 2U, 3U & 4U heights Housings come standard with integrated rear cable management support, adjustable side mounting brackets, integrated front patchcord management rings and removable swing down patching field cover. A port identification labelling matrix is pre-installed on the inside of the cover.
The housings come pre-assembled with mounting kit, ready to install straight into the rack. Painted with RAL 9003 Signal white to increase light reflectance which helps to improve in rack visibility alongside supporting reduced energy costs from lighting.

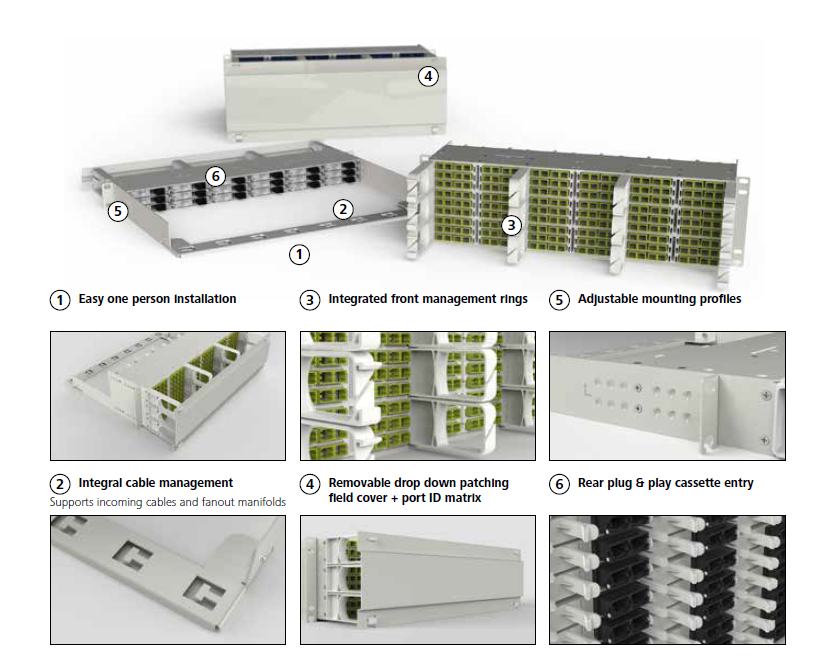

Features and Benefits:

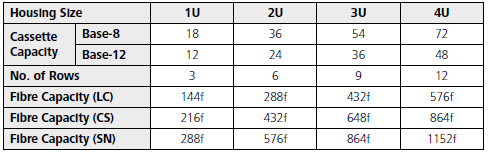

- High fibre density: LC 144f, CS 216f, SN 288f per U
- Rear loading cassettes
- Integrated rear cable management
- Integrated front patchcord management rings
- Adjustable mounting brackets
- Patching field swing down cover
- Identification label matrix
- 19” Mounting profile
- Signal White RAL 9003
- Fast, one person installation
