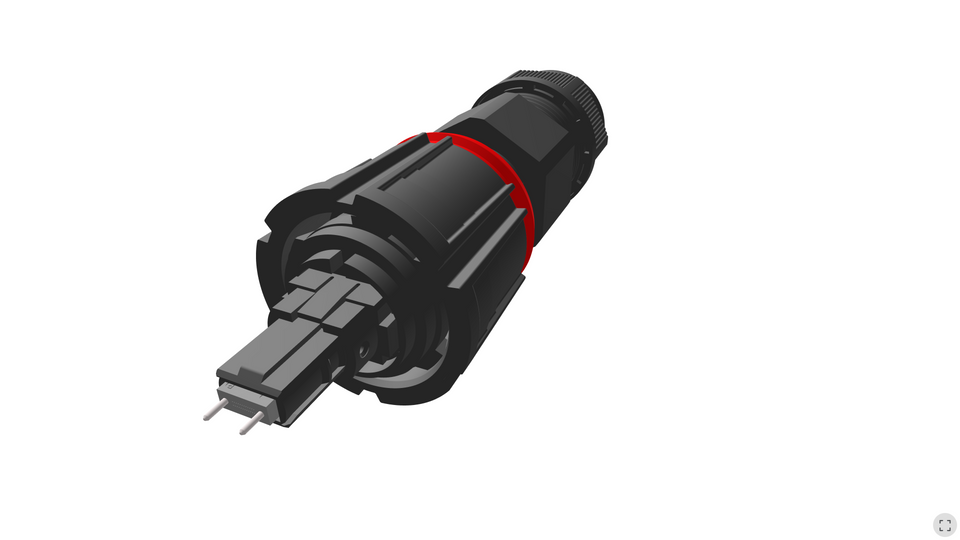

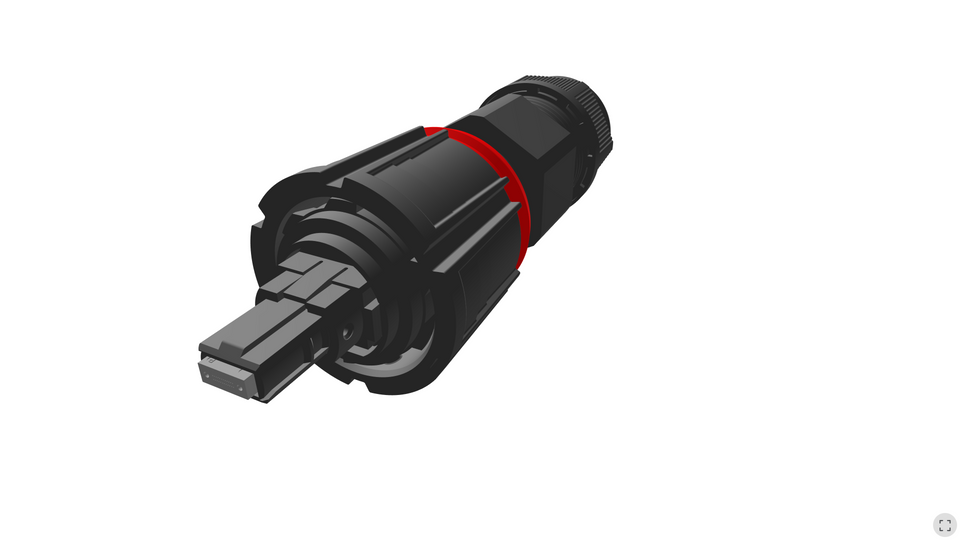

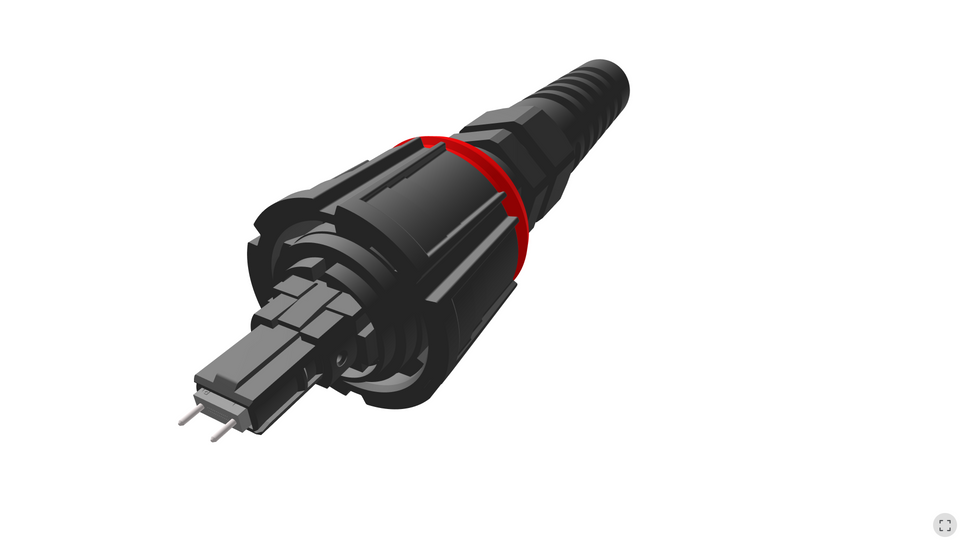

IP-16 MPO Connector
The IP-16 Series is SENKO’s flagship connectivity solution designed for outdoor applications and harsh environments. The high optical performance is paired with ergonomic mechanics for quick and easy installations. The IP-16 Series offers a IP68 rating protection with a simple bayonet mechanism, and the connector has Safe Lock Ring feature for a tamperproof protection.
- IP68 rated ruggedized connectors
- Up to 24-fiber with MT style
- High performance outdoor interconnect
- For multifiber assembly / enclosure
| Single-mode | Multimode | |||
| APC | APC | MM | MM | |
| Low Loss | Standard | Low Loss | Standard | |
| Typical Insertion Loss (dB) 12-fiber | 0.10 | 0.20 | 0.08 | 0.15 |
| Max Insertion Loss (dB) 12-fiber | 0.25 | 0.70 | 0.25 | 0.50 |
| Typical Insertion Loss (dB) 24-fiber | 0.15 | 0.25 | 0.15 | 0.20 |
| Max Insertion Loss (dB) 24-fiber | 0.35 | 1.00 | 0.35 | 0.50 |
| Typical Return Loss (dB) | ≥60 | ≥25 | ||
| Operating Temperature (°C) | – 40 to +75 | |||
| Durability | SM <0.3dB typical change, 50 matings | |||
| IP-Rating1 | IP68 | |||
| Pull Force | 100lbf or 450N | |||
1 The IP rating was validated using a SENKO sourced cable and procedure. It is recommended to retest IP rating for any other cable types.
