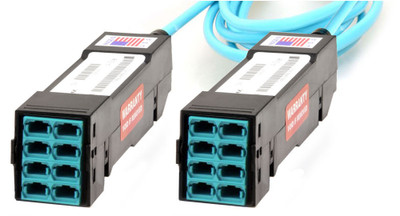

HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (8) Port MTP®/APC Elite 24F (Male) to (8) Port MTP®/APC Elite 24F (Male), 192 Strand, Rollover

click to zoom in

HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (8) Port MTP®/APC Elite 24F (Male) to (8) Port MTP®/APC Elite 24F (Male), 192 Strand, Rollover

Made To Order, Normal lead-time 7 - 10 days, after Drawing Approval


1.00 LBS

Minimum Qty:  10 ft
Total Footage: 10 ft
Additional Feet:
x 4.8 per/ft
Customer Service

Need Help?

Speak to one of our experts.

HD8² HDReadyLink®, Cassette to Cassette, 9/125 OS2, (8) Port MTP®/APC Elite 24F (Male) to (8) Port MTP®/APC Elite 24F (Male), 192 Strand, Rollover


Our HD8² High Density Fiber Optic Cable Patching system is specifically designed for ease of installation and economy of space. The smaller square cassette utilized in our design, versus the typical flat wide cassette, lends itself to a smaller profile. The cassettes come with a snap on pulling eye cap. The pulling eye cap snaps onto the front of the cassette and acts as both a pulling eye and a cover to protect the internal connectors. This design simplifies the installation process of pre-terminated trunked cassettes and as a result can reduce dB loss by reducing the number of termination points throughout the cabling design. Older style designs are cumbersome and either do not allow for pre-termination or, if they are pre-terminated cassettes, they are too large to pull through existing infrastructure.

Product Specification: HD8² HDReadyLink®, 192 Strand 9/125 OS2, Cassette to Cassette, 8-Port MTP®/APC Elite 24 Fiber Male to 8-Port MTP®/APC Elite 24 Fiber Male, Rollover, With integrated HDReadyPull® Pulling Eye
Connector Side A
MTP/APC Elite Low Loss 24 Fiber (Male) Connector Side B
MTP/APC Elite Low Loss 24 Fiber (Male)
Ferrule Type Side A

Ferrule Type Side B

Port Count Side A
8 Port Count Side B
Insertion Loss Maximum Side A
≤0.35dB Insertion Loss Maximum Side B
Insertion Loss Typical
0.10dB Insertion Loss Typical
Return Loss ≥60dB Return Loss ≥60dB
==================== ==================
Cable Type
OS2 9/125μm Wavelength 1310/1550nm
Fiber Count 192 Fiber Grade G.657.A1 (Compatible with G.652.D)
Polarity Rollover (Type B) Cable Outer Diameter 12.9mm
Cable Jacket OFNP Plenum Sub Unit Outer Diameter 2.0mm
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
==================== ==================
1 Gb Distance Max.
10 Gb Distance Max.
1310nm > 25,000 Meters 1310nm 10,000 - 25,000 Meters
1550nm > 40,000 Meters 1550nm 40,000 Meters
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)


  • Reduced installation time with integrated pulling eye - 75-85% time savings
  • Space savings of up to 100% per cassette over traditional MTP/MPO cassettes


  • Made in USA and TAA compliant
  • REACH & RoHS 2 compliant
  • MM OM1, OM2, OM3, OM4, OM5 & SM OS2
  • Bend-insensitive optical fibers
  • 250 micron loose tube design allows for higher fiber strand counts in a smaller overall diameter cable
  • Flexible and easy to handle Lightweight, flexible aramid yarns enhance strength
  • When necessary, colorcoded binders separate fiber strands into bundles of 12
  • 100% interferometry reports
  • 100% visual inspection reports
  • Total link test testing and labeling available at additional cost


  • Yellow: OS2
  • Orange: *OM1 & *OM2 (*MOQ and not available in BIF glass)
  • Aqua: OM3, OM4, OM5
  • Note: Erika Violet for OM4 and Lime Green OM5 is available MOQ and leadtime may apply


  • Applications include: 10G, 40G, 100G and 400G Ethernet, fiber channel, video, security and automation


  • TIA/EIA-568-C.3
  • ISO/IEC 11801, 2nd edition
  • Telcordia GR-409-CORE
  • OS2 glass is compliant to ITU-T G.657.A1
