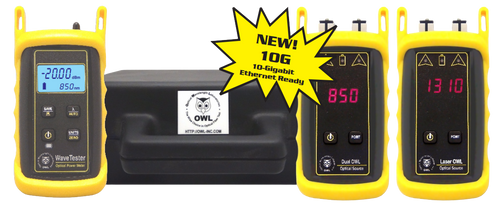

WaveTester / Dual OWL - 850nm Multimode Fiber Certification Test Kit

SKU: KIT-WT-D285xx

Models:

• KIT-WT-D285ST     ST Connector Version
• KIT-WT-D285SC     SC Connector Version

The WaveTester / Dual OWL 850 Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in multimode networks at 850nm. The WaveTester optical power meter is multimode and singlemode ready, and can store reference values for all wavelengths used for optical loss measurements. Up to 200 fiber runs may be stored, and serially downloaded to a PC for report generation using our OWL Reporter software.

The Dual OWL 850 is a multimode light source. Its output is temperature-stabilized for accurate measurements. Two connector options are available (ST and SC).

Kit Contents:

• Carrying case
• Protective rubber boots
• Accessories: OWL Reporter software
• Product manuals
• Light Source: Dual OWL 850
• USB download / charger cables
• Power Meter: WaveTester
• Re-chargeable Lithium Polymer batteries
• NIST certificate

Features:

• Certification of multimode fiber links at 850nm
• EIA/TIA 568 ISO/IEC 11801 10-Gigabit Ethernet
• Measurement modes include absolute (for optical power) or relative (for optical loss)
• OWL Reporter software for printing formatted fiber certification reports
• USB interface for continuous data logging, report printing, or data downloading
• Data storage for up to 200 data points
• ATM-155 ATM-622 Fibre Channel
• Selectively view, delete or resample data points

Supported Cabling Standards:

• EIA/TIA 568
• ISO/IEC 11801
• 10Base-FL
• 10Base-FB
• 10-Gigabit Ethernet
• 100Base-FX
• 1000Base-SX
• 1000Base-LX
• FDDI
• ATM-155
• ATM-622
• Fibre Channel
• Token Ring

Specifications

• WaveTester kits offer the fiber optic professional some of the best values in the industry
• Whether performing standards-compliant testing, or just simple optical loss test, there is a WaveTester kit configuration to meet nearly every need
• WaveTester kits include a WaveTester optical power meter, your choice of light source combinations
• A hard-shell carrying case, protective rubber boots, lanyard straps
