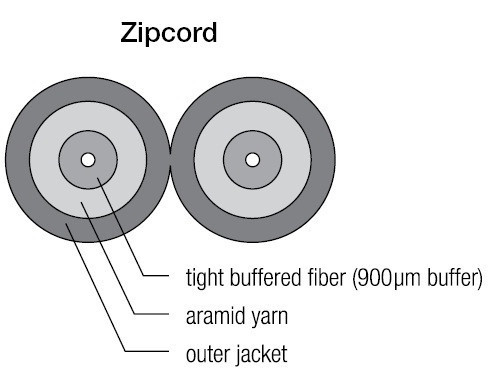

Zipcord bulk fiber optic cables are available to provide links to the future for such protocols as FDDI, OM3abit Ethernet, ATM, and Fibre Channel. Connections are easy to terminate with this flexible, two-fiber design.
AFL offers the broadest selection of duplex cordage including Plenum, Riser and LSZH in all diameters. LSZH jacketed cables are OFNR listed. One cable design for global companies that dont want to maintain multiple cable types for varying global standards. Compliant with Directive 2002/95/EC (RoHS).
Note: This item may require 24 hours for cut and prep before shipping.
- Cable Type:
- Zipcord
- Part #:
- Riser:
- ZA0026301001
- Fiber Count:
- 2
- Nominal Diameter:
- Inches: 0.11 x 0.22(2.9 x 6.0)
- Weight:
- Riser:
- Lbs/ 1000ft (kg/km): 10(15)
- Tension:
- Lbs (n):
- Installation: 239 (1063)
- Long Term: 119 (529)
- Bending Radius::::
- Inches (cm):
- Installation: 2.0 (5.0)
- Long Term: 1.2 (3.0)
- Temperature Range:
- Operating/ Installation: RISER: -20°C to+70°C
- Storage: -40°c to+75°c
Customized Features:
- Jacket stiffness and flexibility
- Diameter
- Print legend
- Jacket color
- Tight Buffer strippability (easy strip option allows removal of up to 1 meter of 900µm material without stripping the fibers 250µm coating)
- Ruggedized Duplex designs for transport from communications closet to wall outlet
Applications:
- Communications closet to wall outlet
- Wall outlet to desk
- Connectorized patchcords for intercon- nect and cross-connect applications
- Easy interface to ESCON®, FDDI, and various other duplex connectors
