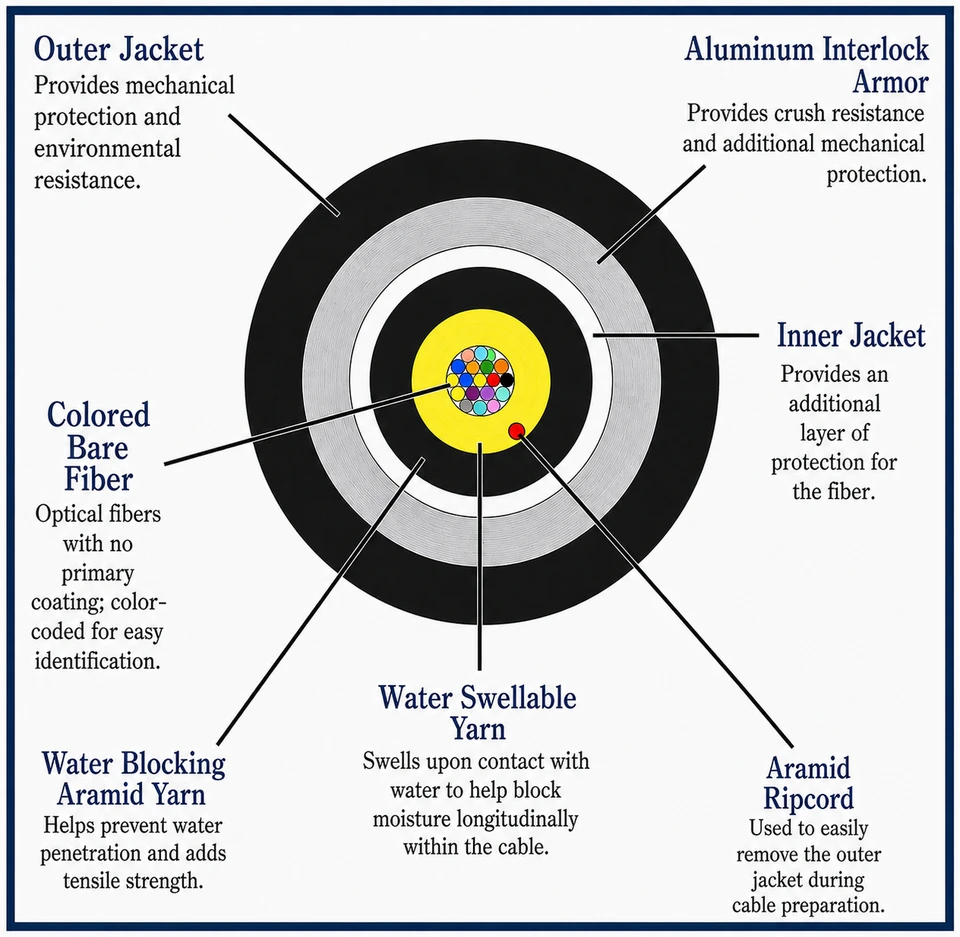

This TLC S09DL06CZNRxx25-AIA2 6 fiber Dry Loose Tube Aluminum Interlocking Armored cable consists of a PVC overall jacket, PVC inner jacket with a standard TLC 2 to 144 fiber Dry Loose Tube Indoor/Outdoor core cable (Ask your TLC representative for core cable specifications). The core cable is protected by a spirally-wrapped aluminum strip that offers easy installation and high crush resistance.
TLC Dry Loose Tube AIA Cable is available in 12 TIA standard colors or special-order colors. UL Listed OFCR cables are available, and unrated cables may be supplied to accommodate special needs. Standard surface print denotes construction, NEC rating, and fiber type, and includes footage markers. Custom print may also be accommodated.
This 6 fiber, single mode, armored interlocking dry loose tube cable is rated for an indoor/outdoor campus environment. It is Riser rated and jacketed in Black or Yellow with 13.0mm outside dimension.
FEATURES
- Glass Type: Corning® SMF-28® Ultra
- Provides superior crush resistance for added protection
- 2-144 Fiber count
- UL 1666(Riser) and UL1685 (FT4)
- Aluminum Interlocking provides superior crush resistance for added protection
- OFCR and OFCP ratings allow AIA products to be
installed throughout the facility - Meets the application requirement of National Electric Code (NEC) Article 770 and are OFNR - rated.
Applications
- Riser
- Duct
- Indoor/Outdoor
