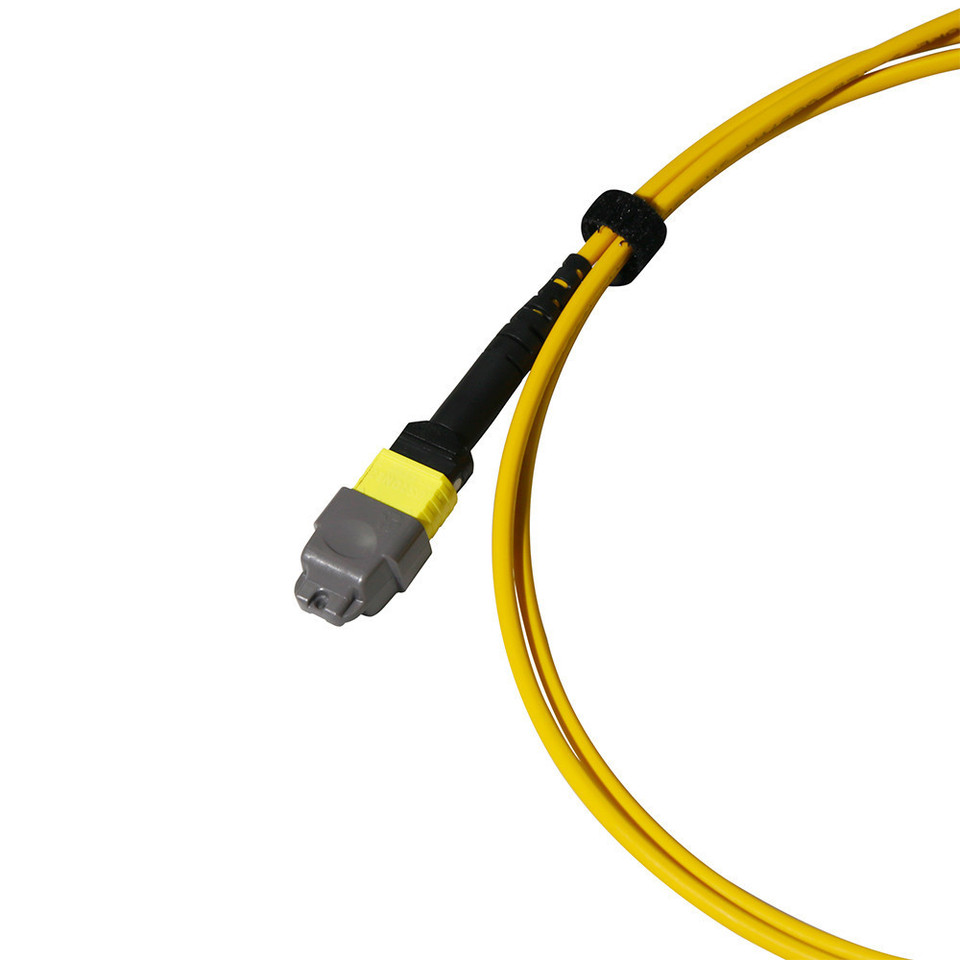

Breakout Cable, MTP® Elite/APC to CS, OS2 Singlemode 9/125 Micron, 8 Fiber

List Price: $117.98

$78.66

(You save $39.32 )

Description
Downloads

Description

MTP®/MPO Fanout Cable Assemblies

MTP® Elite Female to Senko CS Connector, 8 Strand, Corning G657A1 Singlemode 9/125 Micron, OFNP Yellow Jacket

MTP^® Connectors

US Conec offers a full suite of MTP^® brand MPO connectors and solutions for a variety of applications and operating environments. The MTP^® connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.

CS/UPC Connector

The Original CS® Standard connector design offers exceptional performance at an economical price. The CS is a Very Small Form Factor (VSFF) connector and is ideal for space-saving solutions. The CS connector allows you to double the density in patch panels compared to an LC duplex. It offers the ability to add more room for cable management as well as better airflow within a rack. The unique push-pull tab allows for better usability in high-density applications. The connector accepts up to 2.0/3.0mm duplex fiber. The connector has been adopted by QSFP-DD, OSFP, and COBO, Standardized by TIA.

Precision Optical Components

At the heart of every fiber to fiber and fiber to device interconnect is a precision optical interconnect component. US Conec is dedicated to driving the next generation of optical links from source to detector by utilizing state of the art precision component design, metrology and manufacturing to produce low loss, cost effective ferrules and optical components optimized with the entire link in mind. Sub-micron component modeling, design, production, measurement and testing are at the heart of US Conec’s engineering focused approach to solving real world communication problems every day.

Precision optical interconnect solutions include:

Low-loss, MT Elite® multi-fiber ferrules
Senko CS connector
FTTx hardened connector cabling infrastructure
MTP® brand MPO cable assemblies
Optical backplane connectivity for OBO architectures
Standards Compliance IEC 61754-5
Standards Compliance IEC 61754-7-1; 61754-7-2
Standards Compliance TIA 604-5

Specifications

Simplex 3.0mm cable
9/125um OS2 Corning G657A1 Glass
Plenum-Rated OFNP Yellow Jacket
8-Fiber count
Nominal Diameter: 3.0mm
40G DR4 (4X10G) 8 Fiber
40G FR4 2-10 Kilometer (4X10G) 8 Fiber
40G LR4 10-20 Kilometer (4X10G) 8 Fiber
40G ER4 40 Kilometer (4X10G) 8 Fiber
100G DR4 (4X25G) 8 Fiber
100G FR4 2-10 Kilometer (4X25G) 8 Fiber
100G LR4 10-20 Kilometer (4X25G) 8 Fiber
100G ER4 40 Kilometer (4X25G) 8 Fiber
200G DR4 500 Meter (4X100G) 8 Fiber
200G FR4 2-10 Kilometer (4X100G) 8 Fiber
200G LR4 10-20 Kilometer (4X100G) 8 Fiber
200G ER4 40 Kilometer (4X100G) 8 Fiber
400G DR4 (4X100G) 8 Fiber
400G FR4 2-10 Kilometer (4X100G) 8 Fiber
400G LR4 10-20 Kilometer (4X100G) 8 Fiber
400G ER4 40 Kilometer (4X100G) 8 Fiber
Bend Radius: 1.8in (Installation), 1.2in (Long-term)

Connector Side A	MTP/APC Elite Low Loss 8 Fiber	Connector Side B	(4) CS Connectors
Ferrule Type Side A		Ferrule Type Side B
Insertion Loss Maximum Side A	≤0.35dB	Insertion Loss Maximum Side B	≤0.20dB
Insertion Loss Typical	0.10dB	Insertion Loss Typical	0.08dB
Return Loss	≥60dB	Return Loss	≥60dB
===============	====================	==================	==================
Cable Type	OS2 9/125μm	Wavelength	1310/1550nm
Fiber Count	8	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Polarity	Type A, B & C available	Cable Outer Diameter	3.0mm
Cable Jacket	OFNP Plenum	Sub Unit Outer Diameter	N/A
Bend Radius, No Load	10x cable overall diameter	Bend Radius, Load	15x cable overall diameter
===============	====================	==================	==================
Wavelength	1 Gb Distance Max.	Wavelength	10 Gb Distance Max.
1310nm	> 25,000 Meters	1310nm	10,000 - 25,000 Meters
1550nm	> 40,000 Meters	1550nm	40,000 Meters
Operating Temperature	0° to 70°C (32° to 158°F)	Storage Temperature	-40° to 70°C (-40° to 158°F)
