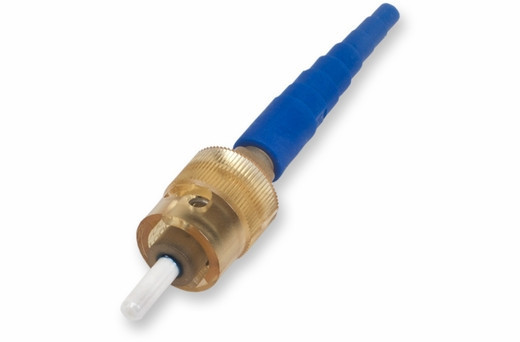

The UniCam® High-Performance Singlemode ST Connector from Corning Cable Systems gives you unmatched optical performance for your Singlemode applications with a fast, easy and economical termination solution. With this top-of-the-line connector, you can look forward to great performance with low insertion loss across a wide variety of applications.

Although having been around for many years, the ST connector is still sought out due to its reliable performance and cost-effectiveness, and Corning has optimized this connector style to meet even the most challenging of your network demands, from data processing to device termination.

UniCam® High-Performance Singlemode ST Fiber Connector Features:

• High-precision ceramic ferrule Singlemode connector
• Easy termination and installation
• Amber housing with blue colored boot
• For use in OS2 singlemode systems

Specifications:

• Intermateability: Connector is FOCIS compliant with TIA/EIA 604-2 (ST® Compatible)
• Qualification: Passed EIA/TIA 568-B.3
• Durability: 0.2 dB change, 500 rematings, FOTP-21
• Tensile Strength: 10 lb ≤ 0.2 dB change on jacketed cable; 0.5 lb ≤ 0.2 dB change on 900 μm cable; FOTP-6
• Operating Temperature: -40º to +75ºC, exceeding EIA/TIA 568-B.3
