CyberPower PR1500LCD | Smart App Sinewave UPS Series
Product Overview

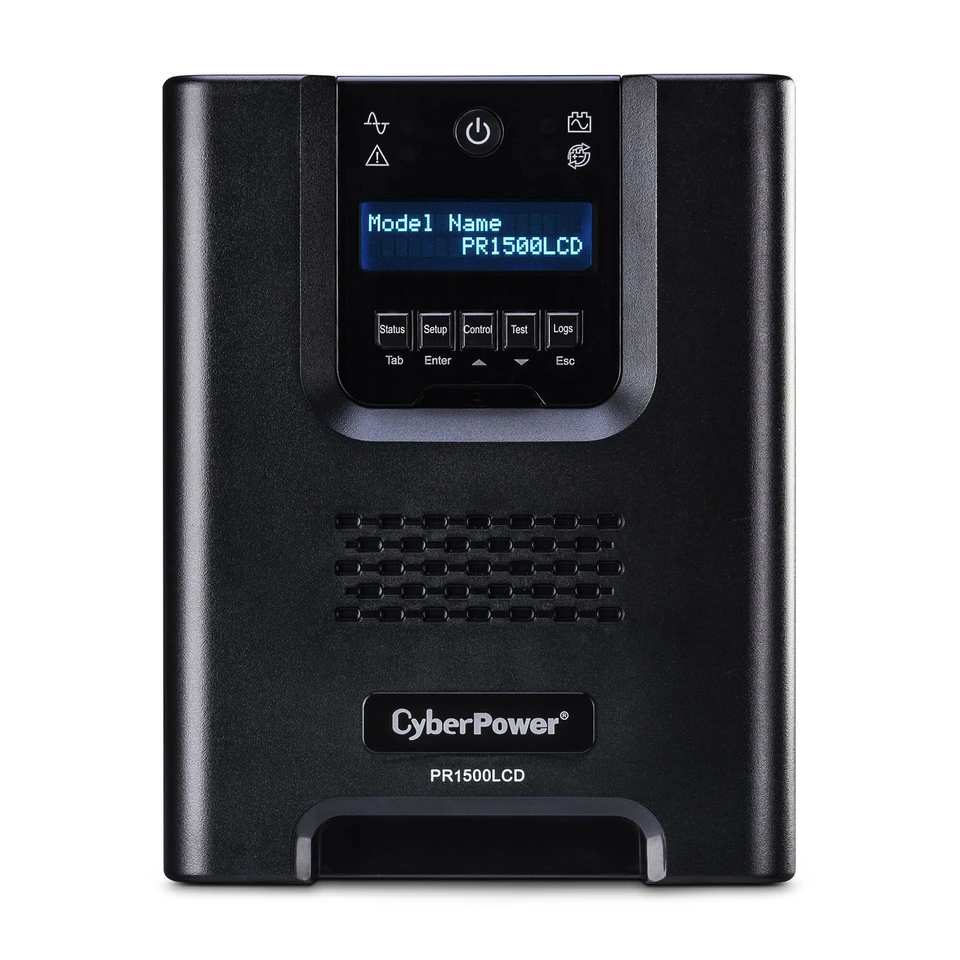

A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR1500LCD provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1500LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR1500LCD comes with a three-year warranty and a $375,000 Connected Equipment Guarantee.
- Battery BackupSupplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge ProtectionDiverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Line Interactive TopologyExists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation (AVR)Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
- Sine Wave OutputProvides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
- GreenPower UPS Bypass DesignIs a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

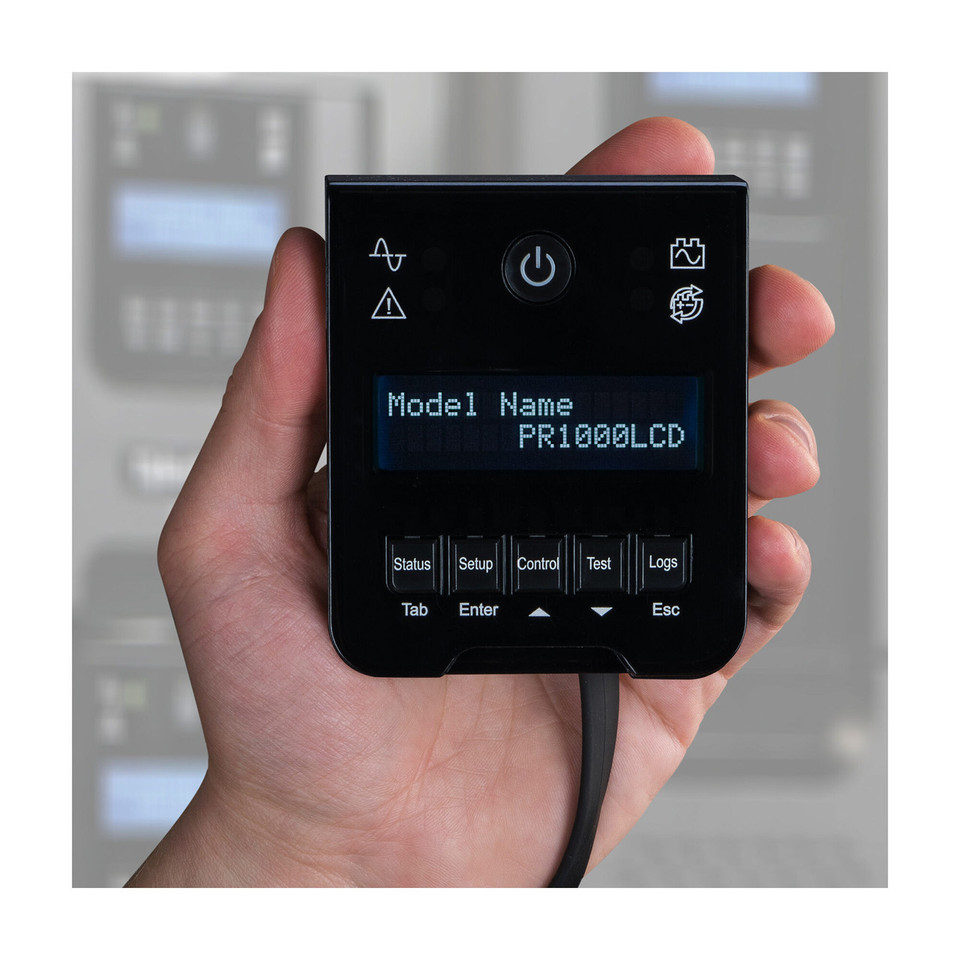

- Extendable LCD Control PanelCan be removed and relocated for easy viewing using the attached 4.5 ft. cable. This feature provides easy access to view status or change settings on the UPS when it’s installed in a hard to reach area such as the bottom of a rack, under a desk, in a crowed IT closet, or on the floor.
- PowerPanel® Business Edition SoftwareProvides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available here.
- Cisco CompatibleThis CyberPower UPS system is a Cisco EnergyWise compliant end device.
- Three-Year WarrantyCyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
What’s In The Box
UPS System, User Manual, Emergency Power Off Cable (gray), Serial Cable (DB-9), USB A+B Type Cable, Warranty Registration Card, and Function Setup Guide.
Product Details
- Capacity: 1500 VA / 1500 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120 VAC ± 5%
- Runtime (half/full): 15.1 minutes / 4.7 minutes
- Plug type & cord: NEMA 5-15P, 6 ft. cord
- Outlets: 8 surge + battery backup
- Outlet types: 8 × NEMA 5-15R
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Cisco compatible: Yes
- Remote management: Yes, with optional RMCARD205
- Environmental sensor: Yes, with optional RMCARD205 and ENVIROSENSOR
- Warranty: 3 year
- Connected Equipment Guarantee: $375,000
-
PR1500LCD | Smart App Sinewave UPS Series Protect corporate and network servers, telecom installations, and VoIP systems
General Specifications
UPS Topology Line Interactive Active PFC Compatible Yes Energy Saving GreenPower UPS™ Bypass Technology
Power
Capacity 1500 VA / 1500 W Output Power Factor 1.0 On Battery Voltage 120 VAC ± 5% On Battery Frequency 50/60 Hz ± 0.1 Hz On Battery Waveform Sine Wave Automatic Voltage Regulation Double Boost, Single Buck Typical Transfer Time 4 ms Overload Protection Internal Circuitry + Circuit Breaker
Input
Nominal Voltage 120 VAC Input Voltage Range 78 – 149 VAC Adjustable Voltage Range 75 – 154 VAC Input Frequency 50/60 Hz ± 3 Hz Plug Type NEMA 5-15P (Straight) Cord Length 6 ft Circuit Breaker 15A
Outlets
Total Outlets 8 (NEMA 5-15R) Battery & Surge Protected 8 Critical Load Outlets 4
Battery
Type Sealed Lead-Acid, 12V / 17Ah (x2) Runtime at Full Load 4.7 min Runtime at Half Load 15.1 min Recharge Time ~3 hours (Quick Charge) / ~8 hours (Eco Mode) Hot Swappable Yes User Replaceable Yes Replacement Cartridge RB12170X2A (qty: 1)
Surge Protection & Filtering
Surge Suppression 1,030 J
Management & Communications
Display Multifunction LCD (41 settings and status options) LED Indicators Power On, Online, On Battery, Wiring Fault, Replace Battery Audible Alarms On Battery, Low Battery, Overload, Fault, Replace Battery HID Compliant USB Port Yes Serial Port Yes EPO Port Yes Management Cable USB, Serial, EPO SNMP / HTTP Monitoring Yes — with optional RMCARD205 Software PowerPanel® Business Edition (free download)
Physical
Form Factor Mini-Tower Color Black Dimensions (W×H×D) 6.7 × 8.7 × 17.0 in (170 × 221 × 432 mm) Weight 54.0 lb (24.49 kg) Shipping Dimensions (W×H×D) 12.5 × 14.0 × 22.75 in Shipping Weight 60.6 lb (27.49 kg)
Environmental
Operating Temperature 32 – 104 °F (0 – 40 °C) Storage Temperature 5 – 113 °F (-15 – 45 °C) Operating Humidity 0 – 95% (non-condensing) Storage Humidity 0 – 95% (non-condensing) Operating Elevation Up to 10,000 ft (3,000 m) Storage Elevation Up to 50,000 ft (15,000 m)
Certifications
Safety UL1778, cUL 107.3, FCC DOC Class A Environmental RoHS Compliant
Warranty
Product Warranty 3-Year Limited Connected Equipment Guarantee $375,000 WARNING:
