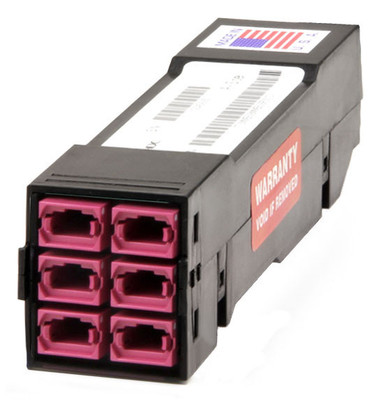

HD8² Cassette, 48 Strand, OM4, 4 Port MTP® Elite 12F (Male) Front to 2 Port MTP® Elite 24F (Male) Rear, Violet, Straight

click to zoom in

HD8² Cassette, 48 Strand, OM4, 4 Port MTP® Elite 12F (Male) Front to 2 Port MTP® Elite 24F (Male) Rear, Violet, Straight

Item#:
HDC-4MME412SE2M24
List Price: $590.60
$442.95
(You save $147.65 )
Availability:
Made To Order, Normal lead-time 7 - 10 days, after Drawing Approval
Weight:
0.20 LBS
Customer Service

Need Help?

Speak to one of our experts.

HDC-4MME412SE2M24 - HD8² Cassette, OM4, 4 Port MTP® Elite 12F (Male) Front to 2 Port MTP® Elite 24F (Male) Rear, Violet, Straight - Image 7

HD8² Cassette, 48 Strand, OM4, 4 Port MTP® Elite 12F (Male) Front to 2 Port MTP® Elite 24F (Male) Rear, Violet, Straight

List Price: $590.60
$442.95
(You save $147.65 )
HD8² Cassette, 48 Strand, Multimode OM4 50/125um, Front Panel includes 4 Port Aqua MTP® Elite 12 Fiber Male, Rear Panel includes 2 Port Aqua MTP® Elite 24 Fiber Male, Straight (Type A) Pinout

Product Specification:

Front Panel Connector
MTP/UPC Elite 12 Fiber Rear Panel Connector
MTP/UPC Elite 48 Fiber
Ferrule Type Front

MTP Ferrule Configuration, 1X12 - 1MTP Ferrule Configuration, 1X12 - 2

MTP Ferrule Configuration 1 x 12MTP Ferrule Configuration, 1X12 - 4

Ferrule Type Rear

MTP Ferrule Configuration, 1X24  - 1

MTP Ferrule Configuration, 1X24  - 2

Front Cassette Ports
4 Rear Cassette Ports
2
Insertion Loss Maximum Side A
≤0.35dB Insertion Loss Maximum Side B
≤0.35dB
Insertion Loss Typical
0.10dB Insertion Loss Typical
0.10dB
Return Loss ≥20dB Return Loss ≥20dB
===============
==================== ==================
==================
Cable Type
OM4 50/125μm Wavelength 850/1300nm
Fiber Count 48 Fiber Grade Corning ClearCurve Glass
Polarity Straight (Type A) Cable Outer Diameter 250um
Cable Jacket N/A Sub Unit Outer Diameter N/A
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
40 GbE Distance Max. 100 GbE Distance Max. 40G-SWDM4
100G-SWDM4
150 Meter 150 Meter 400 Meter 100 Meter
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)
