HD8² Cassette, 24 Strand, 9/125 OS2, MDC (12) Port, Blue Front to (2) Port MTP®/APC Elite 12F Rear, Male Green, Straight

HD8² Cassette, 24 Strand, 9/125 OS2, MDC (12) Port, Blue Front to (2) Port MTP®/APC Elite 12F Rear, Male Green, Straight

Item#:
HDC-9MDSE02SE2M12
List Price: $511.79
$462.47
(You save $49.32 )
Availability:
Made To Order, Normal lead-time 7 - 10 days, after Drawing Approval
Weight:
0.20 LBS
Customer Service

Need Help?

Speak to one of our experts.

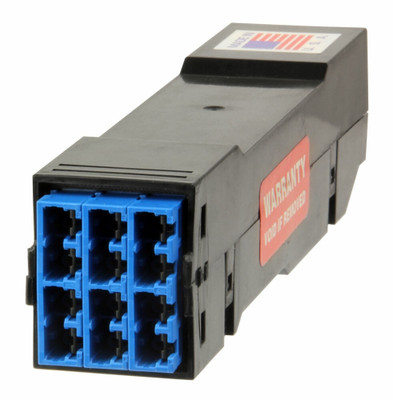

HDC-9MDSE02SE2M12 - HD8² Cassette, 9/125 OS2, MDC (12) Port, Blue Front to (2) Port MTP®/APC Elite 12F Rear, Male Green, Straight - Image 3

HD8² Cassette, 24 Strand, 9/125 OS2, MDC (12) Port, Blue Front to (2) Port MTP®/APC Elite 12F Rear, Male Green, Straight

List Price: $511.79
$462.47
(You save $49.32 )
HD8² High Density Cassette, 24 Strand, Singlemode 9/125 OS2, Front Panel includes 12-Port / 2-fiber Blue MDC/UPC connectors, Rear Panel includes 2-Port MTP/APC Elite 12 Fiber Rear, Male Green, Straight (Type A) Pinout

Product Specification:
Cassette Front
MDC/UPC Cassette Rear
MTP/APC 12 Fiber Elite Low Loss
Ferrule Type Side A
1.25mm Ferrule Type Side B
MTP Ferrule Configuration 1 x 12MTP Ferrule Configuration 1 x 12
Port Count
12 Port Count
2
Insertion Loss Maximum Side A
≤0.20dB Insertion Loss Maximum Side B
≤0.35dB
Insertion Loss Typical
0.08dB Insertion Loss Typical
0.10dB
Return Loss ≥60dB Return Loss ≥60dB
===============
==================== ==================
==================
Cable Type
OS2 9/125μm Wavelength 1310/1550nm
Fiber Count 24 Fiber Grade G.657.A1 (Compatible with G.652.D)
Polarity Straigh (Type A) Cable Outer Diameter 900um
Cable Jacket PVC Sub Unit Outer Diameter N/A
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
Wavelength
1 Gb Distance Max.
Wavelength
10 Gb Distance Max.
1310nm > 25,000 Meters 1310nm 10,000 - 25,000 Meters
1550nm > 40,000 Meters 1550nm 40,000 Meters
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)

*The HD8² takes advantage of the US Conec MDC connectors which is a two fiber connector manufactured with proven 1.25mm ferrule technology used in industry standard LC connectors. Two port MDC adapters fit directly into standard panel openings for duplex LC adapters, increasing fiber density by a factor of two. Supporting port breakout architectures for emerging transceiver MSAs, the smaller size will allow a single array transceiver to accept multiple MDC patch cables, which are individually accessible directly at the transceiver interface. The new format will support four individual MDC cables in a QSFP footprint and two individual MDC cables in an SFP footprint.
