HD8² Cassette, 12 Strand, 50/125 OM5, LC/UPC Shuttered (6) Port, Lime Duplex, Front to (1) Port MTP® Elite/UPC 12 Fiber Rear, Male Lime, Straight

click to zoom in

HD8² Cassette, 12 Strand, 50/125 OM5, LC/UPC Shuttered (6) Port, Lime Duplex, Front to (1) Port MTP® Elite/UPC 12 Fiber Rear, Male Lime, Straight

Item#:
HDC-5LSM602SE1M12

Call or Email for Pricing & Availability! 866-678-5852 or email Sales2@CablesPlusUSA.com

Availability:
Made To Order, OM5 Cable currently is Special Order, Lead-Time and MOQ apply
Weight:
0.20 LBS
Customer Service

Need Help?

Speak to one of our experts.

HDC-5LSM602SE1M12 - HD8² Cassette, 50/125 OM5, LC/UPC Shuttered (6) Port, Lime Duplex, Front to (1) Port MTP® Elite/UPC 12 Fiber Rear, Male Lime, Straight

HD8² Cassette, 12 Strand, 50/125 OM5, LC/UPC Shuttered (6) Port, Lime Duplex, Front to (1) Port MTP® Elite/UPC 12 Fiber Rear, Male Lime, Straight

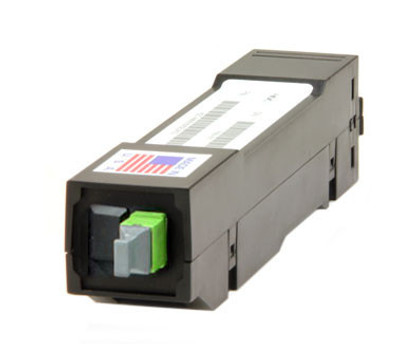

High Density Cassette, 12 Strand, Multimode 50/125 OM5, Front Panel includes 6 Port/12 Fiber Lime Green LC/UPC Shuttered connectors, Rear Panel includes 1-Port Lime Green MTP Elite 12 connectors, Straight (Type A) Pinout

Product Specification:
Connector Side A
LC/UPC Connector Side B
MTP/UPC Elite Low Loss 12 Fiber
Front Panel Ports
6 rear Panel Ports
1
Insertion Loss Maximum Side A
≤0.20dB Insertion Loss Maximum Side B
≤0.35dB
Insertion Loss Typical
0.08dB Insertion Loss Typical
0.10dB
Return Loss ≥20dB Return Loss ≥20dB
===============
==================== ==================
==================
Cable Type
OM5 50/125μm Wavelength 850/953/1300nm
Fiber Count 12 Fiber Grade Corning ClearCurve Wide Band Glass
Polarity Rollover (Type B) Cable Outer Diameter 900um
Cable Jacket PVC Sub Unit Outer Diameter N/A
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
40 GbE Distance Max. 100 GbE Distance Max. 40G-SWDM4 100G-SWDM4
150 Meter 150 Meter 500 MEter 150 Meters
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)
