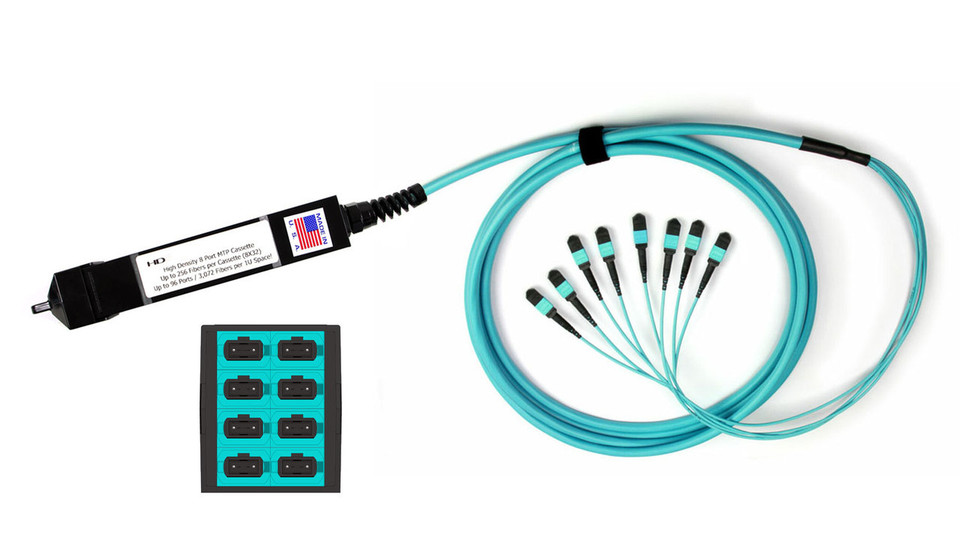

HDReadyPull® Cassette to MTP Fanout, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover

click to zoom in

HDReadyPull® Cassette to MTP Fanout, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover

Item#:
R3MME824MME824R10010
List Price: $1,317.60
$988.20
(You save $329.40 )
Availability:
Made To Order, Normal lead-time 7 - 10 days, after Drawing Approval

Weight:

1.00 LBS

Minimum Qty:  10 ft
Total Footage: 10 ft
Additional Feet:
x 10.82 per/ft
Recalculate
Customer Service

Need Help?

Speak to one of our experts.

HDReadyPull® Cassette to MTP Fanout, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 18

HDReadyPull® Cassette to MTP Fanout, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover

List Price: $1,317.60
$988.20
(You save $329.40 )

HDReadyPull® Cassette to MTP Fanout, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover

List Price: $1,317.60
$988.20
(You save $329.40 )

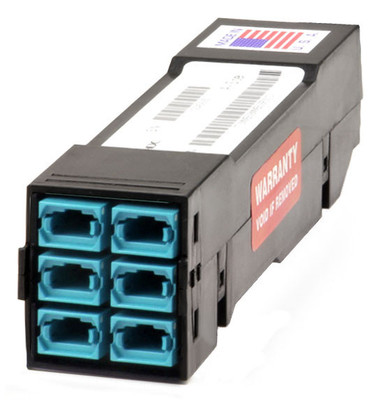

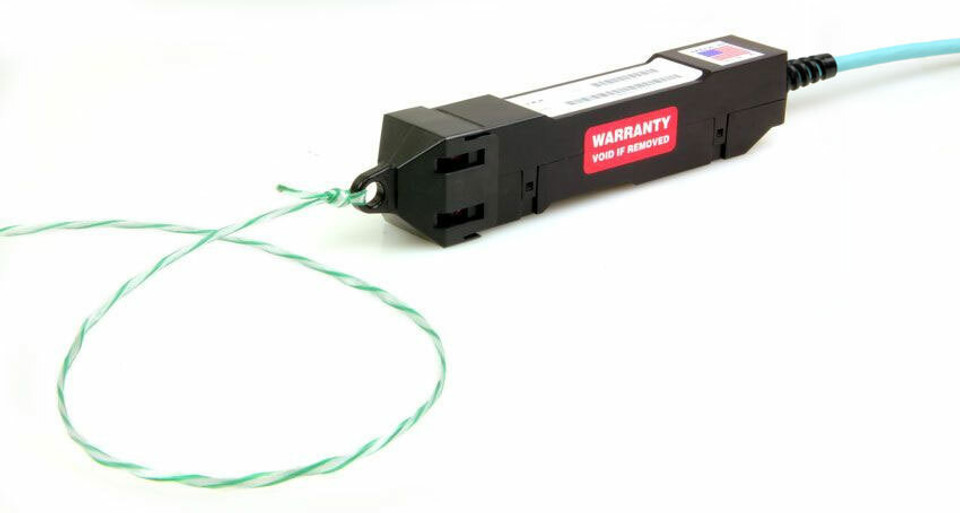

Our HD8² High Density Fiber Optic Patching system is specifically designed for ease of installation and economy of space. The smaller square cassette utilized in our design, versus the typical flat wide cassette, lends itself to a smaller profile. The cassettes come with a snap on pulling eye cap. The pulling eye cap snaps onto the front of the cassette and acts as both a pulling eye and a cover to protect the internal connectors. This design simplifies the installation process of pre-terminated trunked cassettes and as a result can reduce dB loss by reducing the number of termination points throughout the cabling design. Older style designs are cumbersome and either do not allow for pre-termination or, if they are pre-terminated cassettes, they are too large to pull through existing infrastructure.

Product Specification: HD8² HDReadyPull®, 192 Strand 50/125 OM3, Cassette to MTP Fanout, 8-Port MTP®/UPC Elite 24 Fiber Male to 8-Port MTP®/UPC Elite 24 Fiber Male, Rollover (Type B), With integrated HDReadyPull® Pulling Eye

Connector Side A
MTP/UPC Elite Low Loss 24 Fiber Connector Side B
MTP/UPC Elite Low Loss 24 Fiber
Ferrule Type Side A

HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 3HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 4

HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 5HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 6

HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 7HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 8

HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 9HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 10

Ferrule Type Side B

HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 11HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 12

HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 13HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 14

HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 15HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 16

HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 17HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM3, (8) Port MTP® Elite 24F (Male) to (8) Port MTP® Elite 24F (Male), 192 Strand, Rollover - Image 18

Ports Side A
8 Ports Side B
8
Insertion Loss Maximum Side A
≤0.35dB Insertion Loss Maximum Side B
≤0.35dB
Insertion Loss Typical
0.10dB Insertion Loss Typical
0.10dB
Return Loss ≥20dB Return Loss ≥20dB
===============
==================== ==================
==================
Cable Type
OM3 50/125μm Wavelength 850/1300nm
Fiber Count 192 Fiber Grade Corning ClearCurve Glass
Polarity Rollover (Type B) Cable Outer Diameter 12.9mm
Cable Jacket OFNP Plenum Sub Unit Outer Diameter 2.0mm
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
1 GbE Distance Max. 10 GbE Distance Max. 40 GbE Distance Max. 100 GbE Distance Max.
1,100 Meters 300 Meter 100 Meter 100 Meter
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)

BENEFITS

  • Reduced installation time with integrated pulling eye - 75-85% time savings
  • Space savings of up to 100% per cassette over traditional MTP/MPO cassettes

TRUNK CABLE FEATURES

  • Made in USA and TAA compliant
  • REACH & RoHS 2 compliant
  • MM OM1, OM2, OM3, OM4, OM5 & SM OS2
  • Bend-insensitive optical fibers
  • 250 micron loose tube design allows for higher fiber strand counts in a smaller overall diameter cable
  • Flexible and easy to handle Lightweight, flexible aramid yarns enhance strength
  • When necessary, colorcoded binders separate fiber strands into bundles of 12
  • 100% interferometry reports
  • 100% visual inspection reports
  • Total link test testing and labeling available at additional cost

TRUNK CABLE JACKET & GLASS OPTIONS

  • Yellow: OS2
  • Orange: *OM1 & *OM2 (*MOQ and not available in BIF glass)
  • Aqua: OM3, OM4, OM5
  • Note: Erika Violet for OM4 and Lime Green OM5 is available MOQ and leadtime may apply

TRUNK CABLE APPLICATIONS

  • Applications include: 10G, 40G, 100G and 400G Ethernet, fiber channel, video, security and automation

TRUNK CABLE STANDARDS

  • TIA/EIA-568-C.3
  • ISO/IEC 11801, 2nd edition
  • Telcordia GR-409-CORE
  • OS2 glass is compliant to ITU-T G.657.A1
