DIGITAL VIDEO CAMERA EYEPIECE FOR FIBERSAFE MICROSCOPE OPT684A
This Video Image Capture Camera is an inexpensive 5.1 Mpixel digital camera used to capture and store images for all models of FiberSafe Microscopes,

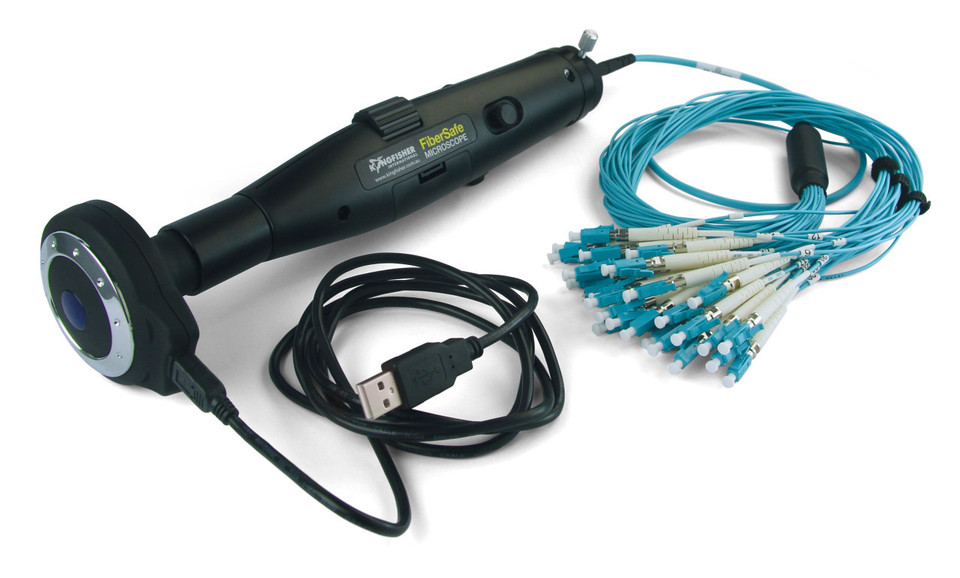

On our KI6610 series microscopes, the user can easily swap the eyepiece for any image capture device that fits a standard 23.2 mm eyepiece mount.
This camera connects to a computer USB port, for easy video or image storage and retrieval. This unit has some easy to use software.

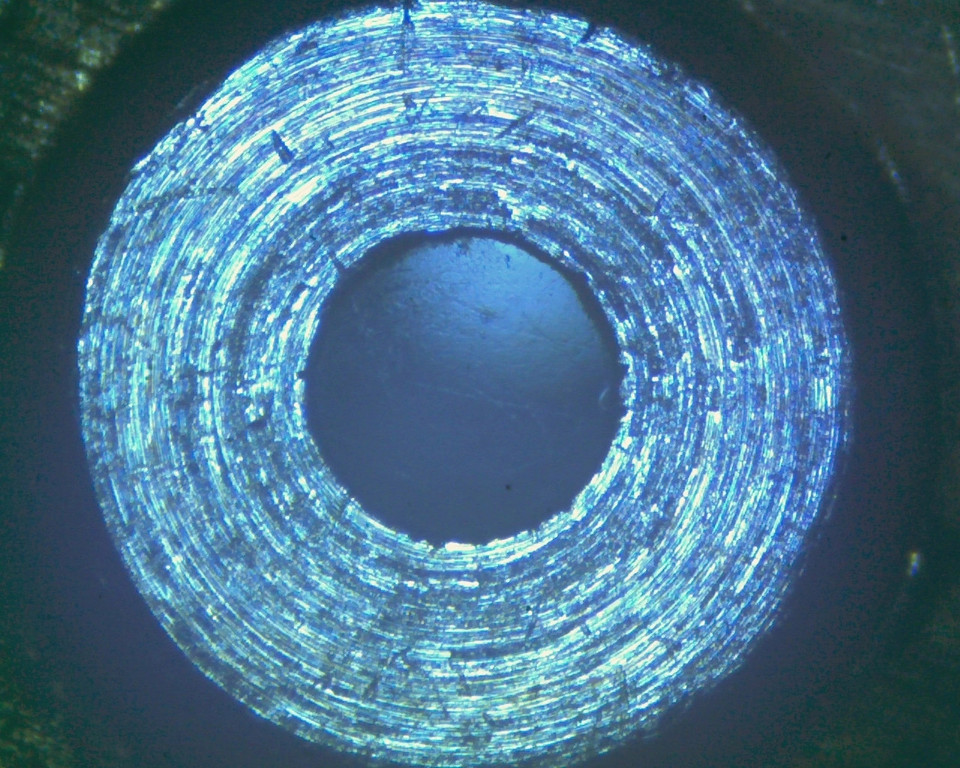

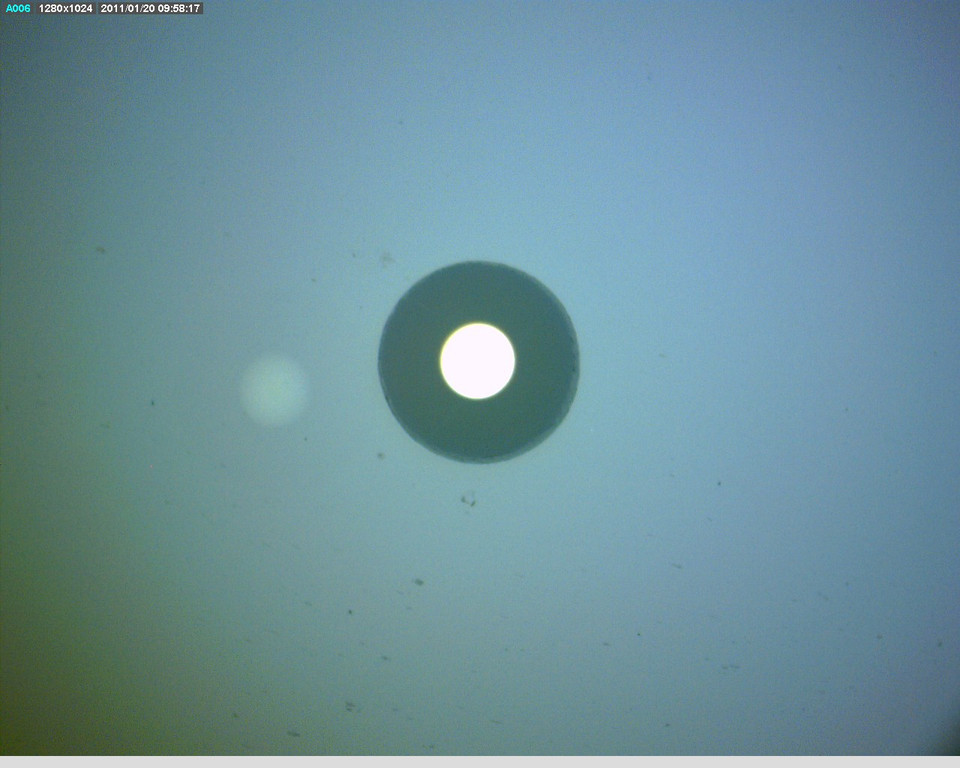

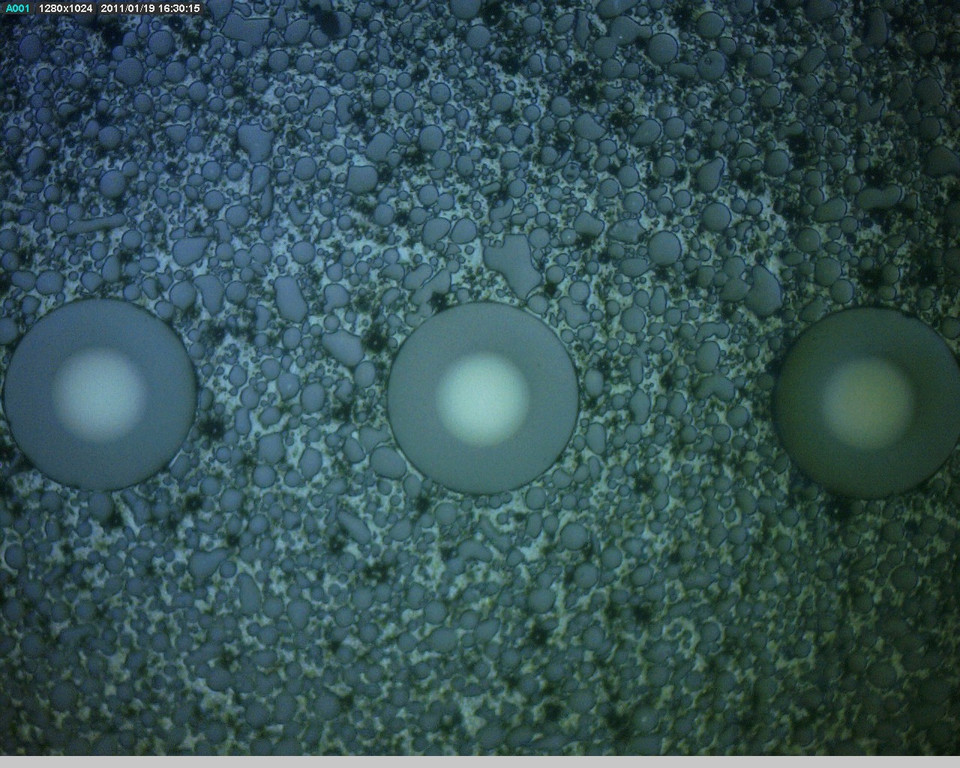

See sample images in gallery.
OPT684A specifications
| Capture Mode | Picture and Video |
| Active pixels | 5.1 Mpixel (1280*1024) |
| Responsivity | 1.0V/ lux-sec |
| Dynamic Range | 71 dB |
| S/N Ratio | 44 dB |
| Spectral Range | 400-650 nm (with IR-filter) |
| Frame Rate | 17 fps@1280*1024 |
| Exposure | ERS or Manual |
| Power Consumption | 190 mW |
| Eyepiece Adapter Size | 23.2 mm, 30.0 mm |
| Power Supply | Via USB |
| Weight | 0.09 kg |
| USB cable type | Mini-A, USB2, 1.5 meter |
| Software functions | Image & video Capture, Edit and Management |
| Software compatibility | 32bit and 64bit, XP, Vista, win7, Win8, Win10, Mac, Linux |
| Language of software | English, French, German, Spanish, Japanese, Chinese, Russian |
