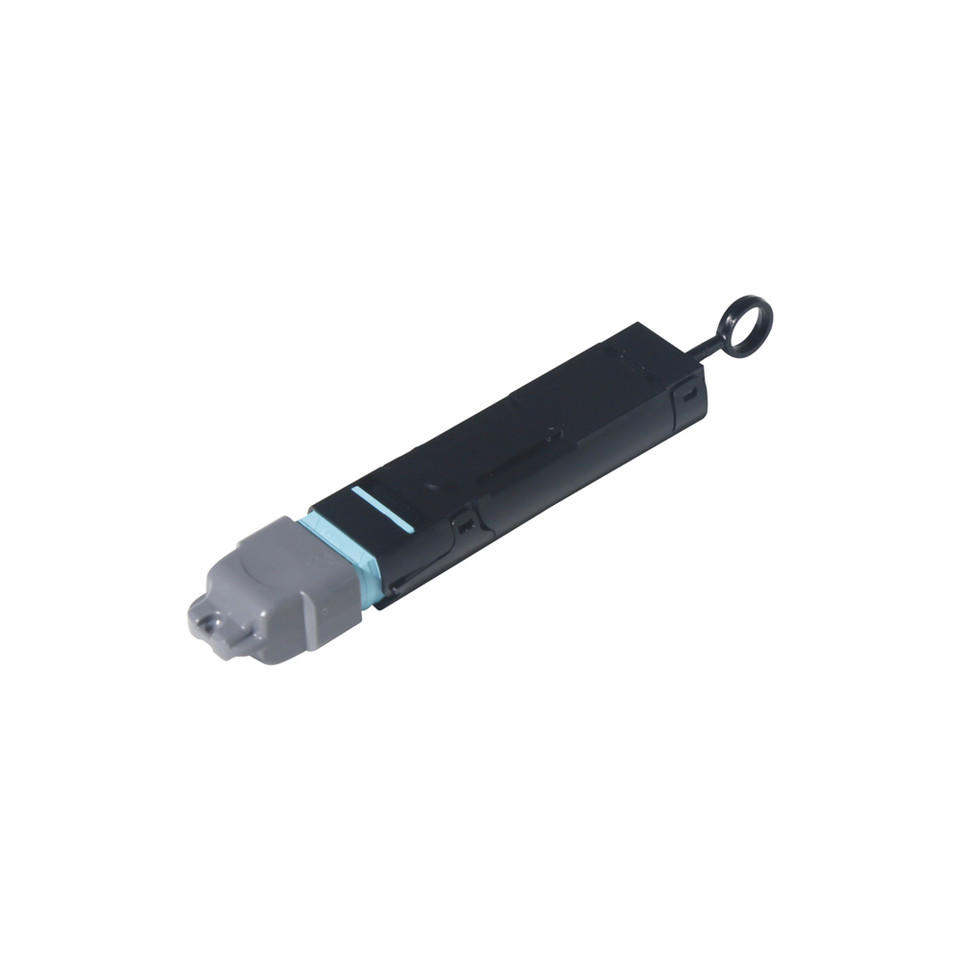

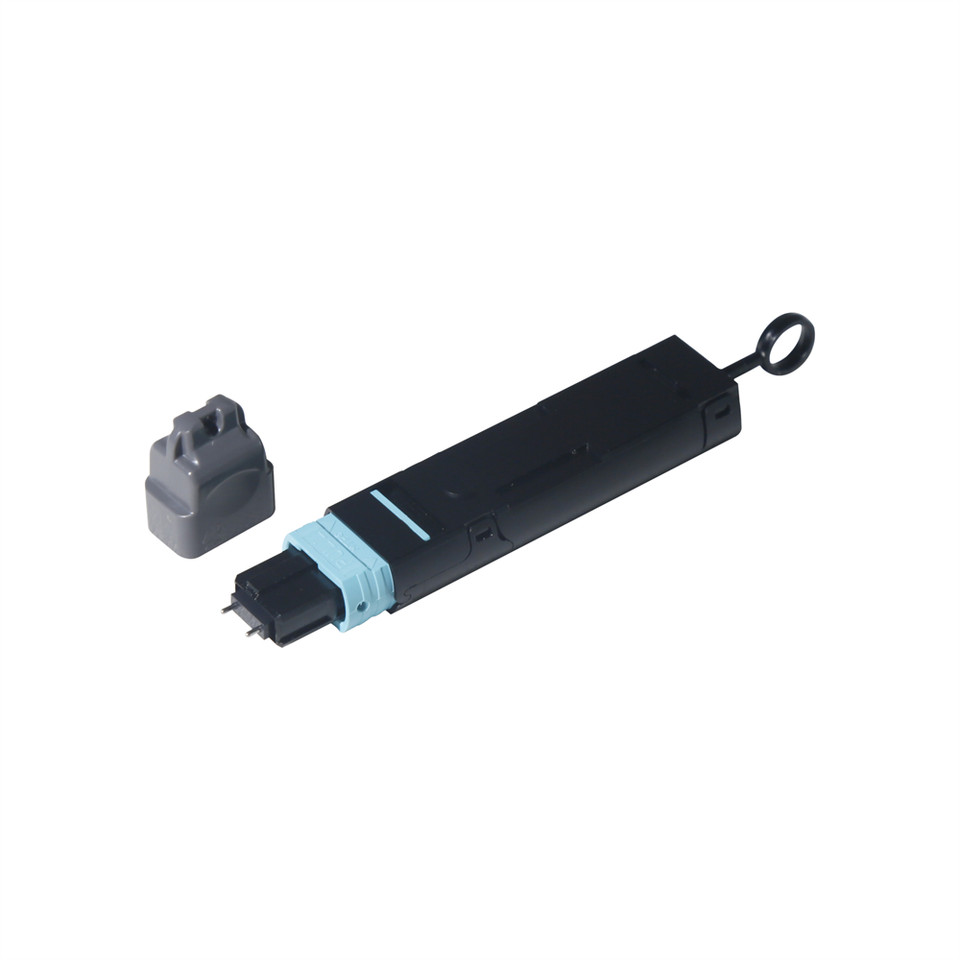

Loopback, MTP® Elite/UPC, 24 Fiber, MultiMode 50/125 OM3, Plastic Hard Body

As demand for testing in 100G/200G fiber optic applications continues to grow, MTP 100G/200G Multimode OM3 Fiber Optic Loopback is offered as a viable tool. Enjoy fast, efficient testing of 100G/200G optical network segments in 24-fiber MTP applications.

The Loopback works by taking connections from the transmit (Tx) paths in optical links to the receive (Rx) paths, and "looping" them back. It can be used for networking hardware with MPO interfaces, such as MTP cassettes and patch panels.

The MTP brand MPO connector interface provides the best possible insertion loss testing performance quality in all fiber optics applications. The push-pull design allows for easy operation.

Male and female connector types are available. Choose between a standard or 'Elite' ferrule style to minimize insertion loss.

MTP 100G/200G Multimode OM3 Loopback Features

• For use in 100Gb/200Gb optical testing, quality control, parallel optics, and Infiniband
• MTP brand MPO connector features superior optical and mechanical quality
• Easy insertion and extraction with push-pull design
• Designed for testing Multimode OM3 fiber optics applications
