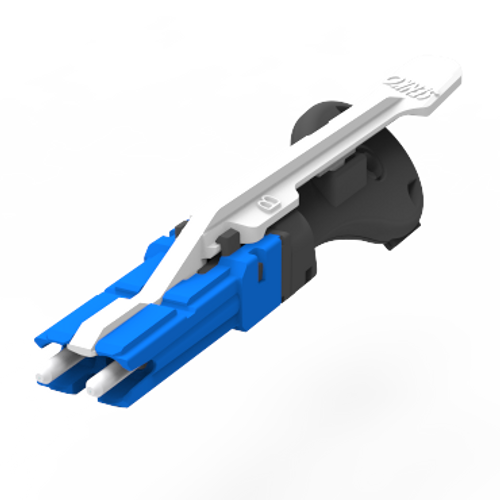

Loopback, SN Connector, SM, UPC Polish, Blue Housing, (0 dB to 10dB)
SENKO’S SN® Loopback is designed to provide a media of return patch for a fiber optic signal. Commonly used for burn-in testing and network troubleshooting, the high density push-pull tab design will fit into may applications.
- High Density Design
- UPC and APC polish
- Attenuation levels from 1-10dB
- Push-Pull tab for easy installation
| Part Number | Attenuation Level | Attenuation Range |
| LPB-SN-SA-00 | 0 dB | 0 dB |
| LPB-SN-SA-03 | 3 dB | +/- 0.5 dB |
| LPB-SN-SA-05 | 5 dB | +/- 0.5 dB |
| LPB-SN-SA-06 | 6 dB | +/- 1.0 dB |
| LPB-SN-SA-07 | 7 dB | +/- 1.0 dB |
| LPB-SN-SA-08 | 8 dB | +/- 1.0 dB |
| LPB-SN-SA-09 | 9 dB | +/- 1.0 dB |
| LPB-SN-SA-10 | 10 dB | +/- 1.0 dB |
